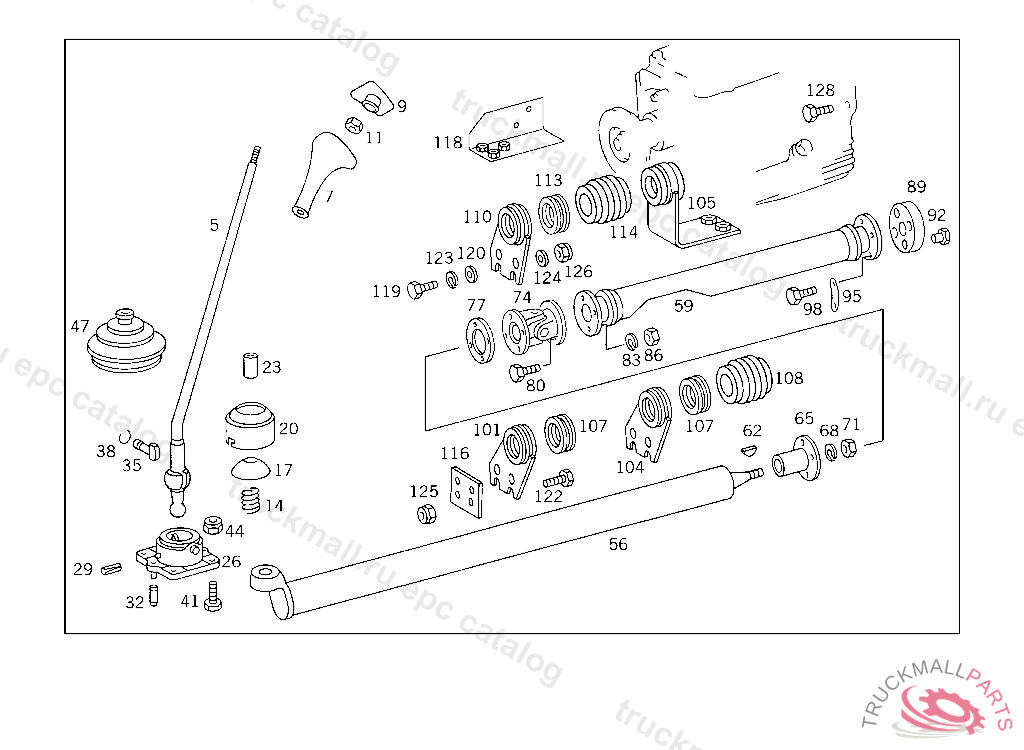

Поз.
Артикул
Описание
5
SHIFT LEVER
7
KNOB
7
SHIFT LEVER KNOB
9
COVER FIVE-SPEED, SHIFT LEVER KNOB
11
HEX. NUT. NUT SHIFT LEVER KNOB
14
SPRING SHIFT CASE,BOTTOM
17
SPHERICAL PIECE GEARSHIFT LEVER LOWER PART,D 203092
20
COVER SHIFTING DOME TO TRANSMISSION CASE,TOP
23
HOSE
26
TRANSMISSION CASE COVER , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
29
GROOVED PIN SHIFTING DOME,4 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
32
CYLINDER PIN. CYLINDRICAL PIN , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
35
SLIDING BLOCK
35
SLIDING BLOCK , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
38
SNAP RING , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
41
SCREW MOUNTING CLAMP TO BRACKET AND TO FRAME
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
47
BOOT
56
SHIFTING ROD FRONT 7640 MM
59
SHIFTING ROD , 390.001,031 A 099200 390.002,032 A 099381 390.012 A 099417 390.013 A 099300
62
WOODRUFF KEY FLANGE TO SHIFTING TUBE
65
CONNECTOR FLANGE TO SHIFTING TUBE
68
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
71
NUT STRAP TO SUPPORT,5 149419
74
JOINT REAR SHIFTING ROD
74
JOINT REAR SHIFTING ROD
77
SPACER WASHER5 MM
77
SPACER WASHER3 MM
77
SPACER WASHER2 MM
80
SCREW SHIFTING TUBE TO TRANSMISSION
83
LOCK WASHER RAIL TO BATTERY SUPPORT
86
NUT BATTERY CASE
89
CONNECTOR FRONT SHIFTING ROD TO REAR SHIFTING ROD
92
BUSHING
95
LOCK FRONT SHIFTING ROD TO REAR SHIFTING ROD
98
SCREW SHIFTING TUBE TO TRANSMISSION
101
GUIDE , Replaced By: A3902608384
101
GUIDE FOR CROSS MEMBER NO.4,6
104
GUIDE FOR CROSS MEMBER NO.5/NO.7
104
GUIDE FOR CROSS MEMBER NO.6,8
105
GUIDE FOR CROSS MEMBER NO.10
105
GUIDE , Replaced By: A3902608584
107
BUSHING
108
BOOT SHIFTING ROD BEARING NO. 3+4
114
BOOT SHIFTING ROD BEARING NO. 3+4
116
BRACKET SHIFTING TUBE
116
BRACKET SHIFTING TUBE
118
BRACKET FOR CROSS MEMBER NO.10
119
SCREW HAND PUMP TO BRACKET
119
SCREW , Replaced By: N304017010002
120
WASHER CONSOLE TO REAR CROSS MEMBER,5 751724
122
SCREW , Replaced By: N304017008027
123
LOCK WASHER , Replaced By: N912004010102
124
WASHER GROUND CABLE
125
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
126
NUT , Replaced By: N910113010000
128
SCREW BRACKET TO RIGHT SIDE MEMBER
