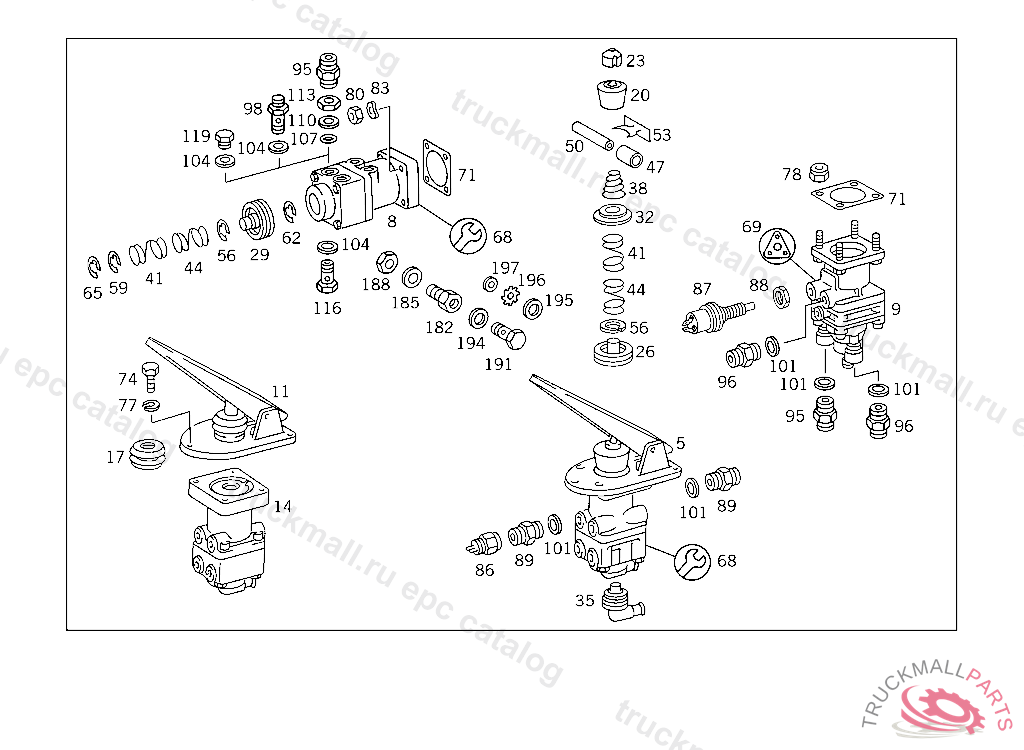

Поз.
Артикул
Описание
8
BRAKE VALVE SERVICE BRAKE KNORR
8
BRAKE VALVE SERVICE BRAKE WABCO
26
PISTONTO 345 431 70 05
29
PISTONTO 345 431 71 05
41
SPRINGTO 345 431 70 05
44
SPRINGTO 345 431 71 05
44
SPRINGTO 345 431 70 05
56
LOCKTO 345 431 70 05
56
LOCK RINGTO 345 431 71 05
59
LOCK RINGTO 345 431 71 05
62
LOCK RING
65
LOCK RING PLANETARY CARRIER
68
REPAIR KIT LARGE SCOPE TO 345 431 70 05
68
REPAIR KIT SMALL SCOPE TO 345 431 71 05
68
REPAIR KIT SMALL SCOPE TO 345 431 70 05
68
REPAIR KIT , Replaced By: A0014300460
71
GASKET BRAKE SHOE WITH LINING
80
NUT BATTERY CASE
83
SPRING WASHER BRAKE SHOE WITH LINING
86
SWITCH TWO-CIRCUIT BRAKE VALVE
86
SWITCH EXHAUST BRAKE,K 251255
95
FITTING TWO-WAY VALVE,CONNECTION: "2"
98
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
104
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
107
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
110
THRUST RING LOCKING VALVE
113
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
116
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
119
SCREW PLUG
182
ADAPTER FITTING , Replaced By: A0004296934
