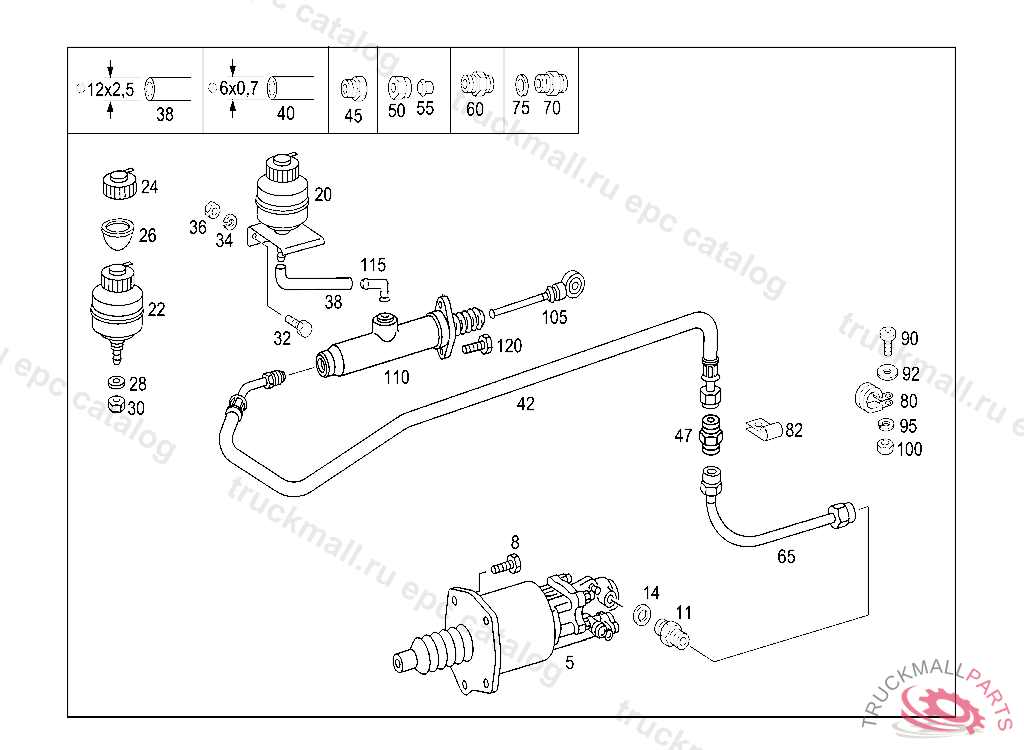

Поз.
Артикул
Описание
5
CLUTCH BOOSTER CLUTCH ACTUATION WABCO
8
SCREW PIPE CLAMP
11
FITTING BRAKE POWER REGULATOR,CONNECTIONS: "2"
14
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
20
RESERVOIR , Replaced By: A3504317102
22
RESERVOIR WITH LOCKING CAP
24
FILLER CAP
26
STRAINER
28
WASHER
30
NUT CONTROL ARM TO REAR AXLE
32
SCREW
34
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
36
NUT SPRING-LOADED PUSH ROD
38
HOSE FROM RESERVOIR TO MASTER CYLINDER
40
LINE FROM PRESSURE REGULATOR TO T-FITTING 6X0.7 MM, ORDER BY THE METER
42
HOSE CLUTCH LINE
45
FITTING LINE MOUNTING
47
FITTING , Replaced By: A0039979972
50
UNION NUT
55
SEAL CONE
60
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
65
HOSE CLUTCH HOSE
70
FITTING DOUBLE FITTING,012797
75
SEAL RINGTO 000 553 03 05,000 553 18 05,
80
CLAMP LINE MOUNTING
80
CLAMP LINE MOUNTING
82
CLAMP DELIVERY AND SUCTION LINES TO STEERING
90
SCREW LICENSE PLATE TO BRACKET
90
HEXALOBULAR BOLT GROUND LINE TO GRID HEATER M6X25
90
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
90
SCREW ELECTRICAL COMPARTMENT
92
WASHER COMPRESSED AIR LINE TO BRACKET
95
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
95
LOCK WASHER CABLE TO FUSE BOX
100
NUT SPRING-LOADED PUSH ROD
105
ROD CLUTCH MASTER CYLINDER TO CLUTCH PEDAL,D 561821
105
ROD CLUTCH MASTER CYLINDER TO CLUTCH PEDAL,D 561821
110
MASTER CYLINDER CLUTCH M14X1,D 561822
115
INTERMEDIATE PIECE , Replaced By: A0002950036
120
SCREW AT FILTER BRACKET
