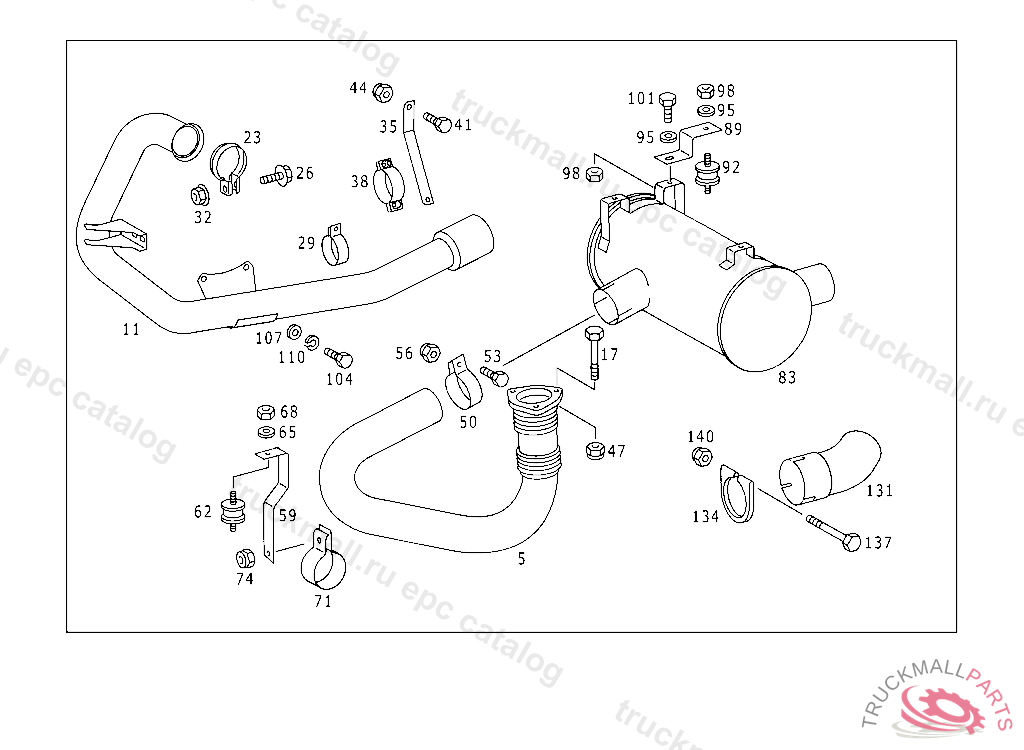

Поз.
Артикул
Описание
5
EXHAUST PIPE
17
SCREW , Replaced By: N000961012184
47
NUT EXHAUST PIPE TO EXHAUST MANIFOLD
50
CLAMP INTERMEDIATE PIECE
53
SCREW , Replaced By: N304017010040
56
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
59
BRACKET FRONT EXHAUST PIPE
62
RUBBER MOUNTING
65
WASHER GROUND CABLE
68
NUT BRACKET TO RETARDER
71
CLAMP FRONT EXHAUST PIPE TO BRACKET
74
NUT , Replaced By: N910113010000
83
EXHAUST MUFFLER WITH PIPE
89
BRACKET
92
RUBBER MOUNTING
95
WASHER GROUND CABLE
98
NUT BRACKET TO RETARDER
101
SCREW , Replaced By: N304017010040
131
EXHAUST PIPE
134
CLAMP REAR EXHAUST PIPE TO MUFFLER,B 884220
137
SCREW REAR EXHAUST PIPE TO MUFFLER M 10X140,B 884220
140
NUT , Replaced By: N910113010004
