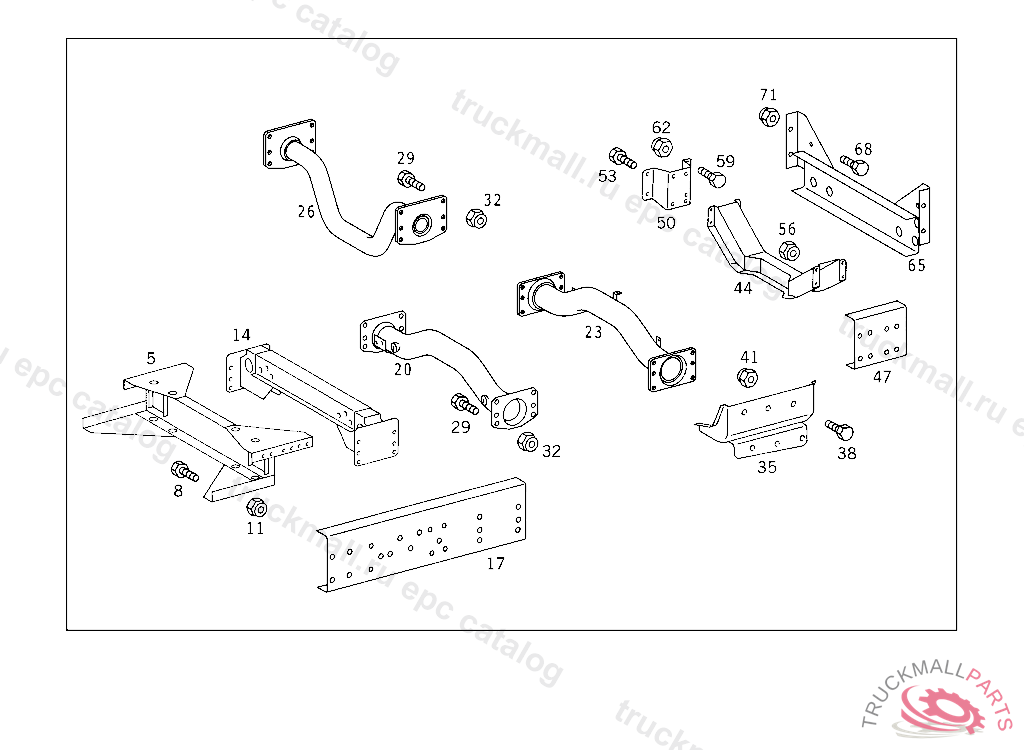

Поз.
Артикул
Описание
5
CROSS MEMBERNO.8
8
SCREW BATTERY CASE TO SIDE MEMBER
11
NUT , Replaced By: N910113014000
14
CROSS MEMBERNO.9
17
REINFORCEMENT LEFT
17
REINFORCEMENT RIGHT
20
CROSS MEMBERNO.10
23
CROSS MEMBERNO.11
29
SCREW BATTERY CASE TO SIDE MEMBER
32
NUT , Replaced By: N910113014000
35
CONSOLE RIGHT
35
CONSOLE LEFT
38
SCREW BRACKET TO FRAME
41
NUT , Replaced By: N910113014000
44
ENGINE CROSS MEMBER FRONT
47
TRUSS RIGHT
47
TRUSS LEFT
50
BRACKET LEFT
50
BRACKET RIGHT
53
SCREW BATTERY CASE
56
NUT , Replaced By: N910113014000
59
SCREW BRACKET TO REAR CROSS MEMBER
62
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
