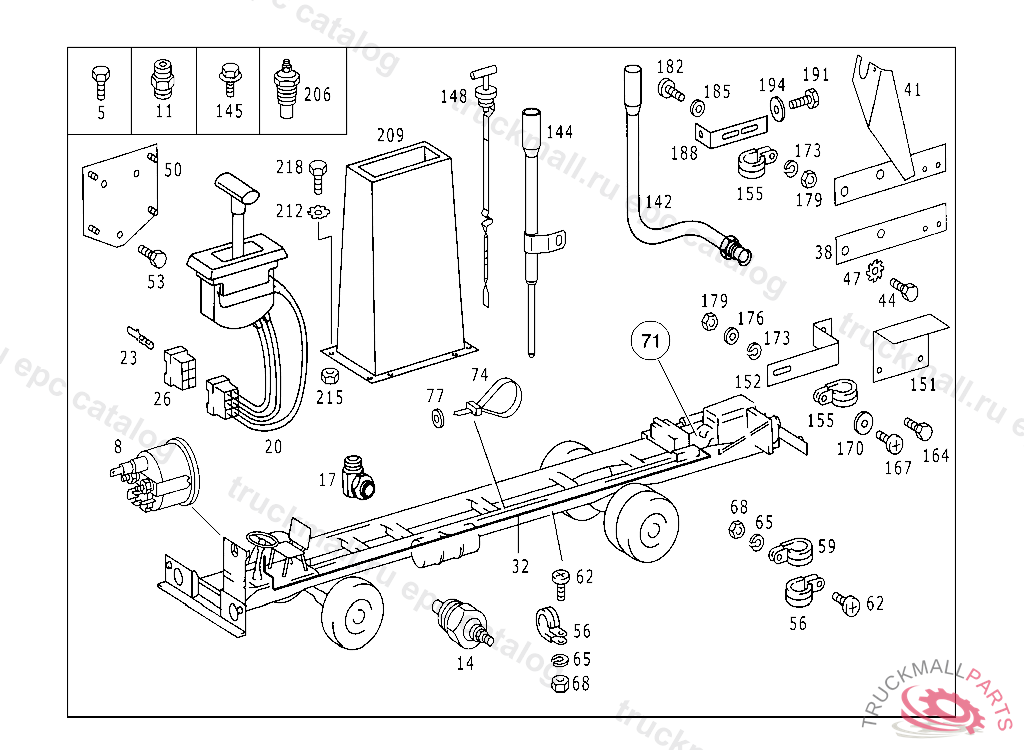

Поз.
Артикул
Описание
5
SCREW CROSS MEMBER TO SIDE MEMBERS
20
GEAR INDICATOR
20
GEAR INDICATOR
23
PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 2.5 MM2
26
PLUG HOUSING 6-POLE
32
CABLE
38
BRACKET
44
SCREW BRACKET TO TRANSMISSION
50
BRACKET SWITCH TO TRANSMISSION
53
SCREW CROSS MEMBER TO SIDE MEMBERS M 14X1.5X50
56
CLAMP LINE MOUNTING
59
CLAMP DELIVERY AND SUCTION LINES TO FRAME
62
SCREW ELECTRICAL COMPARTMENT
65
LOCK WASHER CABLE TO FUSE BOX
68
NUT
71
LOCK ELECTRIC CABLE TO TRANSMISSION
74
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
74
LOOM TIE LINE MOUNTING
74
LOOM TIE ELECTRIC CABLE MOUNTING
77
WASHER , Replaced By: A3609902340
142
OIL FILLER PIPE
148
OIL DIPSTICK ,A 112778
155
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
167
SCREW ELECTRICAL COMPARTMENT
173
LOCK WASHER CABLE TO FUSE BOX
176
WASHER PLUG SOCKET TO BRACKET
179
NUT
182
SCREW CONTROL UNIT
185
WASHER PLUG SOCKET TO BRACKET
188
BRACKET FUEL LINE
191
SCREW BRACKET TO TRANSMISSION
194
WASHER PROPELLER SHAFT TO BRACKET
209
SUPPORT RANGE SELECTOR SWITCH
212
TOOTHED WASHER BALANCING PLATES TO FAN AND TO PULLEY
215
NUT
218
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
999
LOCK AUTOMATIC TRANSMISSION GEAR SELECTOR SWITCH
