Главная
›
Mercedes
›
TRUCK
›
LA 1215
›
392.101
›

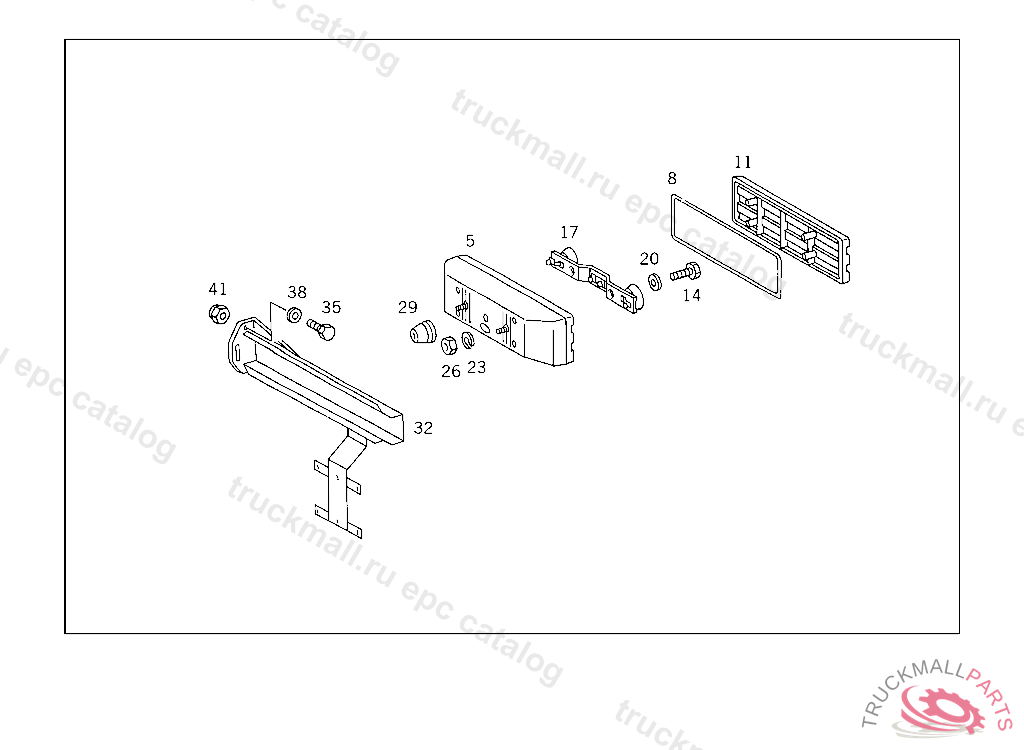

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
›
540 TAIL LAMP
Mercedes N000127008203 -
LA 1215 392.101
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 540 TAIL LAMP
Поз.
Артикул
Описание
5
A3515447203
TAIL LAMP RIGHT MAGDALUX,A 058185 ONLY REPLACEABLE BY PAIRS
5
A3515447103
TAIL LAMP LEFT MAGDALUX,A 058185 ONLY REPLACEABLE BY PAIRS
8
A0005447580
GASKETR & S,4 300928
11
A0015444590
LENS , Replaced By: A0015445990
11
A3515447090
LENS WITH SCREWS
14
A3515447070
STUD TAIL LAMP TO BRACKET
17
A3515447038
BRACKET
20
A0019901940
WASHER ,4 300928
20
A0005440476
WASHER ,4 300928
23
N000127008203
LOCK WASHER TAIL LAMP TO BRACKET
26
N000934008010
NUT , Replaced By: N304032008006
29
A0019971581
GROMMET
32
A3845207541
BRACKET RIGHT
32
A3925207041
BRACKET LEFT TAIL LAMP
35
N000961014100
SCREW BRACKET TO SIDE MEMBER
38
N000125015012
WASHER
41
N913004014004
NUT BRACKET TO BATTERY CASE
