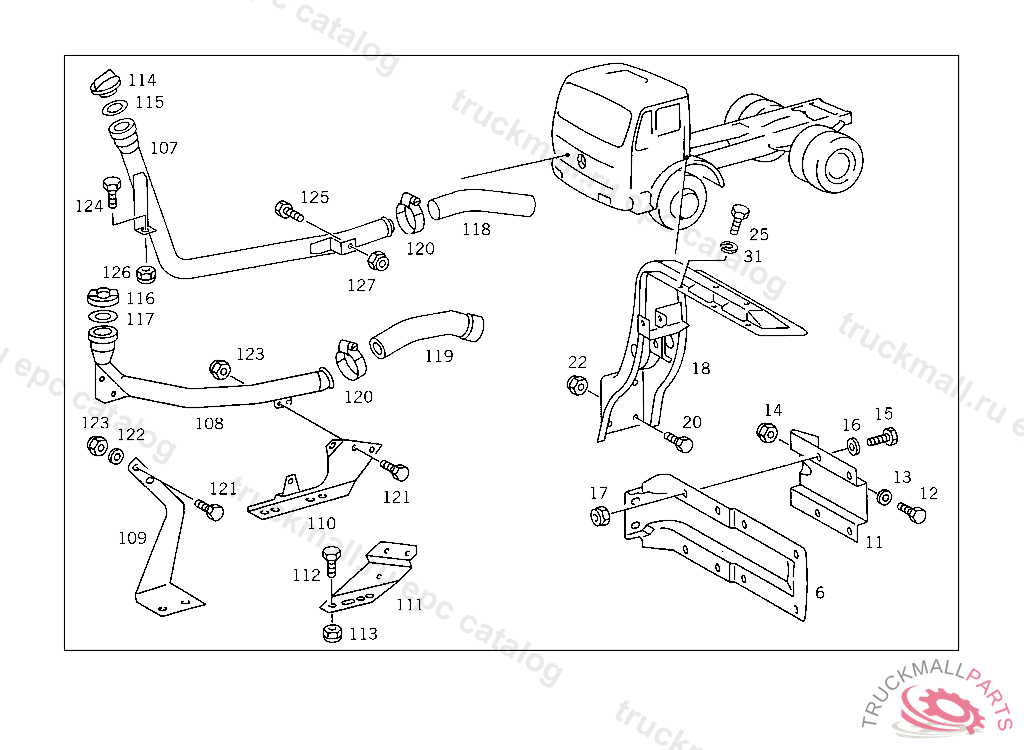

Поз.
Артикул
Описание
6
BRACKET FENDER
6
BRACKET , Replaced By: A6575210140
11
SUPPORT (CONSOLE),FOR FENDER
11
BRACKET , FOR USE WITH SHORT MERCEDES-BENZ CAB, Replaced By: A6575200033
11
BRACKET , Replaced By: A6575210040
12
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
12
SCREW BRACKET TO CAB CONSOLE,K 035197
13
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
13
WASHER , Replaced By: N000125015019
14
NUT BRACKET TO SIDE MEMBER
14
NUT , Replaced By: N910113014001
15
SCREW CLAMP TO BRACKET AND TO PIPE
15
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
15
SCREW , Replaced By: N304017008027
15
SCREW BRACKET TO CROSS CONNECTION STRUT
15
SCREW BRACKET TO CROSS CONNECTION STRUT
15
SCREW , Replaced By: N304017008034
16
WASHER FENDER BRACKET TO FENDER, Replaced By: A0049902582
16
WASHER FENDER BRACKET TO FENDER, Replaced By: A0049902582
16
WASHER , Replaced By: A6312670276
17
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
17
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
17
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
17
NUT , Replaced By: N913004008001
18
BRACKET RIGHT FENDER
18
BRACKET LEFT FENDER
20
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
20
SCREW , Replaced By: N308676014020
22
NUT BRACKET TO SIDE MEMBER
22
NUT , Replaced By: N910113014001
25
SCREW CLAMP TO BRACKET AND TO PIPE
31
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
108
OIL FILLER NECK THREADED,4 345194
109
BRACKET FRONT,4 345194
110
BRACKET REAR,4 345194
110
BRACKET OIL FILLER NECK,REAR,4 345193
111
BRACKET REAR
112
SCREW END PIECE TO EXHAUST PIPE M 10X25
113
NUT STRAP TO BRACKET
113
NUT , Replaced By: N910113010000
114
CAP OIL REFILLING
116
CAP OIL REFILLING,5 293767
117
GASKET
117
GASKET , Replaced By: A1020180380
117
GASKET , Replaced By: A1020180080
119
HOSE OIL REFILLING
119
HOSE FROM OIL FILLER NECK TO OIL PAN,10/20 4 348998,50/60 4 331113
120
CLAMP
120
CLAMP , Replaced By: N000000000671
121
SCREW LICENSE PLATE TO BRACKET
121
SCREW , Replaced By: N304017006020
122
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
123
NUT PUMP TO BRACKET
123
NUT , Replaced By: N913004006001
999
PIPE ELBOW , 10/20 UP TO IDENT NO. 4 348998,50/60 UP TO IDENT NO. 4 331113, Replaced By: A4010101564, +001A3520100468, +001A4010182540, +001A4010182640, +001A4020180482, +004N000933006121, +004N913004006001
