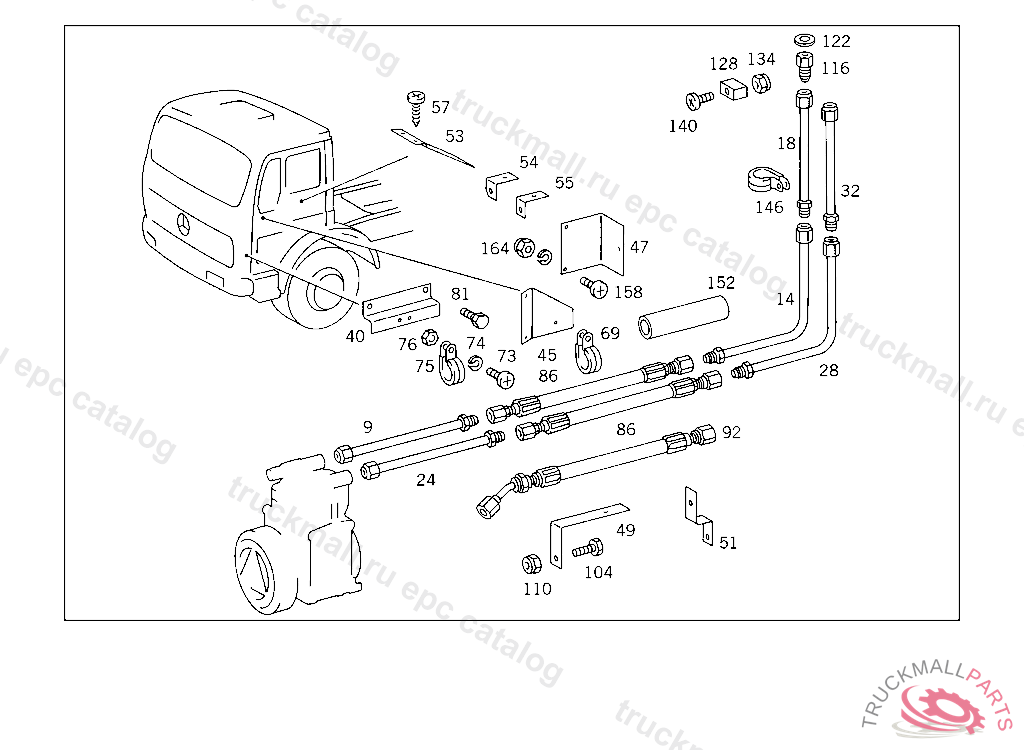

Поз.
Артикул
Описание
9
PIPE LINE HIGH PRESSURE, FROM COMPRESSOR TO CONNECTING HOSE,4 478294
9
PIPE LINE HIGH PRESSURE, FROM COMPRESSOR TO CONNECTING HOSE,4 478295
14
PIPE LINE HIGH PRESSURE, FROM CONNECTION HOSE TO SEPARTION POINT
14
PIPE LINE HIGH PRESSURE, FROM CONNECTION HOSE TO SEPARTION POINT
18
PIPE LINE HIGH PRESSURE, FROM SEPARATION POINT TO AIR CONDITIONER
18
PIPE LINE HIGH PRESSURE, FROM SEPARATION POINT TO AIR CONDITIONER
24
PIPE LINE LOW PRESSURE, FROM COMRPESSOR TO CONNECTING HOSE,4 478294
28
PIPE LINE LOW PRESSURE, FROM CONNECTION HOSE TO SEPARATION POINT
28
PIPE LINE LOW PRESSURE, FROM CONNECTION HOSE TO SEPARATION POINT
32
PIPE LINE LOW PRESSURE, FROM SEPARATION POINT TO AIR CONDITIONER
32
PIPE LINE LOW PRESSURE, FROM SEPARATION POINT TO AIR CONDITIONER
40
BRACKET REFRIGERANT LINE TO COMPRESSOR,4 478294
45
BRACKET HOSE TO RADIATOR,4 478294
47
BRACKET HOSE TO RADIATOR,4 478295
49
BRACKET HOSE TO CROSS MEMBER
51
BRACKET PIPE LINE TO CAB FLOOR
53
BRACKET REFRIGERANT LINE TO CAB
54
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
54
BRACKET , Replaced By: A3524290740
54
BRACKET , Replaced By: A3875015820
55
BRACKET HEATING PIPE TO FAN SHROUD BRACKET
57
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
69
CLAMP HOSE TO FLANGE AND TO VALVE
73
SCREW CLAMP MOUNTING M 6X16
73
SCREW , Replaced By: N000000001146
74
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
75
CLAMP LINE MOUNTING
76
NUT PUMP TO BRACKET
76
NUT , Replaced By: N913004006001
81
SCREW ,4 478294
86
HOSE RADIATOR,4 478295
92
HOSE RADIATOR,4 478295
104
SCREW PIPE CLAMP
104
SCREW , Replaced By: N304017008021
110
NUT , Replaced By: N913004008001
110
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
116
FITTING AIR CONDITIONER,4 478295
122
SEAL AIR CONDITIONER,4 478295
128
SPACER REFRIGERANT LINE TO CAB REAR PANEL
134
RIVETED NUT REFRIGERANT LINE TO CAB REAR PANEL
140
SCREW PLATE TO BRACKET, Replaced By: N000000001481
140
SCREW PLATE TO BRACKET, Replaced By: N007985006590
140
SCREW PLATE TO BRACKET
146
CLAMP LINE MOUNTING
152
INSULATING HOSE BATTERY CABLE
152
HOSE , Replaced By: A0015464730
152
INSULATING HOSE , Replaced By: A0015462630
158
SCREW CLAMP MOUNTING M 6X16
158
SCREW , Replaced By: N000000001146
164
NUT PUMP TO BRACKET
164
NUT , Replaced By: N913004006001
