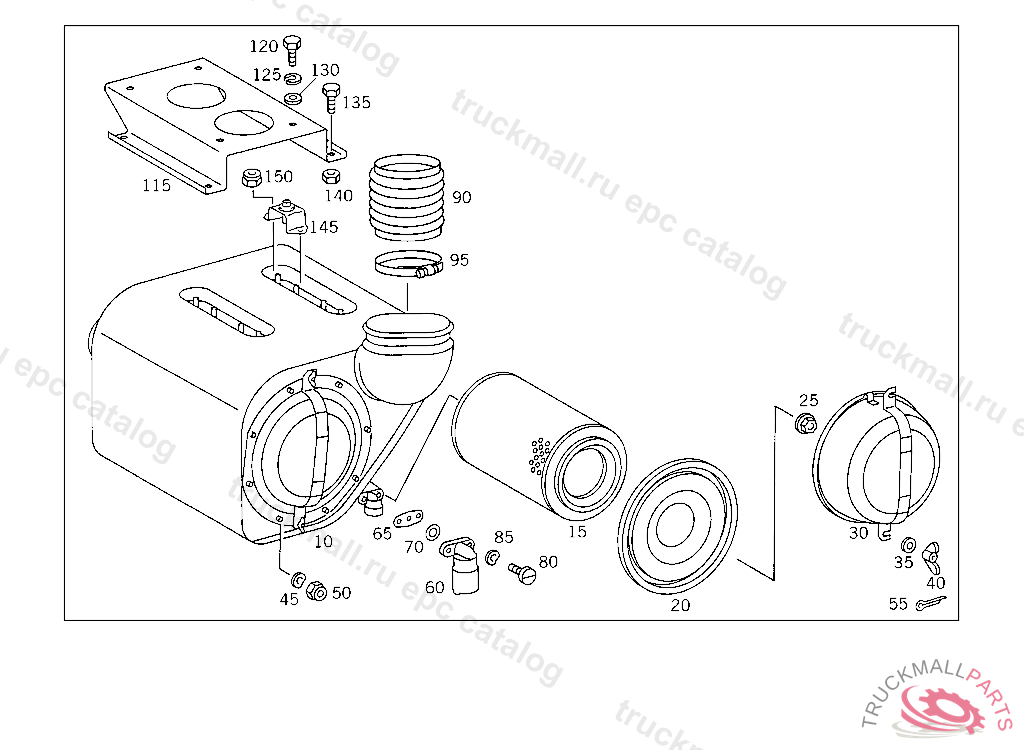

Поз.
Артикул
Описание
10
AIR CLEANERMANN+HUMMEL
15
FILTER ELEMENT AIR CLEANER
20
COVER LOWER PART MANN & HUMMEL
25
NUT
30
FILTER BOWL COVER TO 008 094 92 02,011 094 70 02
35
WASHER RADIATOR TO RUBBER MOUNTING
35
WASHER , Replaced By: N000125010532
40
NUTTO 000 466 38 02
45
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
45
SPRING WASHER , Replaced By: N000137008212
50
NUT , Replaced By: N913004008001
55
COTTER PIN CYLINDER TO BRACKET
60
MAINTENANCE INDICATOR
65
GASKET
70
WASHER FELT
80
SCREW SHIFT CASE TO SLOTTED GATE
85
SPRING WASHER LICENSE PLATE TO BRACKET
90
HOSE AIR INTAKE
95
CLAMP AIR INTAKE
115
BRACKET AIR CLEANER
120
SCREW , Replaced By: N304017008016
120
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
125
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
130
WASHER EXHAUST MUFFLER TO STRAP
130
WASHER , Replaced By: N000125008443
135
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
135
SCREW , Replaced By: N304017008016
140
NUT , Replaced By: N913004008001
145
BUFFER AIR CLEANER
150
NUT , Replaced By: N913004008001
