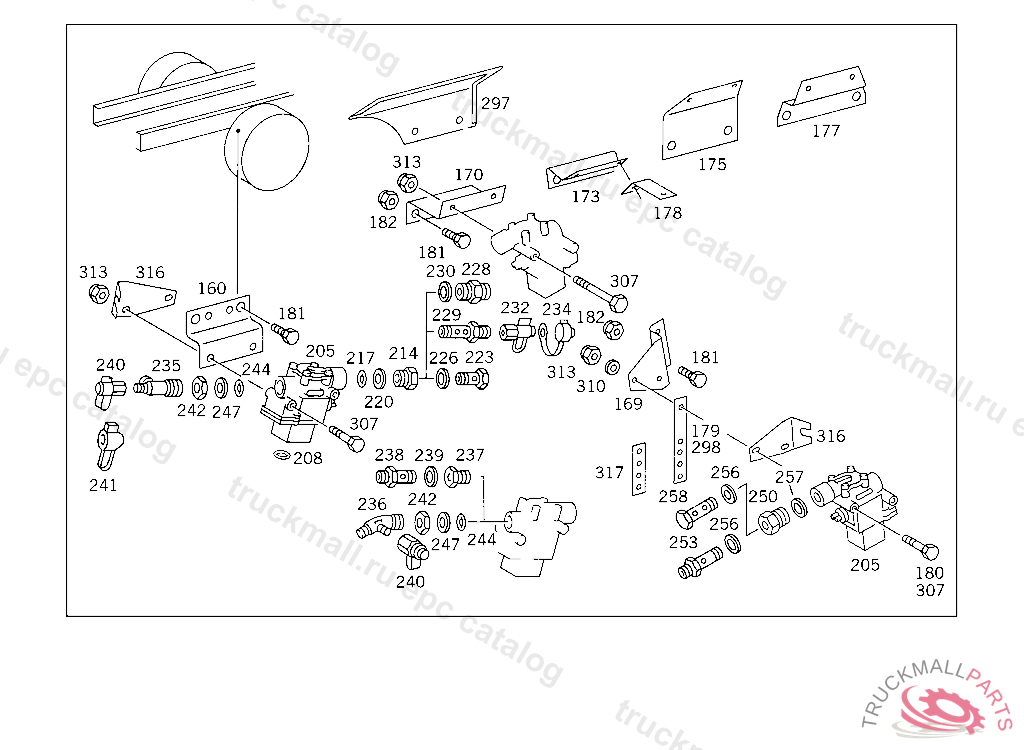

Поз.
Артикул
Описание
160
BRACKET FRONT AXLE REGULATING SOLENOID VALVE
169
BRACKET FRONT AXLE,LEFT,5 431227
169
BRACKET FRONT AXLE,LEFT,5 431227
170
BRACKET SIDE MEMBER
173
BRACKET RIGHT SIDE MEMBER,5 172585
173
BRACKET LEFT SIDE MEMBER,5 172584
175
BRACKET LEFT SIDE MEMBER,5 172584
175
BRACKET RIGHT SIDE MEMBER,5 172584
177
BRACKET LEFT AND RIGHT SIDE MEMBERS
178
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
178
BRACKET , Replaced By: A3184923441
178
BRACKET , Replaced By: A3184923641
179
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
180
SCREW FRONT AXLE REGULATING SOLENOID VALVE
180
SCREW , Replaced By: N000933008134
181
SCREW , Replaced By: N304017008021
181
SCREW , Replaced By: N304017008027
181
SCREW , Replaced By: N304017008034
181
SCREW , Replaced By: N304017010002
181
SCREW , Replaced By: N308676012012
181
SCREW , Replaced By: N308676014020
181
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
181
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
181
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
181
SCREW REAR EXHAUST PIPE TO MUFFLER
181
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
181
SCREW BRACKET TO FRAME M 12X35
181
SCREW BRACKET TO SIDE MEMBER
181
SCREW PIPE CLAMP
181
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
181
SCREW BRACKET TO CROSS CONNECTION STRUT
182
NUT BRACKET TO SIDE MEMBER
182
NUT STRAP TO BRACKET
182
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
182
NUT SUPPORT TO SIDE MEMBER
182
NUT , Replaced By: N913004008001
182
NUT , Replaced By: N910113010000
182
NUT , Replaced By: N910113014001
205
VALVE , REPAIR IMPOSSIBLE, Replaced By: A0044293444
205
VALVE , REPAIR IMPOSSIBLE, Replaced By: A0044296144
205
VALVE , Replaced By: A0044295944
205
VALVE , Replaced By: A0044296044
205
VALVE REGULATING SOLENOID VALVE "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
205
VALVE (SOLENOID VALVE) "BOSCH", REPAIR IMPOSSIBLE
205
VALVE REGULATING SOLENOID VALVE "KNORR", REPAIR IMPOSSIBLE
208
SEAL RING , NOT USED
214
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
217
O-RING CHECK VALVE TO AIR RESERVOIR
220
THRUST RING CHECK VALVE TO AIR RESERVOIR
220
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
223
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
226
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
228
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
228
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
228
FITTING , Replaced By: A0029971172
229
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
230
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
232
TEST CONNECTION
232
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
232
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
232
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
234
PLUG
235
T-FITTING FRONT AXLE,CONNECTION: "20"
236
T-FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
237
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
238
HOLLOW SCREW FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTION: "1"
239
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
240
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
240
TEST CONNECTION
240
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
240
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
241
PLUG
242
NUT CHECK VALVE TO AIR RESERVOIR
244
O-RING CHECK VALVE TO AIR RESERVOIR
247
THRUST RING CHECK VALVE TO AIR RESERVOIR
247
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
250
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
253
HOLLOW SCREW FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTION: "1"
253
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
256
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
256
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
257
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
258
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
258
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
297
COVERING LEFT,5 186367
297
COVERING RIGHT,5 186367
298
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
307
SCREW FRONT AXLE REGULATING SOLENOID VALVE
307
SCREW REAR AXLE REGULATING SOLENOID VALVE
307
SCREW CONSOLE TO SIDE MEMBER
307
SCREW TWO-WAY VALVE TO FRAME M 8X140
307
SCREW AT SIDE MEMBER,REAR M 8X135
307
SCREW VALVE TO SIDE MEMBER M 8X150
307
SCREW FRONT AXLE REGULATING SOLENOID VALVE
307
SCREW , Replaced By: N304014008007
307
SCREW , Replaced By: N000933008134
307
SCREW , Replaced By: N304014008022
310
WASHER , Replaced By: N000125008443
310
WASHER EXHAUST MUFFLER TO STRAP
313
NUT SUPPORT TO SIDE MEMBER
313
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
313
NUT , Replaced By: N913004008001
316
LOCK FRONT AXLE,RIGHT,K 009080
316
LOCK VALVE TO BRACKET
316
LOCK FRONT AXLE,LEFT
316
LOCK (PROTECTION AGAINST TORSION),FRONT AXLE
316
LOCK FRONT AXLE,RIGHT
316
LOCK VALVE TO BRACKET
316
LOCK FRONT AXLE,LEFT,K 009079
316
LOCK FRONT AXLE,LEFT,K 009080
317
BRACKET (PROTECTION AGAINST TORSION),FRONT AXLE
999
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
999
ADAPTER FITTING , Replaced By: A0069970072
999
ADAPTER FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22"
999
ADAPTER FITTING , Replaced By: A0004296934
999
VALVE PART , Replaced By: A0029971236
999
ABS ELECTRONICS , Replaced By: A0004461114
999
CROSS FITTING AIR RESERVOIRS I AND II,4 821954 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
CONTROL UNIT , Replaced By: A0025454932
999
T-FITTING AIR RESERVOIR,CONNECTION: "31"
999
T-FITTING LEFT AND RIGHT BRAKE HOSES
999
CONTROL UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 042987, Replaced By: A0035452832
999
VALVE
999
CONTROL UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.5 186367 IN CASE OF "C" ELECTRONICS WITH ASR, EXCHANGE 006 545 27 32 FOR 013 545 05 32, Replaced By: A0045458432
999
FITTING RELAY VALVE,CONNECTION "20",LEFT
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
LINE FROM 3/2-WAY VALVE TO DISTRIBUTOR
999
BRACKET RELAY VALVE, NOT USED
999
BRACKET SENSOR CABLE
999
PROTECTIVE PLATE , Replaced By: A6244210120
999
PROTECTIVE PLATE FRONT AXLE TWO-WAY VALVE
999
BRACKET LEFT SIDE MEMBER
999
BRACKET RIGHT SIDE MEMBER
999
BRACKET LOAD/NO-LOAD VALVE
999
FITTING , Replaced By: A0009905070
