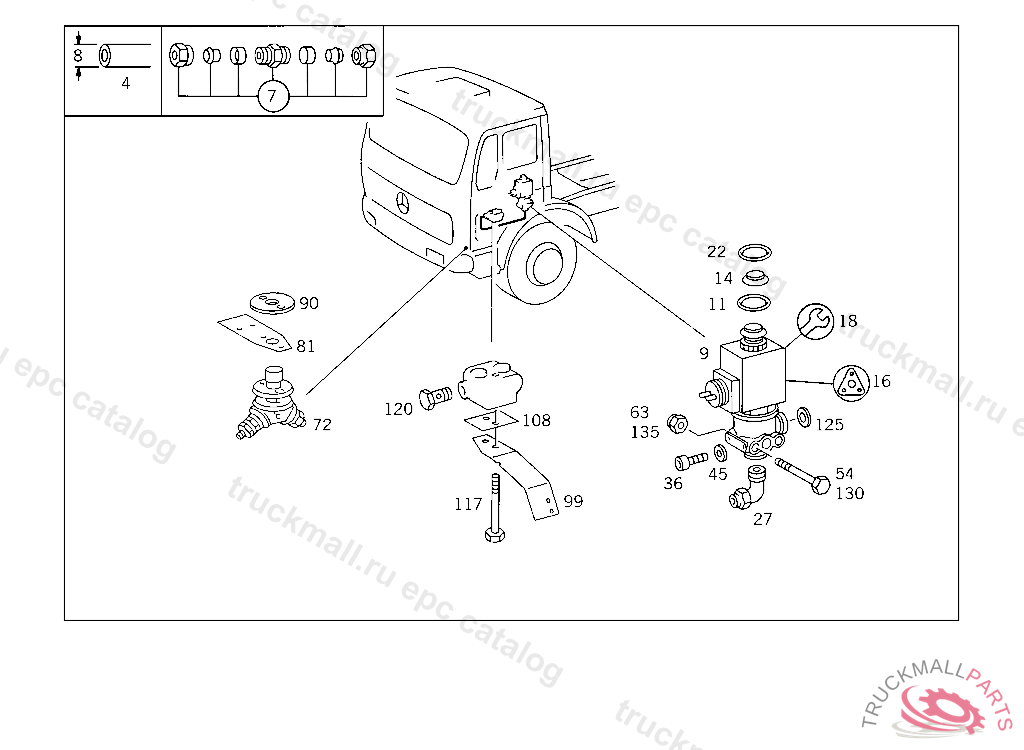

Поз.
Артикул
Описание
4
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
7
FITTING , Replaced By: A0029905971
7
FITTING (PARTS KIT),LINE RUPTURE
9
VALVE (SOLENOID VALVE)
11
SEAL RINGWABCO
14
PROTECTIVE CAPWABCO
16
GASKET KITKNORR
18
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
22
SEAL RING VALVE TO VALVE
27
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
36
SCREW TO PLUG THE FREE CONNECTIONS
45
SEAL RINGBOSCH
54
SCREW VALVE TO BRACKET M 8X55
54
SCREW , Replaced By: N304017008043
63
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
72
SWITCH (FOOT-OPERATED SWITCH),5 220372
72
SWITCH , Replaced By: A0045450314, +001A0005465435
72
SWITCH (FOOT-OPERATED SWITCH),5 220373
72
SWITCH EXHAUST BRAKE,K 004388
81
REINFORCEMENT EXHAUST BRAKE SWITCH,5 462108
90
BRACKET SWITCH TO FLOOR PLATE,5 220373
90
REINFORCEMENT EXHAUST BRAKE SWITCH,5 377329
99
BRACKET SOLENOID VALVE
108
REINFORCEMENT DISTRIBUTOR TO CAB
117
SCREW DISTRIBUTOR TO CAB
117
SCREW , Replaced By: N000933006151
120
HOLLOW SCREW HEATING CONNECTION
125
SEAL RING LINE CONNECTION
130
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
130
SCREW FRONT AXLE REGULATING SOLENOID VALVE
130
SCREW , Replaced By: N304014008007
135
NUT , Replaced By: N913004008001
999
SERRATED WASHER EXHAUST BRAKE FOOT-OPERATED SWITCH
999
WASHER EXHAUST BRAKE FOOT-OPERATED SWITCH
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
SEAL RINGBOSCH
999
VALVE (3/2-WAY SOLENOID VALVE) EKS
