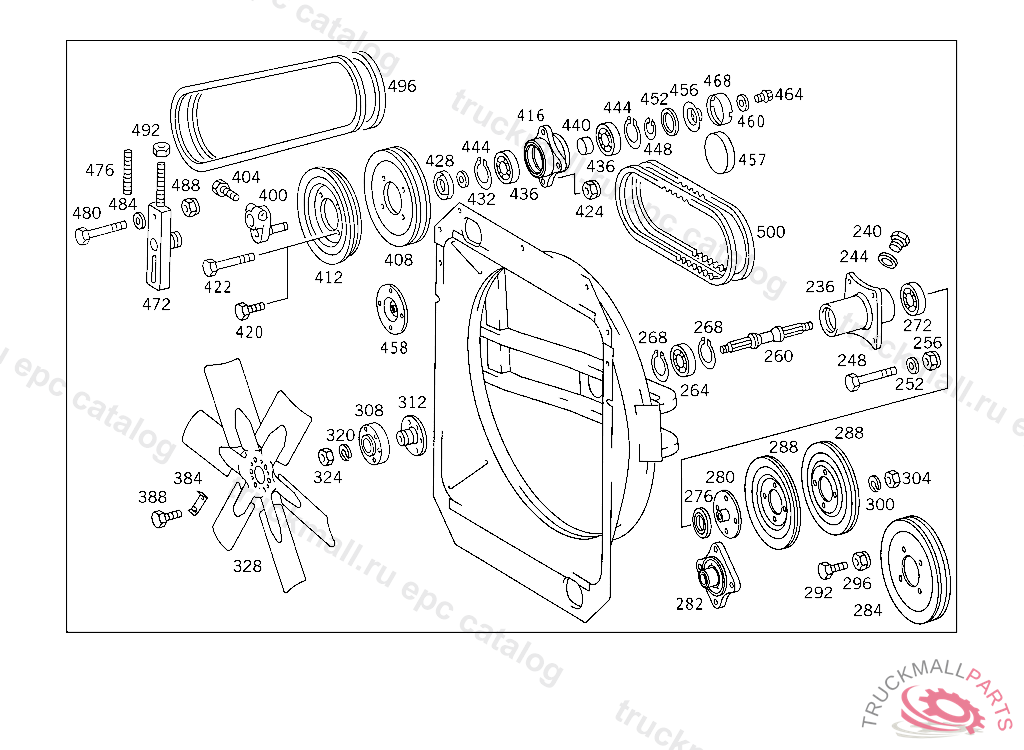

Поз.
Артикул
Описание
236
BEARING BODY FAN DRIVE
240
SCREW PLUG AIR DEHYDRATOR
240
SCREW PLUG 4/2-WAY VALVE
244
SEAL RING PNEUMATIC VALVE
248
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
252
WASHER EXHAUST MUFFLER TO STRAP
256
NUT , Replaced By: N913004008001
260
FAN SHAFT
264
GROOVED BALL BEARING
268
LOCK RING52X2 MM
272
CYLINDR. ROLLER BEARING FAN DRIVE
272
CYLINDR. ROLLER BEARING ON RADIATOR SIDE
276
SEAL RING CASE COVER
282
HUB HUB TO FAN DRIVE
284
PULLEY FAN DRIVE 180 MM
292
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
296
NUT , Replaced By: N913004008001
300
LOCK WASHERROCKINGER TYP 59 G140,59 G150
304
NUT WEAR INDICATOR
320
LOCK WASHERROCKINGER TYP 59 G140,59 G150
324
NUT WEAR INDICATOR
400
LEVER ,042506, Replaced By: A3072000573, +001A0119975447
404
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
408
PULLEY180 MM,000475
412
PULLEY ONE-GROOVE,ELBOWED 188 MM
416
HUB
416
HUB
422
SCREW VALVE TO BRACKET
424
NUT , Replaced By: N913004008001
428
SEAL RING TIGHTENER PULLEY, UP TO IDENT NO.035608 ALSO INSTALLED ON 035610,035643,035659,035698,035709,035728,036213
428
SEAL RING PULLEY,1/97
432
SPACER WASHER BELT TIGHTENER 0.50 MM
432
SPACER WASHER BELT TIGHTENER 0.20 MM
432
SPACER WASHER BELT TIGHTENER 1.00 MM
436
BALL BEARING HUB,1/97
436
GROOVED BALL BEARING
440
SPACER TUBE
444
LOCK RING52X2 MM
448
LOCK RING
452
SEAL RING BATTERY MASTER SWITCH
456
EXPANSION PLUG
457
EXPANSION PLUG PULLEY,1/97
458
EXPANSION PLUG
460
SEAL RING PNEUMATIC VALVE
464
SCREW PLUG AIR DEHYDRATOR
464
SCREW PLUG 4/2-WAY VALVE
468
NUT TIGHTENER PULLEY
472
SUPPORT CLAMPING LEVER
476
STUD SUPPORT TO FAN SUPPORT
480
SCREW RADIATOR M 10X45
484
WASHER RADIATOR TO RUBBER MOUNTING
488
NUT STRAP TO BRACKET
492
NUT STRAP TO SUPPORT
496
V-BELT FROM VIBRATION DAMPER TO TIGHTENER PULLEY 12.5X1925 MM
500
V-BELT SET2 PIECES
999
RECEPTACLE SILICONE GREASE, FILLING QUANTITY: 64 CCM,TO 002 205 01 06
