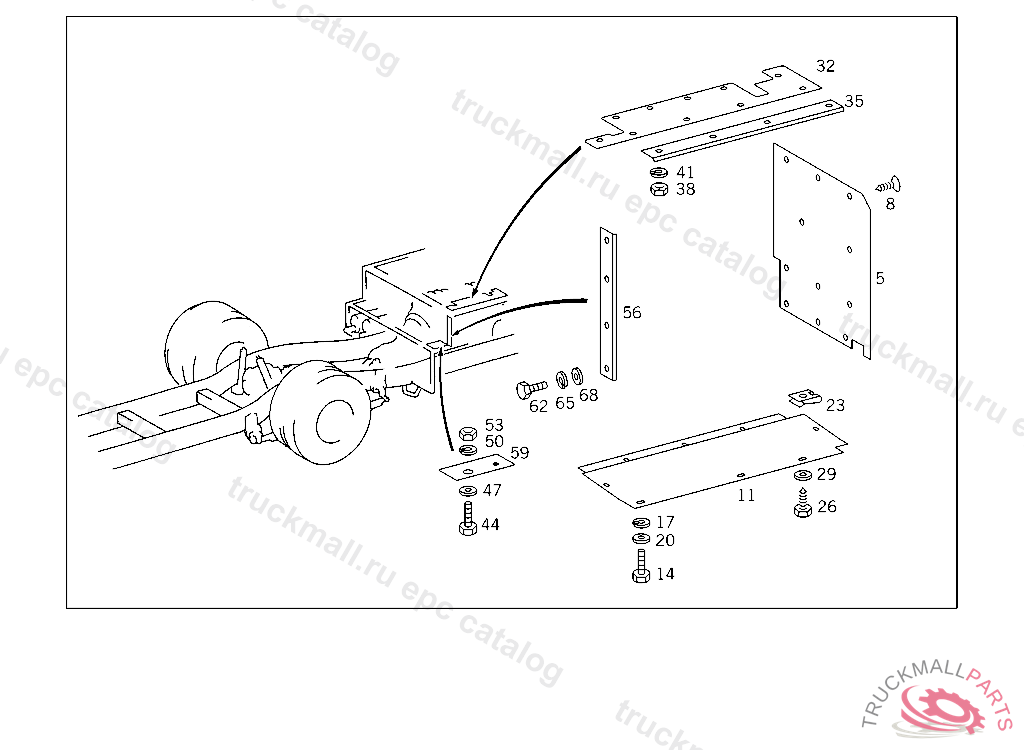

Поз.
Артикул
Описание
5
COVERING APPARATUS SUPPORT,FRONT
5
COVERING , Replaced By: A6975243333
8
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
11
COVERING RADIATOR BOTTOM
14
SCREW PIPE CLAMP
17
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
20
WASHER EXHAUST MUFFLER TO STRAP
23
LOCK INSTRUMENT PANEL TO COWL
26
SHEET METAL SCREW BRACKET TO FLOOR PLATE
26
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
26
SHEET METAL SCREW WIRE CABLE TO MOUNTING CLAMP,774712
26
SHEET METAL SCREW , Replaced By: N007981004233
29
WASHER PROTECTIVE PLATE
32
BOOT ON RADIATOR,TOP
35
RAIL RADIATOR BASE FRAME
38
NUT SPRING-LOADED PUSH ROD
41
LOCK WASHER CABLE TO FUSE BOX
44
SCREW LICENSE PLATE TO BRACKET
47
WASHER COMPRESSED AIR LINE TO BRACKET
47
WASHER , Replaced By: N009021006208
50
LOCK WASHER CABLE TO FUSE BOX
53
NUT SPRING-LOADED PUSH ROD
56
RAIL AT APPARATUS SUPPORT
59
COVERING AT APPARATUS SUPPORT
62
SCREW LICENSE PLATE TO BRACKET
65
LOCK WASHER CABLE TO FUSE BOX
68
WASHER COMPRESSED AIR LINE TO BRACKET
68
WASHER , Replaced By: N009021006208
999
WASHER , Replaced By: N009021006208
