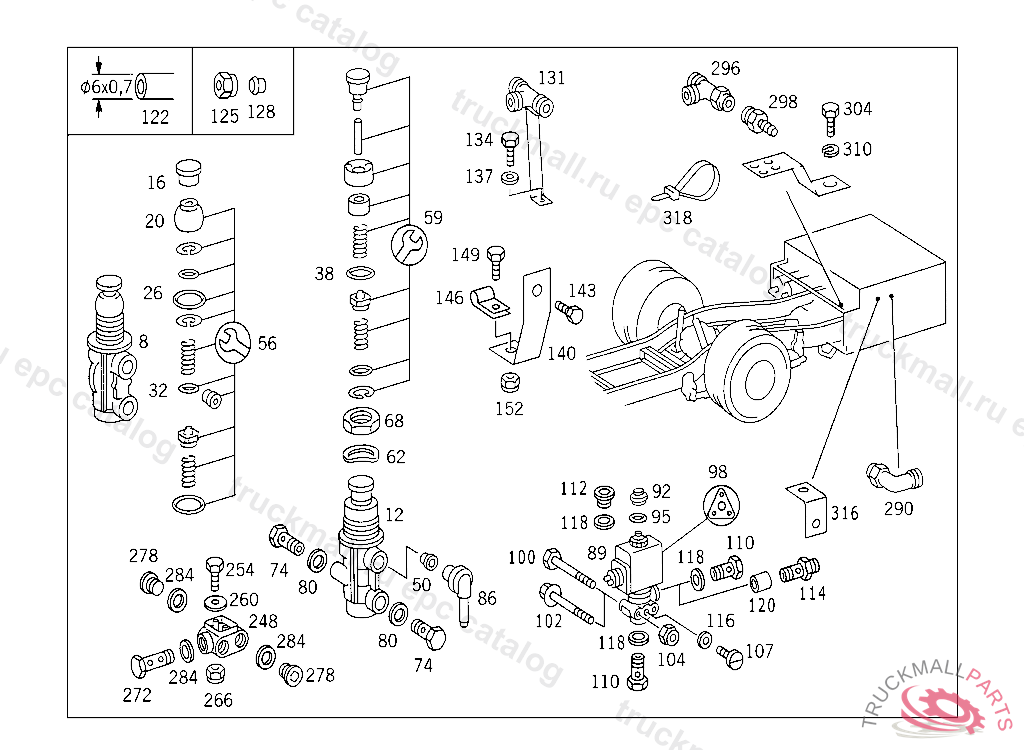

Поз.
Артикул
Описание
8
VALVE EXHAUST BRAKE OPERATING MECHANISM WESTINGHOUSE
12
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH
16
HANDLETO 000 434 23 01
20
CUP 3/2-WAY VALVE WABCO
26
SEAL RINGTO 000 434 23 01
32
SEAL RINGTO 000 434 23 01
38
SEAL RINGTO 000 434 21 01
50
STRAINERTO 000 434 21 01
56
REPAIR KIT 3/2-WAY VALVE WABCO
59
REPAIR KIT 3/2-WAY VALVE BOSCH
62
SPRING WASHER AT CAB FLOOR
68
NUT SUCTION LINE TO OIL PUMP
74
HOLLOW SCREW HEATING CONNECTION
80
SEAL RING LINE CONNECTION
86
BREATHER , Replaced By: A3933280065
86
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
89
VALVE (3/2-WAY SOLENOID VALVE) EKS
89
VALVE , Replaced By: A0049975736
92
PROTECTIVE CAPWABCO
95
SEAL RINGWABCO
102
SCREW AT SIDE MEMBER M 8X140
104
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
110
HOLLOW SCREW HEATING CONNECTION
114
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
118
SEAL RING LINE CONNECTION
120
SEAL RING VALVE TO VALVE
122
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
125
UNION NUT
128
GLAND , Replaced By: A0019901667
131
BRACKET COMPRESSED AIR LINE TO INTAKE MANIFOLD, LEFT FRONT
134
SCREW SUPPORT TO FENDER
137
WASHER
140
BRACKET BRACKET TO BEARING BRACKET
143
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
146
CLAMP LINE MOUNTING
149
SCREW PUMP TO BRACKET
152
NUT PUMP TO BRACKET
248
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
254
SCREW DISTRIBUTOR TO CAB
260
WASHER COMPRESSED AIR LINE TO BRACKET
266
NUT PUMP TO BRACKET
272
HOLLOW SCREW LINE CONNECTION
278
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
284
SEAL RING LINE CONNECTION
318
LOOM TIE LINE MOUNTING 280 MM
318
LOOM TIE LINE MOUNTING
318
LOOM TIE
999
SPRINGTO 000 434 21 01
