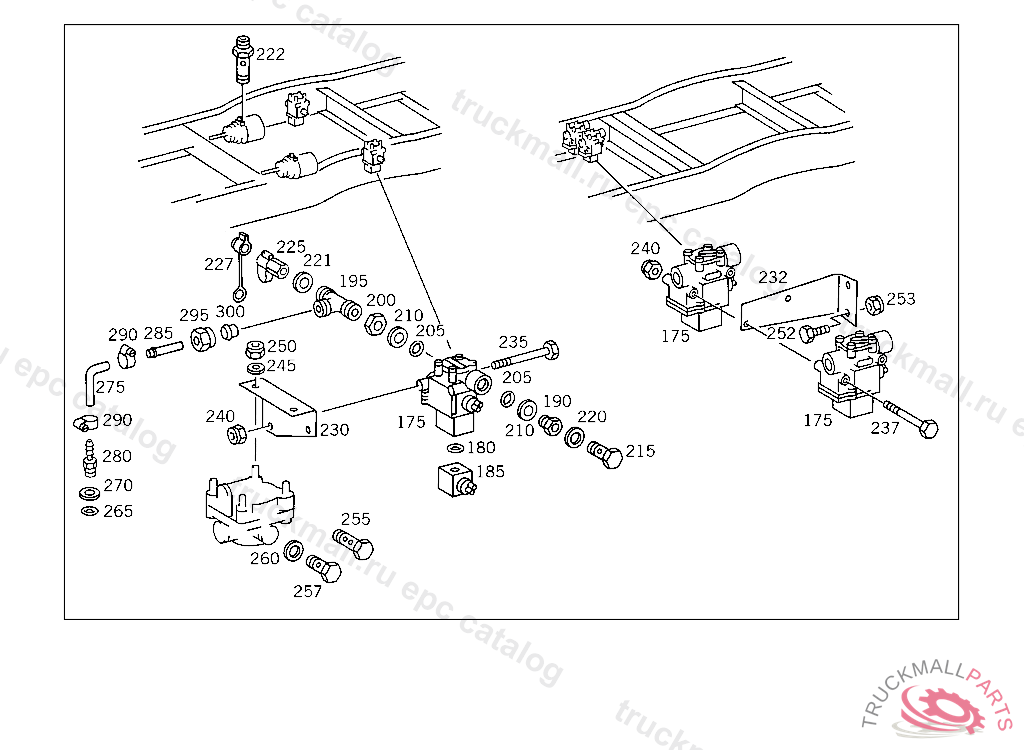

Поз.
Артикул
Описание
175
VALVE REGULATING SOLENOID VALVE "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
175
VALVE REGULATING SOLENOID VALVE "KNORR", REPAIR IMPOSSIBLE
175
VALVE , Replaced By: A0044296044
175
VALVE , REPAIR IMPOSSIBLE, Replaced By: A0044296144
175
VALVE , REPAIR IMPOSSIBLE, Replaced By: A0044293444
180
SEAL RING , NOT USED
185
VALVE
190
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
195
T-FITTING FRONT AXLE,CONNECTION: "20"
200
NUT CHECK VALVE TO AIR RESERVOIR
205
O-RING CHECK VALVE TO AIR RESERVOIR
210
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
215
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
220
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
221
SEAL RING LINE CONNECTION
222
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
225
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
225
TEST CONNECTION
227
PLUG
230
BRACKET CROSS MEMBER, THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE
230
BRACKET AT TWO-WAY VALVE
232
BRACKET 2/2-WAY VALVE
235
SCREW FRONT AXLE REGULATING SOLENOID VALVE
235
SCREW , Replaced By: N000933008134
237
SCREW AT SIDE MEMBER,REAR M 8X135
240
NUT , Replaced By: N913004008001
245
WASHER 3/2-WAY VALVE TO BRACKET
250
NUT , Replaced By: N913004008001
252
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
252
SCREW FITTING TO TRANSMISSION M8X32
252
SCREW , Replaced By: A0099900101
252
SCREW , Replaced By: N000933008337
253
NUT , Replaced By: N913004008001
255
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
257
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
260
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
265
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
270
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
275
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
280
FITTING DIAPHRAGM CYLINDER,CONNECTION:
285
FITTING DIAPHRAGM CYLINDER,CONNECTION:
290
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
290
CLAMP HOSE TO FITTING AND TO OIL TANK
295
UNION NUT LINE CONNECTION, Replaced By: N000000006239
295
UNION NUT LINE CONNECTION
300
SEAL CONE LINE CONNECTION
300
GLAND , Replaced By: A0019901967
999
SLEEVE LINE CONNECTION
999
UNION NUT LINE CONNECTION, Replaced By: N000000006239
999
GLAND , Replaced By: A0019901967
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
999
BREATHER , Replaced By: A3933280065
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
999
GASKET KITKNORR
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
999
T-FITTING RELAY VALVE,CONNECTION: "20"
