Поз.
Артикул
Описание

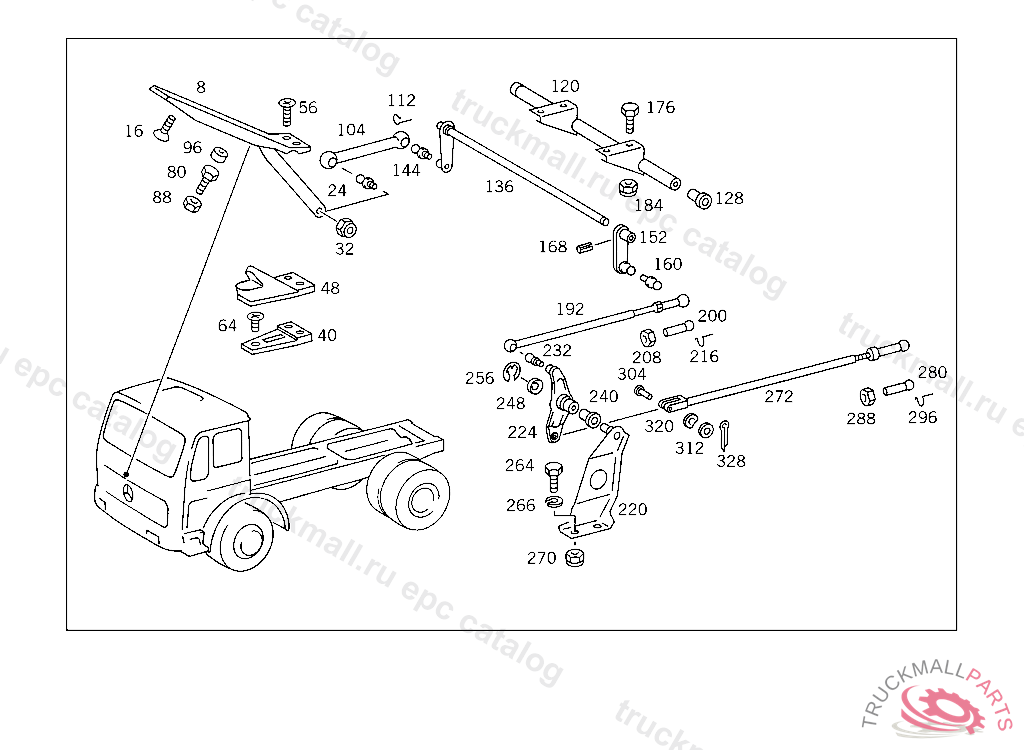

8
ACCELERATOR PEDAL , Replaced By: A6243000304
8
ACCELERATOR PEDAL , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6243000304
16
SCREW ACCELERATOR PEDAL
24
BALL PIVOT ACCELERATOR PEDAL,4 859026
24
BALL PIVOT LOAD SENSOR
32
NUT PUMP TO BRACKET
32
NUT , Replaced By: N913004006001
40
SHIM , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 859957, Replaced By: A6153010084
40
SHIM ACCELERATOR PEDAL
48
BOOT ACCELERATOR PEDAL,4 859957
48
BOOT ACCELERATOR PEDAL
56
SCREW ACCELERATOR PEDAL TO CAB M 6X25
64
SCREW PEDAL TO CAB FLOOR M 6 X 30
80
SCREW VALVE TO BRACKET, Replaced By: N304014008002
88
NUT , Replaced By: N304032008006
96
STOP ACCELERATOR PEDAL
104
BALL SOCKET ROD TO ACCELERATOR PEDAL
112
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
120
BEARING TUBE CONTROL SHAFT,5 151594
120
BEARING TUBE ,5 151593, Replaced By: A6153000021, +001A6153000020
128
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
136
SHAFT CONTROL,5 151594
136
SHAFT ,5 151593, Replaced By: A6153000020, +001A6153000021
144
BALL PIVOT CONTROL SHAFT
152
LEVER (CONTROL LEVER)
160
BALL PIVOT CONTROL SHAFT
168
CLAMPING SLEEVE , Replaced By: N308752004001
176
SCREW , Replaced By: N304017008016
184
NUT , Replaced By: N913004008001
192
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
200
BALL SOCKET PULL ROD TO LEVER
208
NUT BALL PIVOT TO LEVER
216
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
220
BEARING BRACKET INTERMEDIATE LEVER
220
BEARING BRACKET ,5 181099, Replaced By: A6203000436, +002A6153010088
224
LEVER , Replaced By: A3973000028
224
LEVER INTERMEDIATE BEARING
232
BALL STUD. BALL PIVOT TOP B10X4,5 MM
240
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
248
COVERING INTERMEDIATE BEARING
248
COVERING , Replaced By: A6153010088
256
LOCK PLATE INTERMEDIATE BEARING
264
SCREW CENTRAL LOCK TO CAB M 10X16
264
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
266
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
270
NUT , Replaced By: N910113010000
272
ROD INTERMEDIATE BEARING TO CONTROL SHAFT
280
BALL SOCKET ROD TO BALL PIVOT
288
NUT , Replaced By: N304032008006
296
SECURING CLIP. CIRCLIP
304
PIN ROD TO LEVER
312
WASHER BRACKET TO CROSS MEMBER
320
SPRING WASHER , Replaced By: N000137008212
328
COTTER PIN PULL ROD
999
SERRATED WASHER ACCELERATOR PEDAL TO CAB, ELIMINATED,NO LONGER REQUIRED
