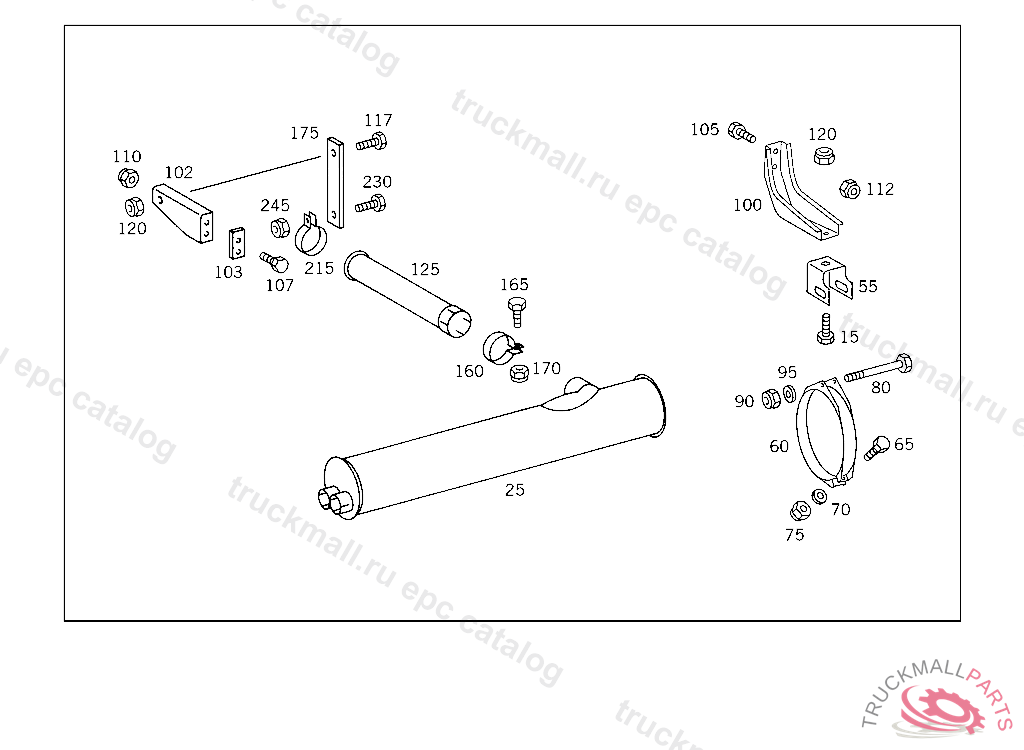

Поз.
Артикул
Описание
15
SCREW , Replaced By: N304017010002
25
EXHAUST MUFFLER
55
BRACKET
60
STRAP EXHAUST MUFFLER TO BRACKET
65
SCREW STRAP TO BRACKET
70
WASHER INTERMEDIATE SPEED STOP
75
NUT , Replaced By: N913004008001
80
SCREW STRAP TO BRACKET
80
SCREW BRACKET TO BELL HOUSING
90
NUT , Replaced By: N910113010000
95
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
95
WASHER , Replaced By: N000125010532
100
CONSOLE EXHAUST MUFFLER,FRONT
102
SUPPORT REAR EXHAUST PIPE TO SIDE MEMBER
103
BASE PLATE REAR EXHAUST PIPE TO SIDE MEMBER
105
SCREW CLAMP TO DRAG LINK M12X1.5X60,TO 682 460 31 05
107
SCREW REAR EXHAUST PIPE TO MUFFLER
110
NUT , Replaced By: N910113010000
112
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
117
SCREW END PIECE TO EXHAUST PIPE M 10X25
120
NUT , Replaced By: N910113010000
125
REAR EXHAUST PIPE
160
CLAMP REAR EXHAUST PIPE TO MUFFLER
160
CLAMP EXHAUST PIPE TO MUFFLER
160
CLAMP REAR EXHAUST PIPE TO MUFFLER
165
SCREW CLAMP TO DRAG LINK M12X1.5X60,TO 682 460 31 05
165
SCREW , Replaced By: N304017010002
170
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
170
NUT , Replaced By: N910113010000
175
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
175
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
175
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
215
CLAMP , Replaced By: A6554920340
215
CLAMP REAR EXHAUST PIPE TO BRACKET
230
SCREW CLAMP TO DRAG LINK M12X1.5X60,TO 682 460 31 05
230
SCREW REAR EXHAUST PIPE TO MUFFLER
230
SCREW , Replaced By: N304017010002
245
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
245
NUT , Replaced By: N910113010000
999
MUFFLER
999
EXHAUST MUFFLER ,5 535800
999
EXHAUST MUFFLER
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,LEFT,5 149102
999
FRONT EXHAUST PIPE FRONT,025786
