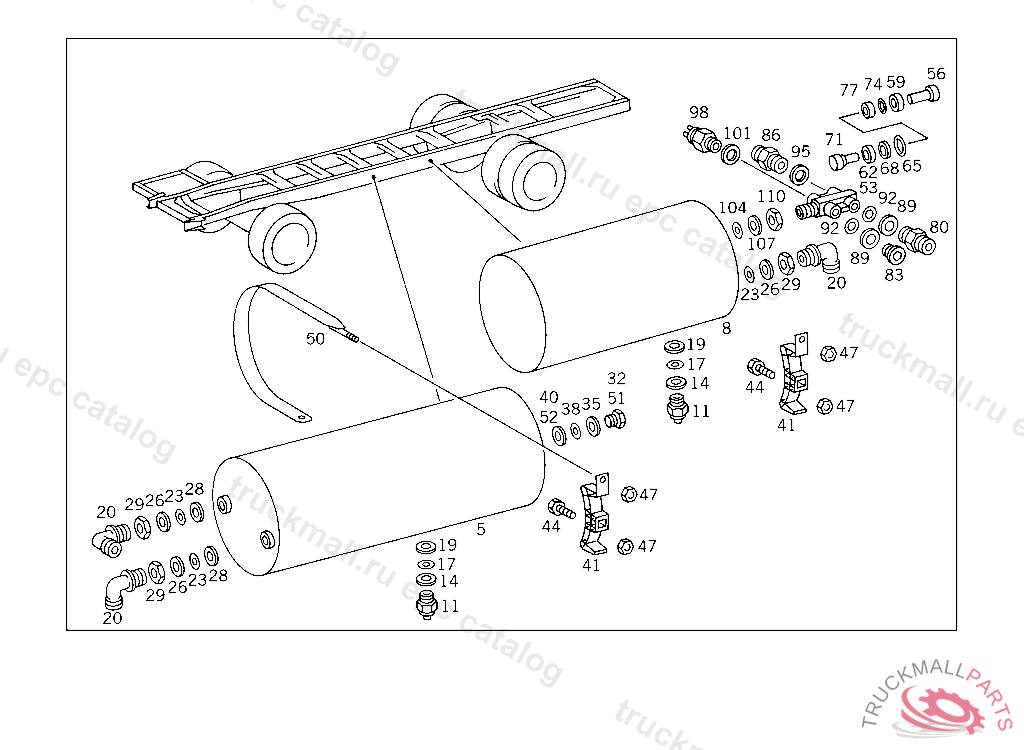

Поз.
Артикул
Описание
5
RESERVOIR30L,246 MM,12.5 BAR
5
RESERVOIR SERVICE BRAKE 30 L, Replaced By: A0034321801, +001A6554320073
8
RESERVOIR , Replaced By: A0014327501
11
VALVE DRAIN, Replaced By: A0004322407
11
VALVE DRAIN, Replaced By: A0004322107
11
VALVE. DRAIN VALVE DRAIN
19
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
20
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
23
O-RING CHECK VALVE TO AIR RESERVOIR
26
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
28
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
29
NUT CHECK VALVE TO AIR RESERVOIR
32
SCREW PLUG , Replaced By: N000908022011
40
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
41
BASE AIR RESERVOIR TO FRAME SIDE MEMBER,5 314334
44
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
44
SCREW END PIECE TO EXHAUST PIPE M 10X25
47
NUT , Replaced By: N910113010000
47
NUT EXHAUST PIPE TO SIDE MEMBER
50
STRAP
51
SCREW PLUG , Replaced By: N000908022011
52
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
53
VALVE (CHECK VALVE) VOSS
53
VALVE (CHECK VALVE) SCHAEFER
56
VALVE TAPPETTO 002 429 96 44,VOSS
59
SEAL RINGTO 002 429 96 44,VOSS
62
VALVETO 003 429 04 44,WABCO
65
SEAL RING19.3X2.4 MM,TO 003 429 04 44,WABCO
68
SEAL RING15.3X2.4 MM,TO 003 429 12 44,SCHAEFER
71
THRUST WASHERTO 003 429 12 44,SCHAEFER
74
SEAL RING13.6X2 MM,TO 003 429 12 44,SCHAEFER
77
SEAL CONETO 003 429 12 44,SCHAEFER
80
FITTING DELIVERY LINE TO PUMP
83
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
86
FITTING
92
SEAL RING FUEL LINE TO FEED PUMP
92
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
98
SWITCH SUPPLY PRESSURE
101
SEAL RING LINE CONNECTION
104
O-RING CHECK VALVE TO AIR RESERVOIR
107
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
110
NUT CHECK VALVE TO AIR RESERVOIR
999
VALVE AUTOMATIC DRAIN
999
VALVE (CHECK VALVE) WABCO
