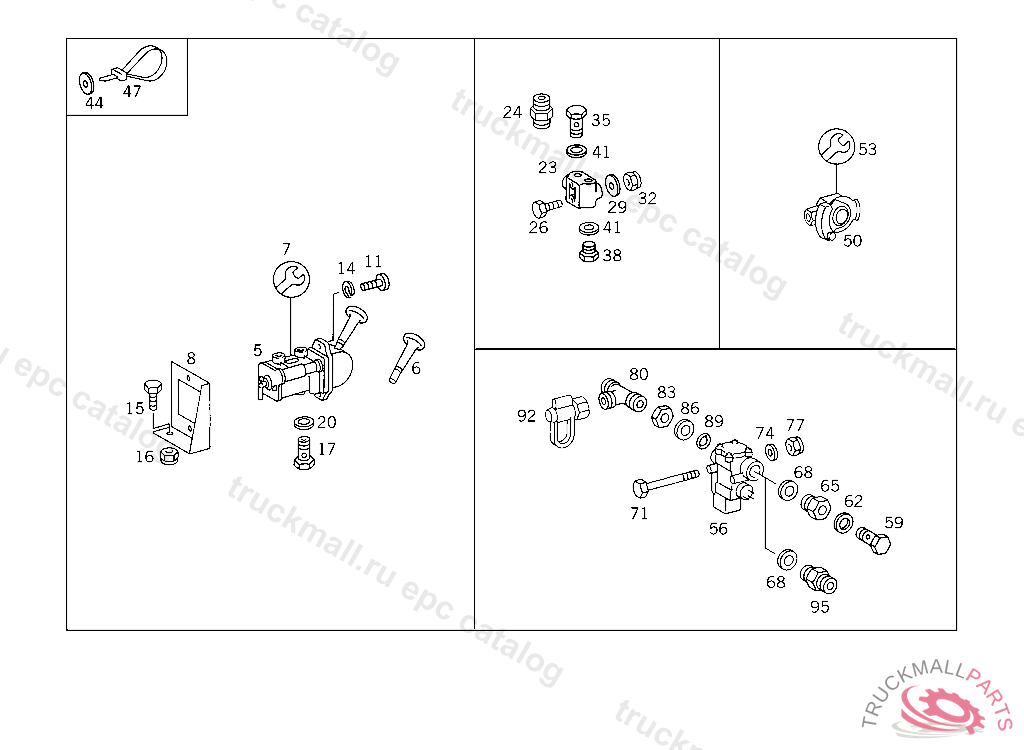

Поз.
Артикул
Описание
5
VALVE ,D 122341
5
VALVE (PARKING BRAKE VALVE) KNORR,D 196082
6
HANDLE BLACK TO 382 430 70 81
6
HANDLE RUSSET BROWN TO 382 430 70 81
7
REPAIR KIT PARKING BRAKE VALVE TO 382 430 70 81
8
BRACKET , Replaced By: A3844307510
8
BRACKET PARKING BRAKE VALVE
11
SCREW VALVE TO BRACKET,073289
14
LOCK WASHER RAIL TO BATTERY SUPPORT
15
SCREW MOUNTING CLAMP TO BRACKET AND TO FRAME
16
NUT BRACKET TO BRACKET
16
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
17
HOLLOW SCREW , Replaced By: N915036010108
20
SEAL RINGTO 000 553 03 05,000 553 18 05,
23
DISTRIBUTOR
24
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
24
SCREW-IN FITTING LINE CONNECTION
26
SCREW , FROM CHASSIS: 073 100001
29
WASHER , Replaced By: N009021006208
32
NUT , Replaced By: N910113006001
35
HOLLOW SCREW LINE CONNECTION
35
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
35
HOLLOW SCREW HEATING CONNECTION
38
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
41
SEAL RING LINE CONNECTION
41
SEAL RING LINE CONNECTION
44
WASHER BRACKET TO LEFT SIDE MEMBER
44
WASHER TRAILER PLUG SOCKET TO BRACKET
47
LOOM TIE LINE MOUNTING
47
LOOM TIE LINE MOUNTING 280 MM
50
BRAKE LINE COUPLING SUPPLY, RED "KNORR"
53
REPAIR KIT SUPPLY, RED TO 000 429 86 30
56
VALVE , REPAIR IMPOSSIBLE, Replaced By: A0044296144
59
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
62
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
65
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
68
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
71
SCREW SOLENOID VALVE TO BRACKET
74
WASHER TRAILER PLUG SOCKET TO BRACKET
77
NUT BRACKET TO BRACKET
77
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
80
T-FITTING AT TWO-WAY VALVE
83
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
86
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
89
O-RING CHECK VALVE TO AIR RESERVOIR
92
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
92
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
95
FITTING , Replaced By: A0029971172
95
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
