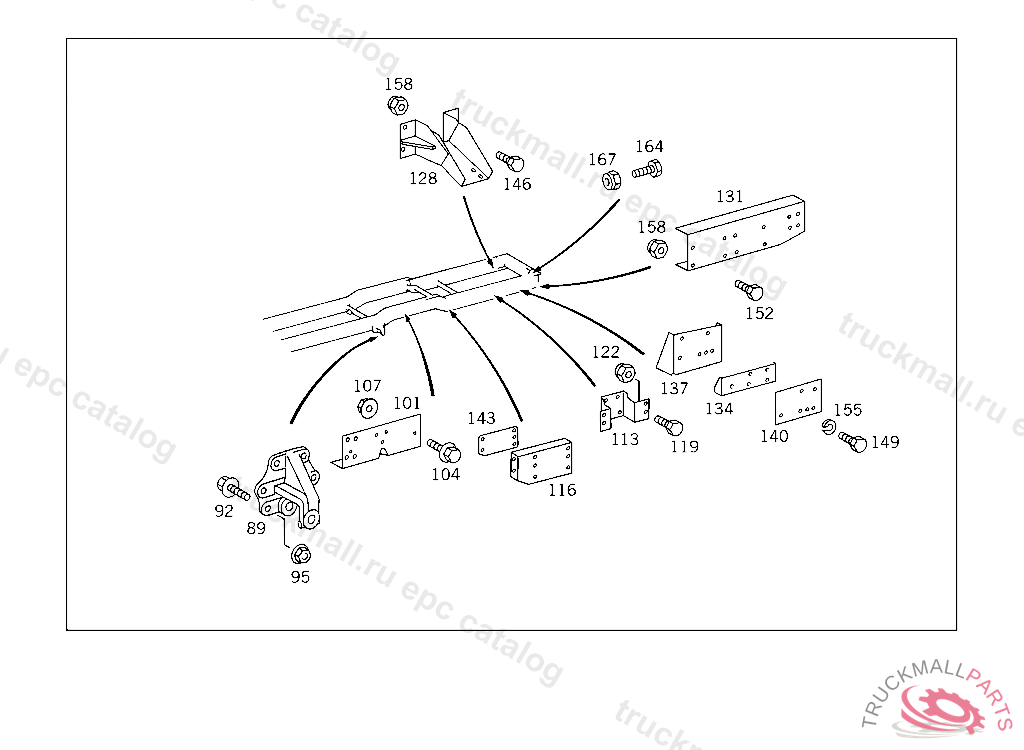

Поз.
Артикул
Описание
89
REAR SPRING BRACKET FRONT,D 150723
92
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
92
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
95
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
101
STAY REINFORCEMENT TO SIDE MEMBER 890 MM
101
STAY REINFORCEMENT TO SIDE MEMBER 890 MM
104
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 65
107
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
113
BRACKET AT FRAME
116
BRACKET RIGHT
116
BRACKET LEFT
119
SCREW , Replaced By: N308676014008
119
SCREW BRACKET TO FRAME
122
NUT , Replaced By: N910113014000
128
CONSOLE FRONT RIGHT
128
CONSOLE FRONT LEFT
131
TRUSS LEFT, TO BE ADAPTED DURING ASSEMBLY
131
TRUSS RIGHT
134
REINFORCEMENT ,D 027931
137
CONSOLE ENGINE LEFT REAR MOUNTING,D 233714
137
CONSOLE REAR RIGHT,D 233714
140
SHIM ENGINE LEFT REAR MOUNTING,D 124753
143
SHIM GUSSET PLATE TO CROSS MEMBER 3 MM
143
SHIM GUSSET PLATE TO CROSS MEMBER 5 MM
146
SCREW , Replaced By: N308676014008
149
SCREW BRACKET TO FRAME
152
SCREW BATTERY CASE TO SIDE MEMBER
155
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
158
NUT , Replaced By: N910113014000
164
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
167
NUT ALTERNATOR TO SUPPORT
999
SPACER TUBE AT SUPPORT ON CAB REAR SUSPENSION CROSS MEMBER, NOT USED
999
WASHER GROUND CABLE
