Поз.
Артикул
Описание

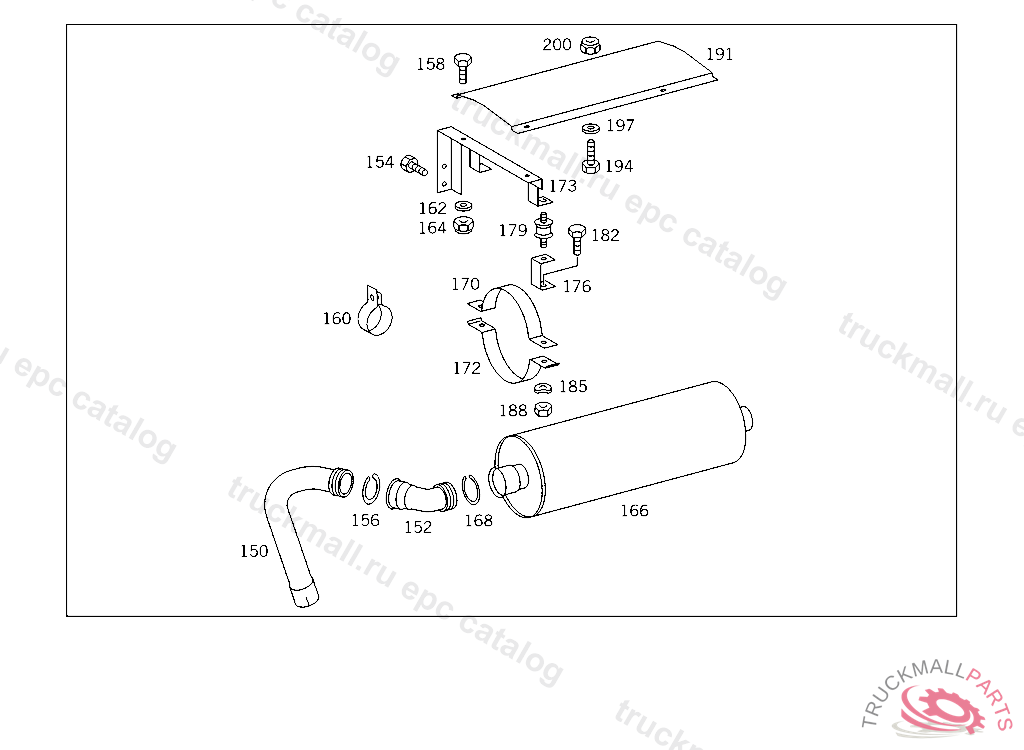

150
FRONT EXHAUST PIPE FRONT
152
FRONT EXHAUST PIPE FRONT
154
SCREW CROSS MEMBER TO SIDE MEMBERS
156
SEAL RING BETWEEN FRONT EXHAUST PIPE AND FLEXIBLE METAL TUBE
158
SCREW , Replaced By: N000933016082
160
CLAMP SLIDING PIECE TO EXHAUST PIPE
162
WASHER GROUND CABLE
164
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
166
EXHAUST MUFFLER WITH PIPE
168
SEAL RING BETWEEN FRONT EXHAUST PIPE AND FLEXIBLE METAL TUBE
170
CLAMP EXHAUST MUFFLER
172
CLAMP EXHAUST MUFFLER
173
BRACKET EXHAUST MUFFLER
176
BRACKET EXHAUST MUFFLER
179
RUBBER MOUNTING
182
SCREW BRACKET TO RIGHT SIDE MEMBER
182
SCREW , Replaced By: N304017008042
182
SCREW BRACKET TO SIDE MEMBER
185
LOCK WASHER , Replaced By: N912004010102
188
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
188
NUT BRACKET TO RETARDER
188
NUT , Replaced By: N910113014000
191
PROTECTIVE PLATE EXHAUST MUFFLER
194
SCREW AT BELL HOUSING
197
WASHER GROUND CABLE
200
NUT BRACKET TO SIDE MEMBER,XB209706
999
VALVE TWO-WAY VALVE
999
SHELL OVERFLOW VALVE
999
VALVE 3/2-WAY VALVE TO CAB FRONT PANEL
999
VALVE 3/2-WAY VALVE TO CAB FRONT PANEL
999
VALVE (PRESSURE LIMIT VALVE)
999
AIR SPRING BELLOWS
999
LINE FROM OIL TANK TO SUCTION LINE
999
HOSE FROM AIR CLEANER TO AIR INTAKE PIPE
999
BRACKET LINE MOUNTING
999
CABLE CONNECTOR
999
CLAMP HOSE TO RETARDER 60-80X13 MM
