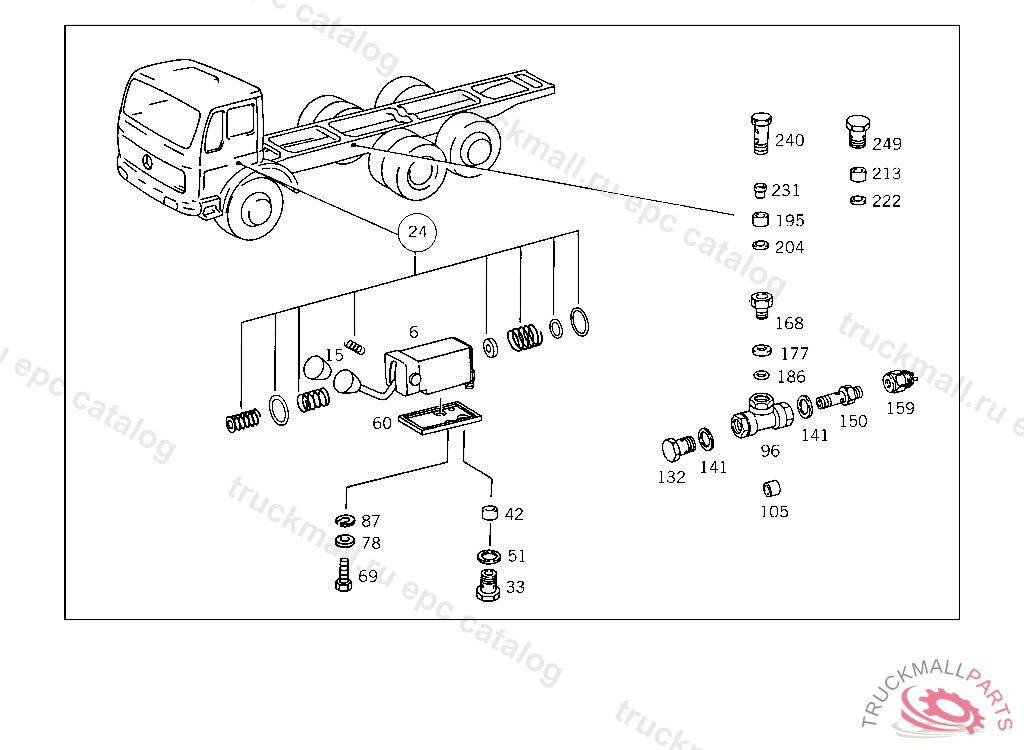

Поз.
Артикул
Описание
6
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034301781
15
HANDLETO 000 430 78 71
24
REPAIR KIT EXTENSIBLE BRAKE VALVE
24
REPAIR KIT , Replaced By: A0034305381
24
REPAIR KIT , Replaced By: A0014308760
24
REPAIR KIT , Replaced By: A0014300760
33
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
42
SPACER TUBE AT BRAKE VALVE, NOT USED
42
SPACER TUBE , Replaced By: A3124231453
51
SEAL RING FUEL LINE TO FEED PUMP
60
SHIM HAND BRAKE VALVE
69
SCREW , Replaced By: N304017006020
78
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
87
LOCK WASHER WIRE CABLE TO LEVER
96
VALVE TWO-WAY
96
VALVE TWO-WAY
105
VALVE BODYTO 002 429 95 44
105
VALVE , Replaced By: A0004291182
132
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
141
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
150
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
159
SWITCH EXHAUST BRAKE,K 251255
168
ADAPTER FITTING , Replaced By: A0069970072
177
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
186
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
195
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
204
O-RING CHECK VALVE TO AIR RESERVOIR
213
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
222
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
231
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
240
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
249
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
GASKETTO 003 429 22 44
999
RELAY STOP LIGHT
999
PLASTIC PIPE AERATION, ORDER BY THE METER
999
BANJO UNION EXTENSIBLE BRAKE VALVE,CONNECTION: "20"
999
BALLTO 003 429 22 44
999
FITTING (PARTS KIT),LINE RUPTURE
999
FITTING , Replaced By: A0029905971
999
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
999
HOLLOW SCREW HAND BRAKE VALVE,CONNECTION: "20"
999
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
999
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
