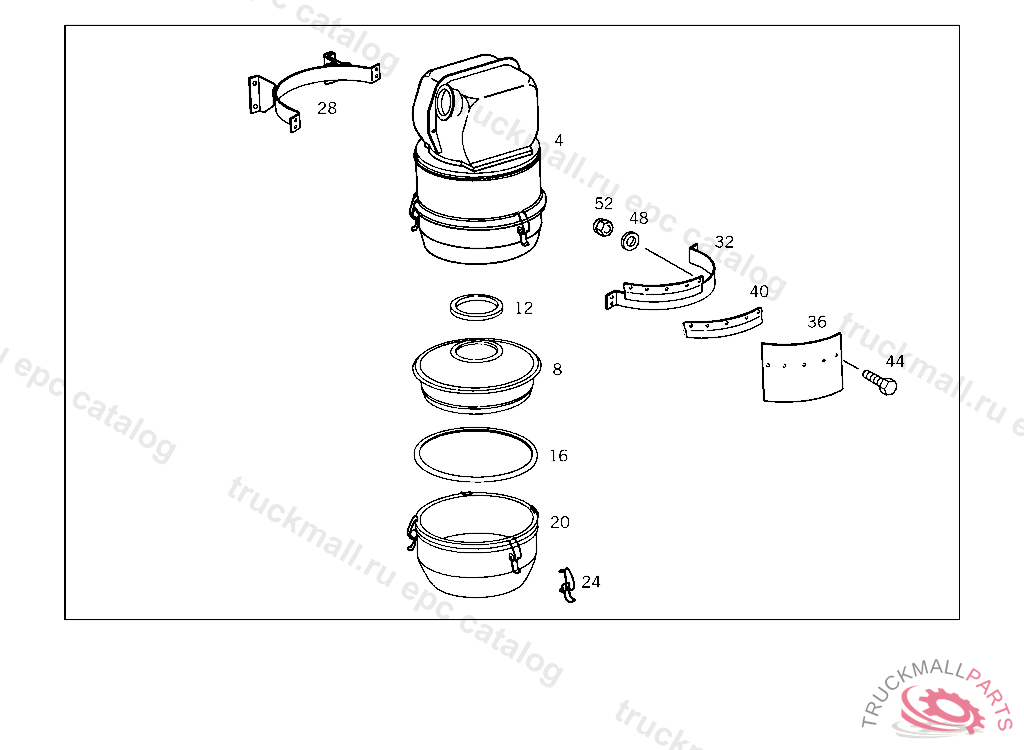

Поз.
Артикул
Описание
4
AIR CLEANER OIL BATH MANN U.HUMMEL
4
AIR CLEANER , Replaced By: A0130940102
4
AIR CLEANER OIL BATH MANN & HUMMEL
8
FILTER ELEMENT
8
FILTER ELEMENT
12
GASKET INSIDE
12
GASKET INSIDE
16
GASKET OUTSIDE
16
GASKET OUTSIDE
20
FILTER BOWL
24
FASTENER
28
SUPPORT AIR CLEANER, R.S.A. UNIQUE PART,TO BE ORDERED ONLY FROM M.B. SPARES
32
BRACKET , R.S.A. UNIQUE PART,TO BE ORDERED ONLY FROM M.B. SPARES
36
SPLASH GUARD MUD APRON TO SUPPORT
40
BRACKET MUD APRON,4 3710454 900515
44
SCREW , Replaced By: N304017006018
48
WASHER , Replaced By: N009021006208
52
NUT , Replaced By: N913004006001
52
NUT PUMP TO BRACKET
999
SUPPORT AIR CLEANER,6 001874
999
STRAP AIR CLEANER
999
PLUG MAINTENANCE OF AIR CLEANER
999
RING WARNING INDICATOR
999
AIR CLEANER"DONALDSON"
999
AIR CLEANER , Replaced By: A0140948802
999
AIR CLEANER
999
SNAP RING DIA., 128 MM
999
SNAP RING DIA., 150 MM
999
WARNING INDICATOR
999
FILTER BOWL
