Поз.
Артикул
Описание

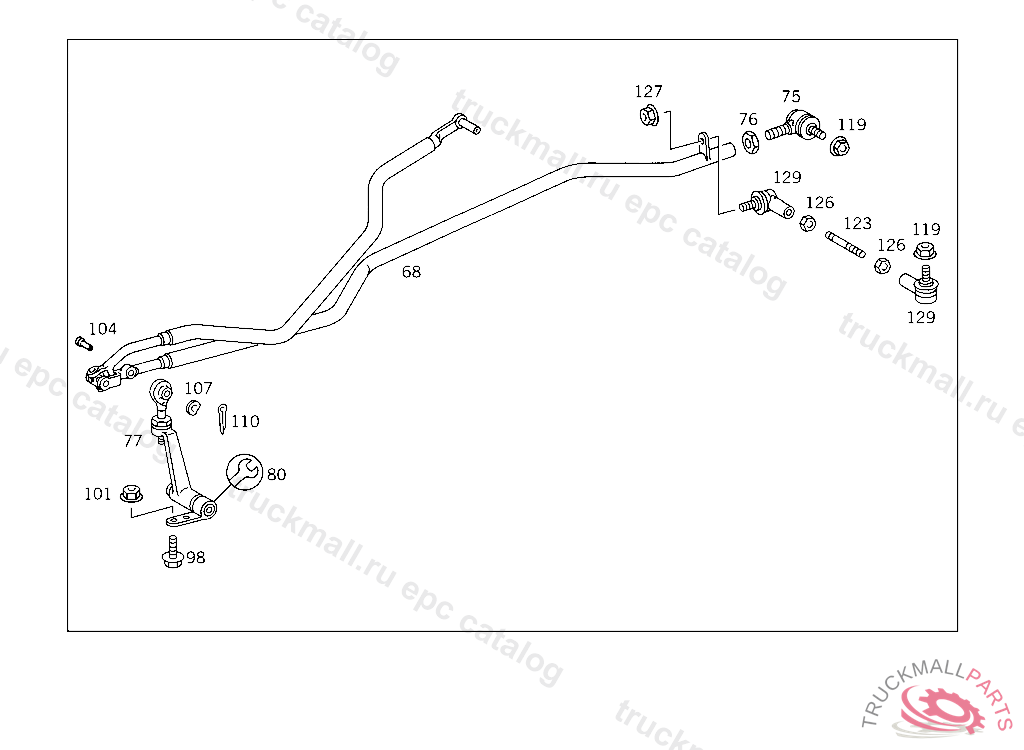

68
SHIFTING ROD
75
ARTICULATION PIECE LEVER,K 131522
76
NUT RELEASE BEARING LUBRICATION
77
BRACKET SHIFTING ROD
80
REPAIR KIT BRACKET
98
SCREW END PIECE TO EXHAUST PIPE M 12X30
101
HEXAGON NUT. NUT SPRING BOLT
101
NUT ALTERNATOR TO SUPPORT
104
PIN SHIFTING ROD TO BRACKET
107
SPRING WASHER. LOCK RING SHIFTING ROD TO BRACKET
110
COTTER PIN SHIFTING ROD TO BRACKET
119
NUT EXHAUST PIPE TO SIDE MEMBER
119
NUT BRACKET TO SIDE MEMBER,XB209706
123
SHIFTING ROD
126
NUT ANGLE TO FRAME
127
NUT EXHAUST PIPE TO SIDE MEMBER
129
ARTICULATION PIECE R.H. THREAD,K 131522
