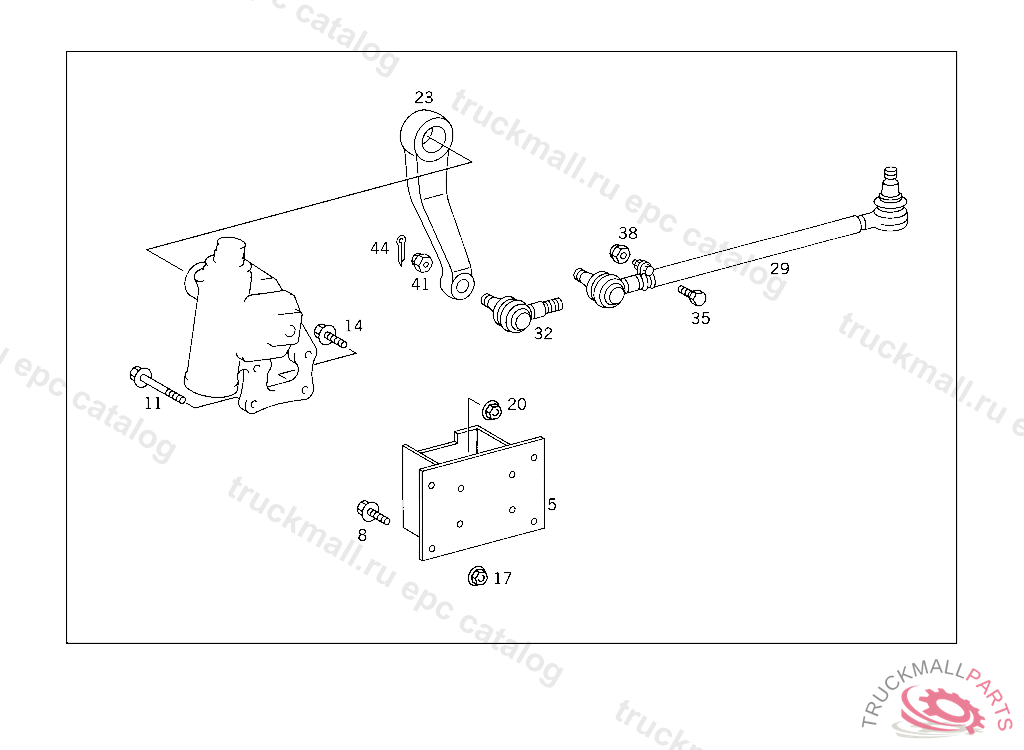

Поз.
Артикул
Описание
5
STEERING BRACKET AT FRAME,03.96
8
SCREW , Replaced By: N910105010009
8
SCREW BRACKET TO BUMPER,LEFT M 10X25
11
SCREW COVER TO TRANSMISSION CASE M 12X85
11
SCREW STEERING GEAR TO STEERING BRACKET M 12X85
14
SCREW , Replaced By: N910105012025
14
SCREW BEARING BRACKET TO FRONT AXLE
14
SCREW BEARING BRACKET TO SIDE MEMBER
14
SCREW STRUT TO CONSOLE
17
NUT EXHAUST PIPE TO SIDE MEMBER
17
NUT AIR CLEANER ELEMENT
20
NUT ALTERNATOR TO SUPPORT
20
NUT BRACKET TO BEARING BRACKET
23
PITMAN ARM
29
DRAG LINK RANGE OF DELIVERY,D 001393
32
JOINT , Replaced By: A0023301335
32
JOINT R.H. THREAD LEMFOERDER, UP TO CHASSIS 910369 EXCEPT FOR, 501456-599999
35
SCREW
38
NUT , Replaced By: N910113010002
41
NUT DRAG LINK TO PITMAN ARM
44
COTTER PIN
