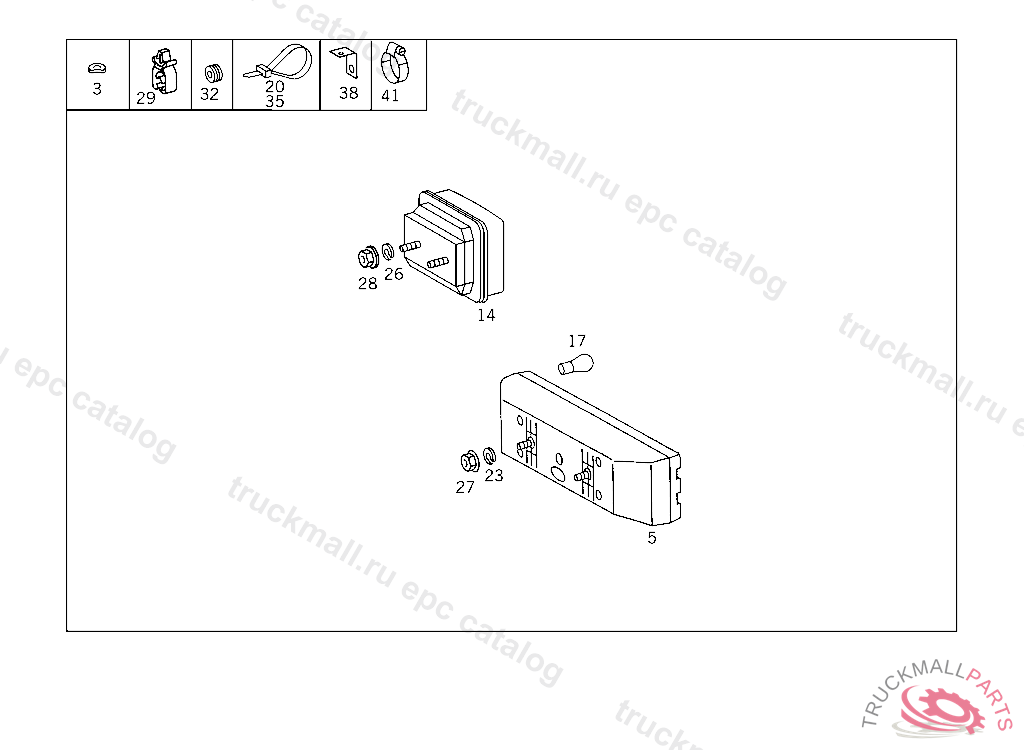

Поз.
Артикул
Описание
3
SPRING WASHER ELECTRIC CABLE TO HORN
5
TAIL LAMP RIGHT
5
TAIL LAMP LEFT
14
BACK-UP LAMP BACK-UP LIGHT
14
BACK-UP LAMP
17
BULB , Replaced By: N072601024192
17
BULB , Replaced By: N072601024704
20
LOOM TIE LINE MOUNTING
20
LOOM TIE
23
LOCK WASHER RAIL TO BATTERY SUPPORT
26
LOCK WASHER CABLE TO FUSE BOX
27
NUT TAIL LAMP TO BRACKET
27
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
28
NUT BALL SOCKET TO ROD
29
CLAMP ELECTRIC CABLE TO BRACKET
32
GROMMET AT SHOCK ABSORBER BRACKET AND AT FENDER BRACKET
35
LOOM TIE LINE MOUNTING 280 MM
38
BRACKET BATTERY CABLE TO CONSOLE,LEFT
41
LOOM TIE
