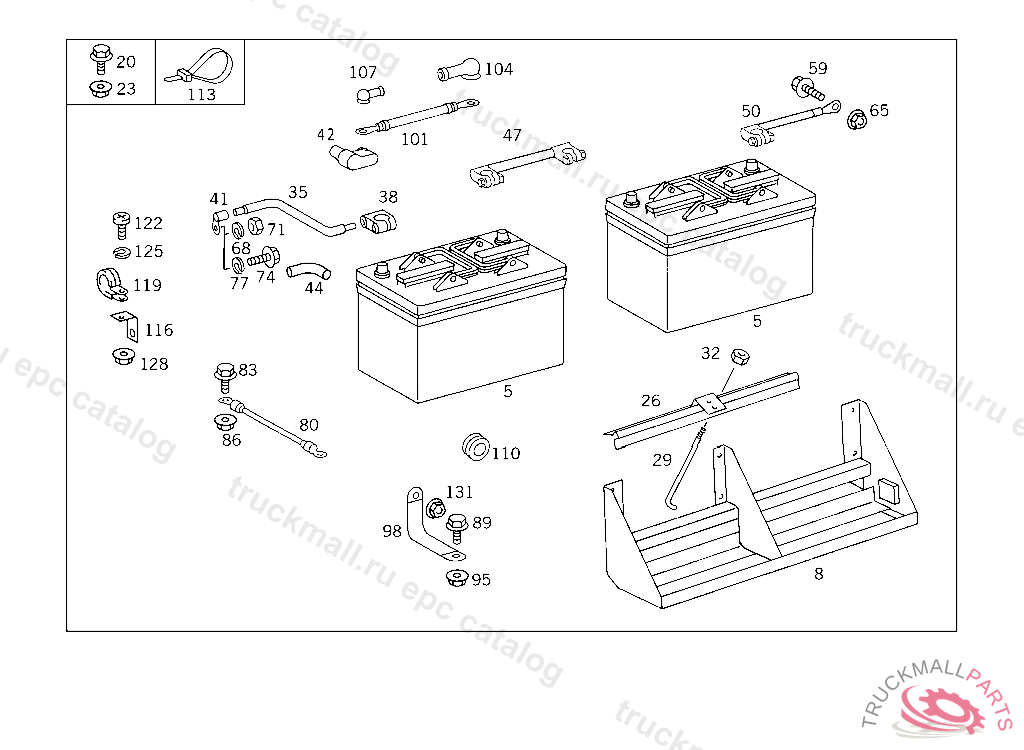

Поз.
Артикул
Описание
5
8
20
SCREW CENTRAL BEARING M 10X25
20
SCREW BRACKET TO BUMPER,LEFT M 10X25
20
SCREW , Replaced By: N910105010009
23
NUT EXHAUST PIPE TO SIDE MEMBER
23
NUT , Replaced By: N910113010000
26
29
32
35
ELECTRIC CABLE , Replaced By: A6735460011
38
38
SOLDERING TERMINAL FROM BATTERY TO STARTING MOTOR,D 001717
41
CABLE SHOE FROM BATTERY TO STARTING MOTOR
41
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
42
COVERING
44
GROMMET , Replaced By: A0009970881
47
50
59
SCREW , Replaced By: N910105010009
59
65
NUT ,A 006846
65
NUT BATTERY CABLE
68
LOCK WASHER FUSE
71
NUT
71
74
SCREW EXHAUST BRAKE SEPARATION POINT
74
SCREW CONNECTOR TO CAB
77
LOCK WASHER CABLE TO FUSE BOX
80
ELECTRIC CABLE GROUND CABLE
83
SCREW AT FILTER BRACKET
83
SCREW CLAMP TO BRACKET
86
NUT , Replaced By: N913004006001
86
NUT AT FILTER BRACKET
89
SCREW , Replaced By: N910105010009
89
SCREW BRACKET TO BUMPER,LEFT M 10X25
95
NUT , Replaced By: N910113010000
95
NUT EXHAUST PIPE TO SIDE MEMBER
98
GROUND STRAP FROM CYLINDER CRANKCASE TO FRAME SIDE MEMBER,5 382260
101
101
104
BOOT. PROTECTIVE CAP CONNECTION TO BATTERY CUT-OFF
107
BOOT , Replaced By: A0005463335
110
GROMMET LINE PASSAGE AT SIDE MEMBER
113
LOOM TIE LINE MOUNTING 280 MM
116
BRACKET BATTERY CABLE TO CONSOLE,LEFT
119
CLAMP LINE MOUNTING
122
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
125
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
128
NUT CLAMP TO BRACKET
128
NUT BALL SOCKET TO ROD
131
NUT BRACKET TO BRACKET
131
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
