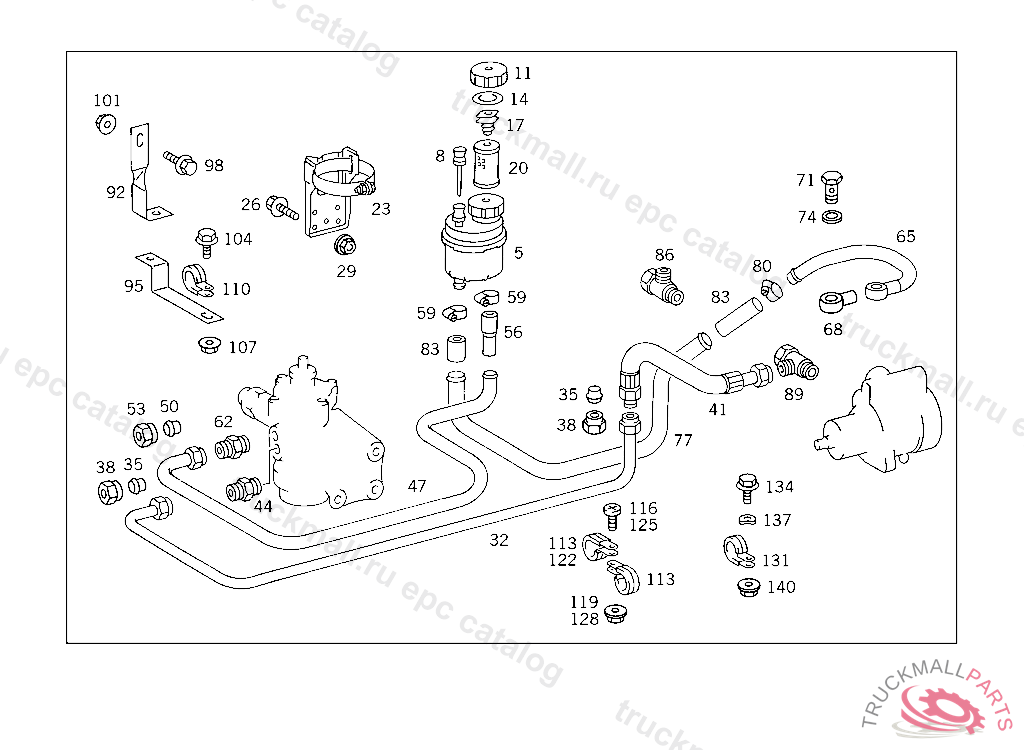

Поз.
Артикул
Описание
5
TANK OIL
8
OIL DIPSTICK , Replaced By: A0004660867
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER
23
BRACKET OIL TANK
26
SCREW , Replaced By: N910105010009
29
NUT EXHAUST PIPE TO SIDE MEMBER
32
LINE DELIVERY LINE
35
CUTTING RING. GLAND LINE CONNECTION
38
NUT. UNION NUT LINE CONNECTION
41
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
41
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
44
SCREW-IN FITTING LINE CONNECTION TO TRANSMISSION
47
LINE RETURN LINE SA 088202/01
50
GLAND , Replaced By: A0019901967
53
UNION NUT LINE CONNECTION, Replaced By: N000000006239
56
HOSE ,K 055044
59
CLAMP LINE MOUNTING
62
SCREW-IN FITTING DELIVERY LINE TO PUMP
65
LINE SUCTION LINE,000535
68
BANJO UNION
71
HOLLOW SCREW AIR COMPRESSOR,CONNECTION: "2"
74
SEAL RING ENGINE AIR COMPRESSOR,CONNECTION: "20"
77
LINE SUCTION LINE
80
CLAMP LINE MOUNTING
83
HOSE SUCTION LINE SA 088202/01
86
SCREW CONNECTION SUCTION LINE TO OIL PUMP
89
SCREW CONNECTION DELIVERY LINE TO PUMP
92
BRACKET LINE MOUNTING
95
BRACKET LINE MOUNTING
98
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
101
NUT BRACKET TO BRACKET
104
SCREW LINE MOUNTING M 10X20
107
NUT EXHAUST PIPE TO SIDE MEMBER
110
CLAMP BRAKE HOSE BRACKET
110
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
113
CLAMP , Replaced By: N916016010211
116
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
119
NUT AT FILTER BRACKET
122
CLAMP , Replaced By: N916016010211
125
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
128
NUT AT FILTER BRACKET
131
CLAMP , Replaced By: N916016010211
131
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
134
SCREW , Replaced By: N910105006023
137
SPRING WASHER CABLE TO ALTERNATOR
140
NUT BALL SOCKET TO ROD
999
LINE DELIVERY LINE,09.2000
999
BRACKET LINE MOUNTING SA 088202/01
999
