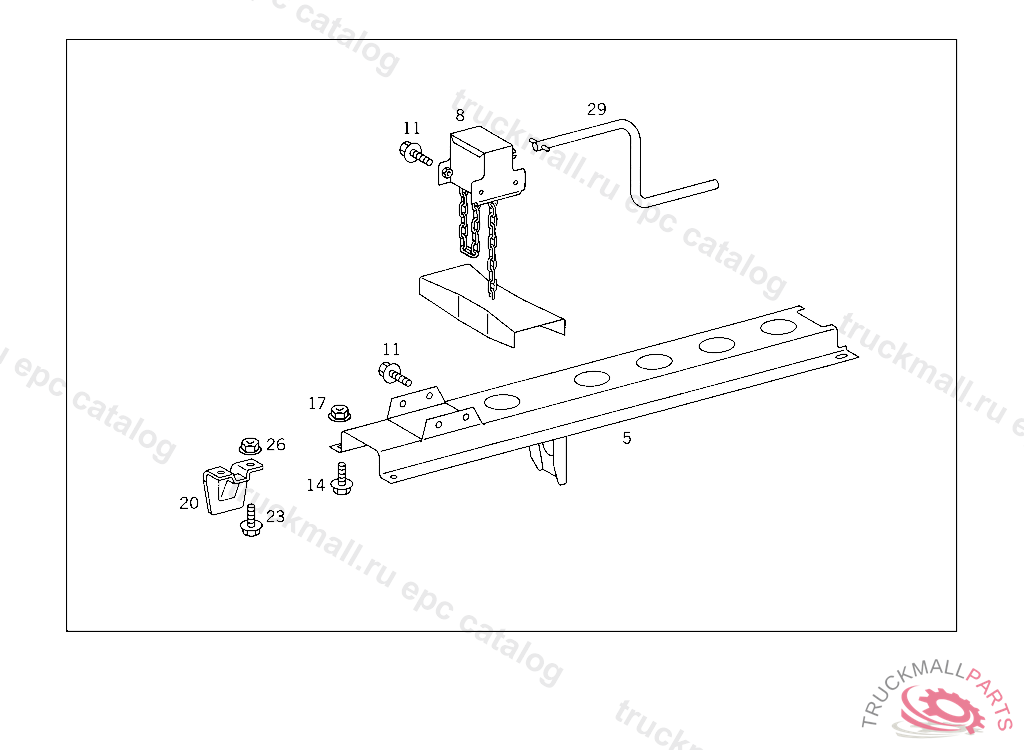

Поз.
Артикул
Описание
5
BRACKET SPARE WHEEL CARRIER
8
SPARE WHEEL HOIST , : 002320
11
SCREW STOP TO BATTERY CASE
14
SCREW CENTRAL BEARING M 10X25
17
NUT EXHAUST PIPE TO SIDE MEMBER
17
NUT , Replaced By: N910113010000
20
WEB
23
SCREW CENTRAL BEARING M 10X25
23
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
26
NUT , Replaced By: N910113010000
26
NUT EXHAUST PIPE TO SIDE MEMBER
29
CRANK
