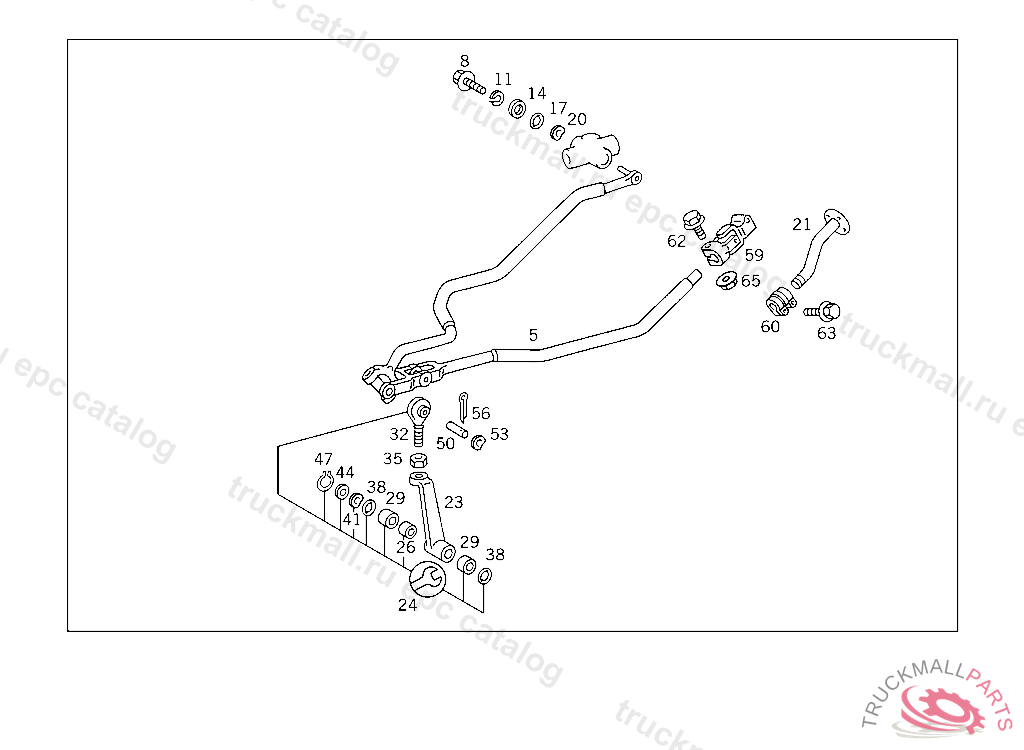

Поз.
Артикул
Описание
5
SHIFTING ROD BOTTOM
8
SCREW , Replaced By: N910105010009
8
SCREW BRACKET TO SIDE MEMBER
11
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
14
WASHER LEVER TO BRACKET 30X10.5X4 MM
17
SEAL RING LEVER BEARING
20
SPRING WASHER LEVER TO BRACKET
23
BRACKET SHIFTING ROD
24
REPAIR KIT BRACKET
26
BUSHING BRACKET TO STEERING BRACKET
29
NEEDLE BEARING
29
NEEDLE BEARING
32
JOINT SHIFTING ROD
32
JOINT SHIFTING ROD
35
NUT , Replaced By: N304035012000
35
NUT JOINT TO BRACKET
38
SEAL RING LEVER BEARING
41
SPRING WASHER LEVER TO BRACKET
44
WASHER BRACKET TO STEERING BRACKET
47
LOCK RING , Replaced By: A0079942041
50
PIN SHIFTING ROD TO BRACKET
53
SPRING WASHER. LOCK RING SHIFTING ROD TO BRACKET
56
COTTER PIN SHIFTING ROD TO BRACKET
59
JOINT REAR SHIFTING ROD
62
SCREW STRUT TO FRAME, LEFT
62
SCREW SHIFTING ROD TO JOINT
65
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
65
NUT EXHAUST PIPE TO SIDE MEMBER
