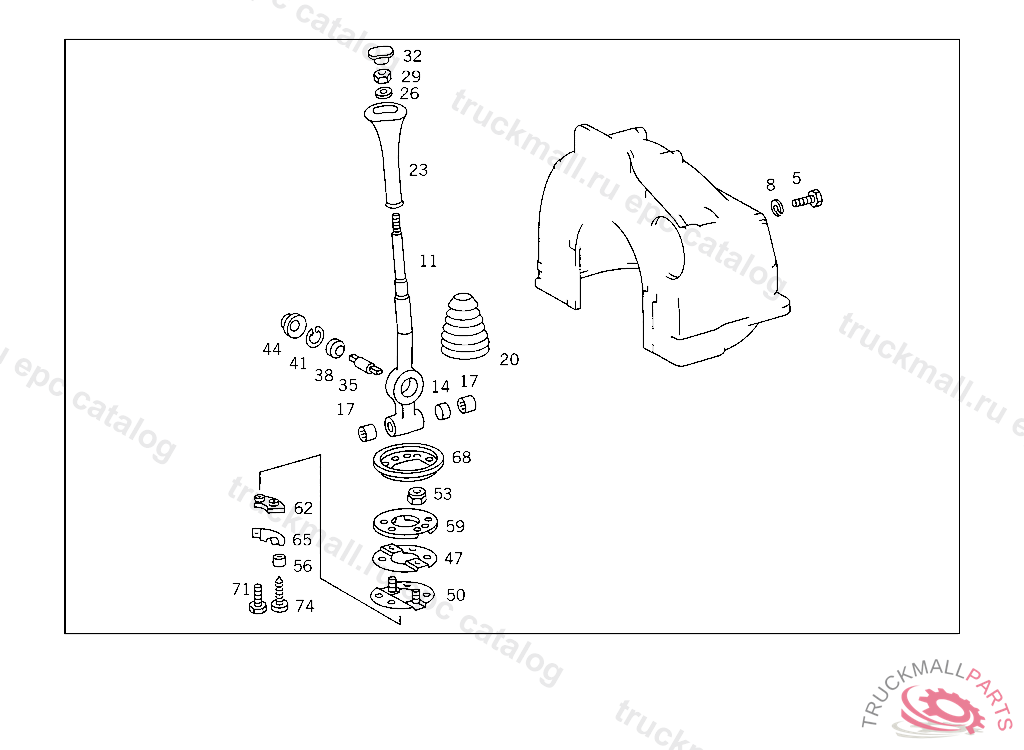

Поз.
Артикул
Описание
5
SCREW BRACKET TO RIGHT SIDE MEMBER
8
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
11
SHIFT LEVER
14
BUSHING
17
NEEDLE BEARING
17
NEEDLE BEARING
20
BOOT SHIFTING LEVER
23
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
26
WASHER GROUND CABLE
29
NUT , Replaced By: N308675010000
32
COVER FIVE-SPEED, SHIFT LEVER KNOB
35
PIN SHIFT LEVER BEARING,K040603
38
JOINT BEARING SHIFT LEVER BEARING,K040603
38
JOINT BEARING SHIFT LEVER BEARING,K040603
41
LOCK RING SHIFT LEVER BEARING
44
BOOT SHIFT LEVER BEARING
47
BRACKET SHIFT LEVER UPPER PART,K040603
50
BRACKET SHIFT LEVER LOWER PART,K040603
53
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
56
TUBE. BUSHING CAB FLOOR COVERING
59
RUBBER PAD SHIFT LEVER TO CAB FLOOR,K040603
62
RUBBER PAD SHIFT LEVER BEARING TO CAB FLOOR
65
BRACKET SHIFTING TRANSFER,LEFT
65
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
68
BRACKET BOOT
71
SCREW AIR DUCT TO CAB
74
SHEET METAL SCREW BRACKET TO CAB
