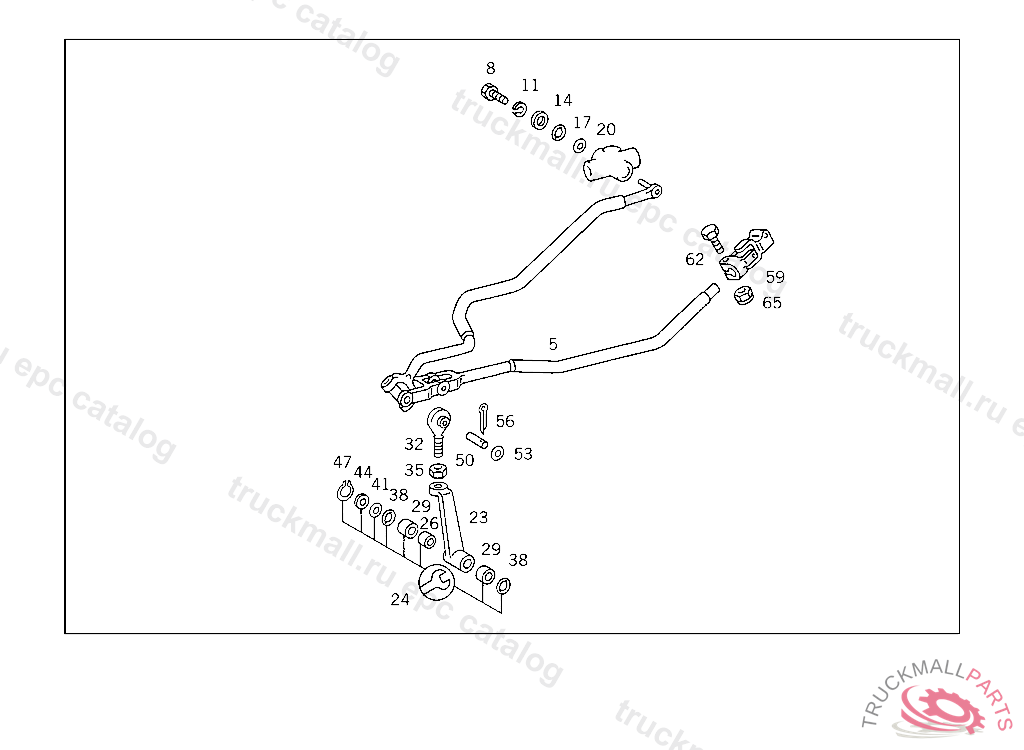

Поз.
Артикул
Описание
5
SHIFTING ROD BOTTOM
8
SCREW BRACKET TO SIDE MEMBER
11
LOCK WASHER , Replaced By: N912004010102
14
WASHER LEVER TO BRACKET 30X10.5X4 MM
17
SEAL RING LEVER BEARING
20
SPRING WASHER BRACKET TO TIMING CASE
23
BRACKET SHIFTING ROD
24
REPAIR KIT BRACKET
26
BUSHING BRACKET TO STEERING BRACKET
29
NEEDLE BEARING
29
NEEDLE BEARING
32
JOINT SHIFTING ROD
32
JOINT SHIFTING ROD
35
NUT JOINT TO BRACKET
38
SEAL RING LEVER BEARING
41
SPRING WASHER LEVER TO BRACKET
44
WASHER BRACKET TO STEERING BRACKET
47
LOCK RING , Replaced By: A0079942041
50
PIN SHIFTING ROD TO BRACKET
53
SPRING WASHER SHIFTING ROD TO BRACKET
56
COTTER PIN CYLINDER TO BRACKET
59
JOINT REAR SHIFTING ROD
62
SCREW SHIFTING ROD TO JOINT
65
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
