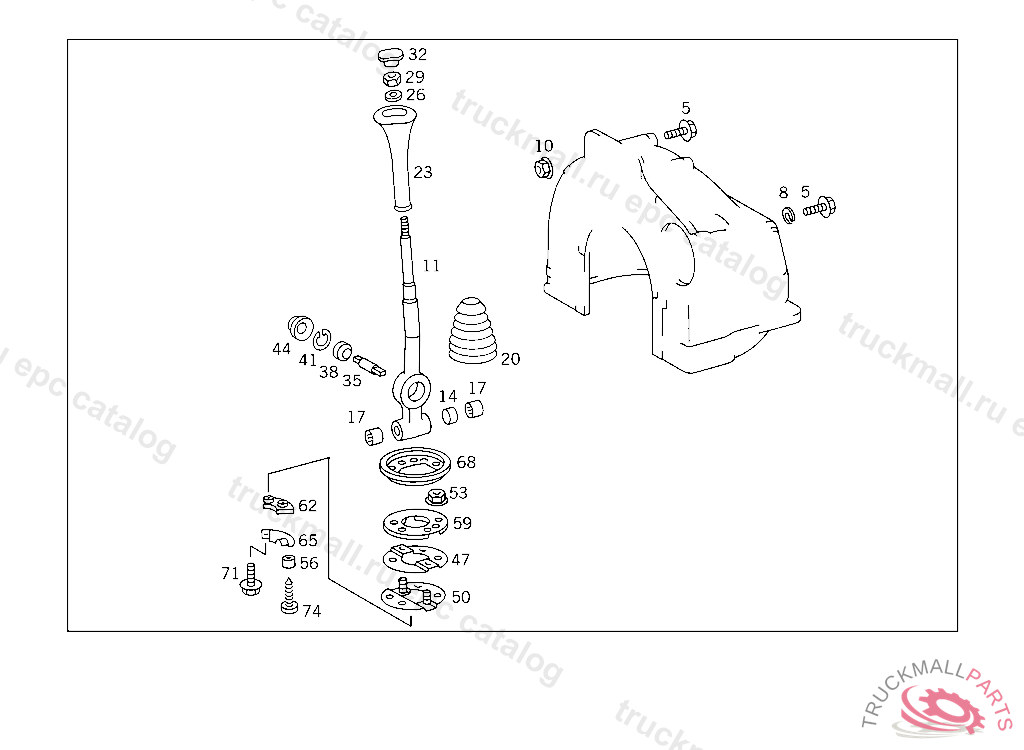

Поз.
Артикул
Описание
5
SCREW SHIFTING TUBE TO TRANSMISSION
10
NUT BRACKET TO BRACKET
11
SHIFT LEVER
14
BUSHING
17
NEEDLE BEARING
17
NEEDLE BEARING
20
BOOT SHIFTING LEVER
23
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
26
WASHER GROUND CABLE
29
NUT , Replaced By: N308675010000
32
COVER 6-SPEED,SHIFT LEVER KNOB
35
PIN SHIFT LEVER BEARING,K040603
38
JOINT BEARING SHIFT LEVER BEARING,K040603
38
JOINT BEARING SHIFT LEVER BEARING,K040603
41
LOCK RING SHIFT LEVER BEARING
44
BOOT SHIFT LEVER BEARING
47
BRACKET SHIFT LEVER UPPER PART,K040603
50
BRACKET SHIFT LEVER LOWER PART,K040603
53
NUT BRACKET TO BRACKET
53
NUT , Replaced By: N913004008001
56
TUBE. BUSHING CAB FLOOR COVERING
59
RUBBER PAD SHIFT LEVER TO CAB FLOOR,K040603
62
RUBBER PAD SHIFT LEVER BEARING TO CAB FLOOR
65
BRACKET SHIFTING TRANSFER,LEFT
65
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
68
BRACKET BOOT
71
SCREW PUMP TO FRAME SIDE MEMBER M 8X40
71
SCREW PLUG SOCKET TO FRAME
74
SHEET METAL SCREW BRACKET TO CAB
