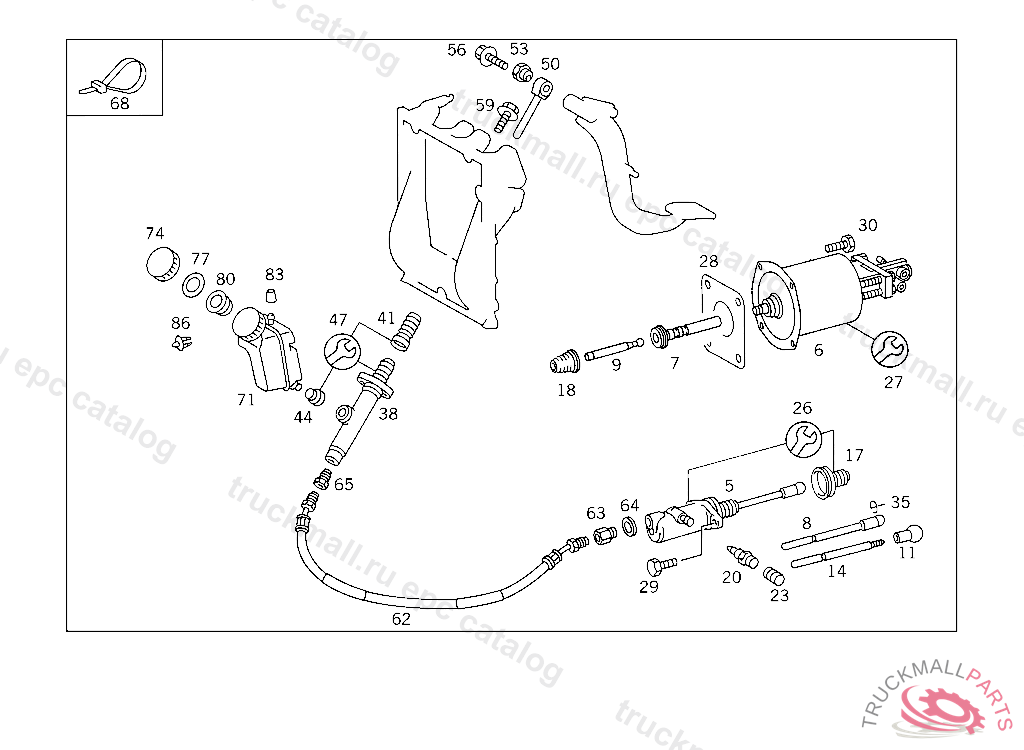

Поз.
Артикул
Описание
6
SLAVE CYLINDER CLUTCH ACTUATION
7
PISTONTO A 000 295 21 18
9
RODTO A 000 295 21 18
18
BOOT ,5 962906
27
REPAIR KIT PARTS KIT
27
REPAIR KIT MINOR
28
GASKET CLUTCH BOOSTER TO BELL HOUSING,RB012797
30
SCREW STEERING SHAFT BEARING TO CAB M 8X20
30
SCREW PIPE CLAMP
38
MASTER CYLINDER , Replaced By: A0012959706
41
BOOT
44
PLUG , Replaced By: A0009971186
44
PLUG
47
CYLINDER. REPAIR KIT CLUTCH MASTER CYLINDER,5 366604
50
ROD CLUTCH MASTER CYLINDER,5 366604
53
BUSHING PISTON ROD TO CLUTCH PEDAL
56
SCREW FITTING TO TRANSMISSION M8X32
56
SCREW BRACKET TO FRAME M 8X35
59
SCREW COVER PLATE TO BRACKET
59
SCREW AT FILTER BRACKET
62
PIPE , Replaced By: A6732950913
62
PIPE FROM MASTER CYLINDER TO SLAVE CYLINDER
63
FITTING CLUTCH BOOSTER
64
SEAL RINGTO 000 553 03 05,000 553 18 05,
65
UNION SCREW
65
68
LOOM TIE LINE MOUNTING 280 MM
71
RESERVOIR EXPANSION TANK
74
LOCKING CAP
77
SEAL RING
80
STRAINER
83
CAP RESERVOIR DE-AERATION
86
RIVET RESERVOIR TO FIRE WALL
