Главная
Mercedes
TRUCK
LP 1014 MBSA-RSA
397.372

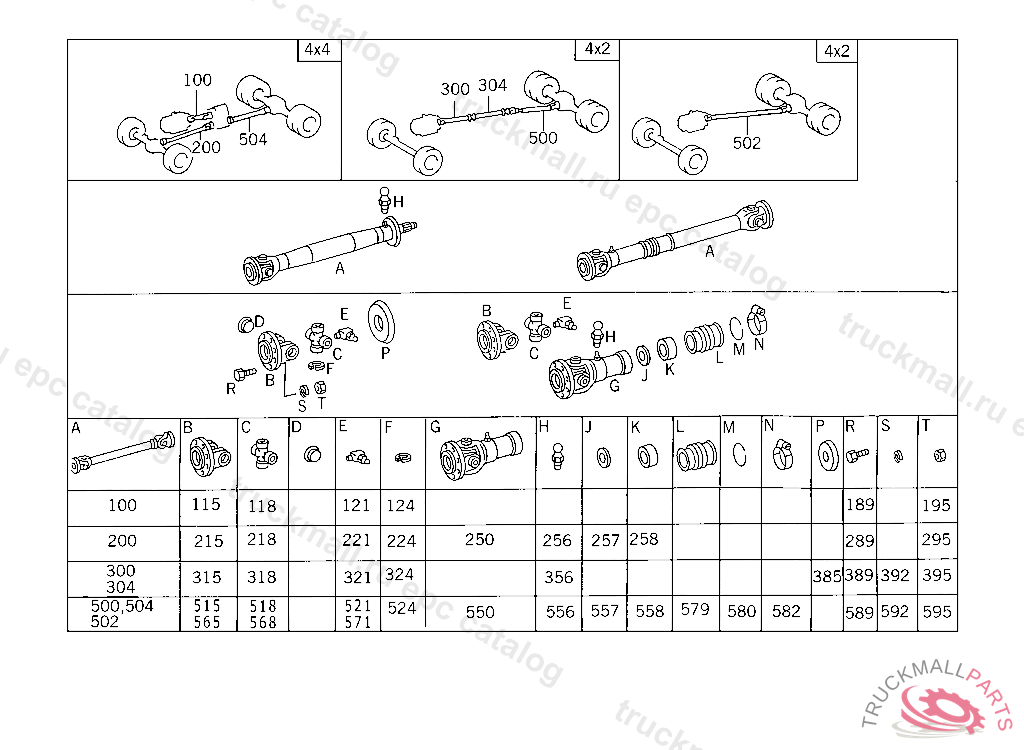

41 PROPELLER SHAFT
030 PROPELLER SHAFT IL. 1

Mercedes N071412008300 - Ниппель

LP 1014 MBSA-RSA 397.372

41 PROPELLER SHAFT - 030 PROPELLER SHAFT IL. 1

Поз.
Артикул
Описание
300
A3844100804
PROPELLER SHAFT FROM TRANSMISSION TO INTERMEDIATE BEARING 836 MM
304
A3844100104
PROPELLER SHAFT FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II 972 MM
315
A3524110011
DRIVE FLANGE
318
A3454107031
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
321
N071412008300
GREASE NIPPLE
321
A3459977288
GREASE NIPPLE
324
A3449947335
SNAP RING2.550 MM
324
A3129941135
SNAP RING2.500 MM
324
A3129941335
SNAP RING2.600 MM
324
A3449947735
SNAP RING2.650 MM
324
A3129941435
SNAP RING2.650 MM
324
A3129941635
SNAP RING2.550 MM
324
A3449947935
SNAP RING2.700 MM
324
A3449947235
SNAP RING2.525 MM
324
A3449947435
SNAP RING2.575 MM
324
A3449948135
SNAP RING2.750 MM
324
A3129941535
SNAP RING2.700 MM
324
A3449947835
SNAP RING2.675 MM
324
A3449947535
SNAP RING2.600 MM
324
A3449948035
SNAP RING2.725 MM
324
A3449947135
SNAP RING2.500 MM
324
A3129941735
SNAP RING2.750 MM
324
A3449947635
SNAP RING2.625 MM
356
N071412008100
GREASE NIPPLE INTERMEDIATE LEVER
385
A3524130061
PROTECTIVE CAP FRONT PROPELLER SHAFT
389
A3529904701
SCREW , Replaced By: A0079901001
389
A3529900401
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
395
N000934010042
NUT , Replaced By: N308673010001
395
N308673010001
HEXAGON NUT. NUT PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE
500
A3444101602
PROPELLER SHAFT FROM INTERMEDIATE BEARING II TO REAR AXLE 1775 MM
515
A3524110011
DRIVE FLANGE
518
A3454107031
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
521
N071412008300
GREASE NIPPLE
521
A3459977288
GREASE NIPPLE
524
A3449947335
SNAP RING2.550 MM
524
A3129941135
SNAP RING2.500 MM
524
A3129941335
SNAP RING2.600 MM
524
A3449947735
SNAP RING2.650 MM
524
A3129941435
SNAP RING2.650 MM
524
A3449947935
SNAP RING2.700 MM
524
A3129941635
SNAP RING2.550 MM
524
A3449947235
SNAP RING2.525 MM
524
A3449947435
SNAP RING2.575 MM
524
A3449948135
SNAP RING2.750 MM
524
A3449947135
SNAP RING2.500 MM
524
A3449948035
SNAP RING2.725 MM
524
A3449947835
SNAP RING2.675 MM
524
A3129941535
SNAP RING2.700 MM
524
A3449947535
SNAP RING2.600 MM
524
A3129941735
SNAP RING2.750 MM
524
A3449947635
SNAP RING2.625 MM
550
A3444100008
UNIVERSAL JOINT YOKE REAR PROPELLER SHAFT
556
N071412008100
GREASE NIPPLE INTERMEDIATE LEVER
557
A3374130080
SEAL RING , PROPELLER SHAFT WITH BOOT
558
A3214110158
SEAL HOLDER , PROPELLER SHAFT WITH BOOT
579
A3524100080
BOOT
579
A3454107280
BOOT REAR PROPELLER SHAFT
580
A3214110053
WIRE RING , WITH BOOT
582
N000000000674
CLAMP HOSE 70-90X13 MM
582
N916018070000
CLAMP
589
A3529900401
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
589
A3529904701
SCREW , Replaced By: A0079901001
595
N308673010001
HEXAGON NUT. NUT PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE
595
N000934010042
NUT , Replaced By: N308673010001
