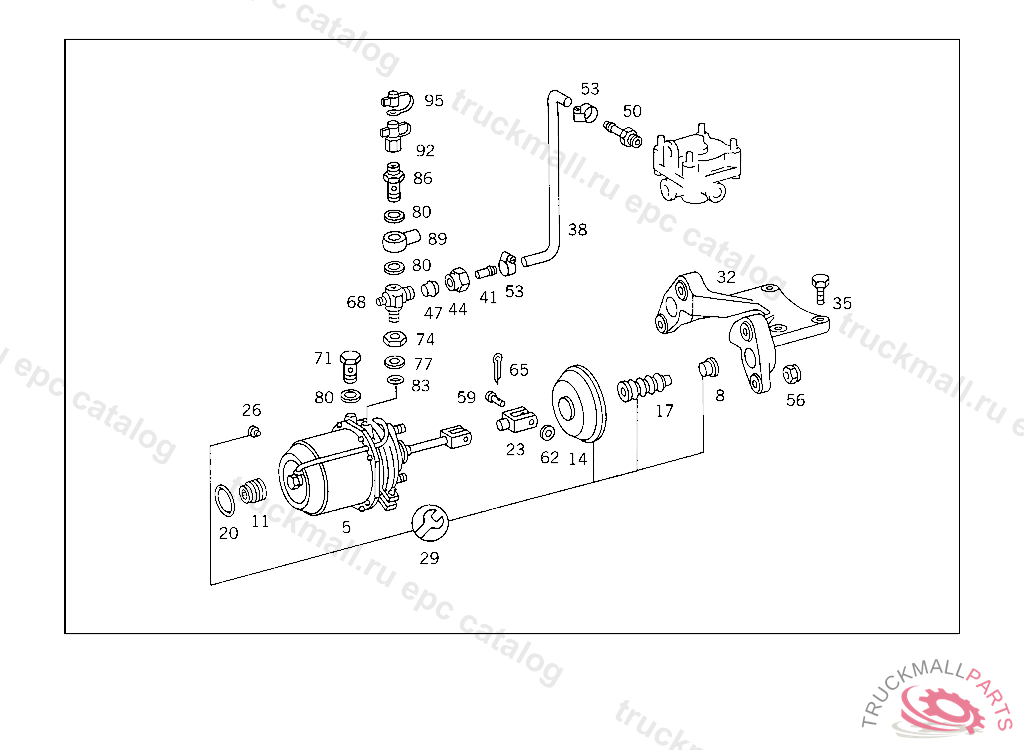

Поз.
Артикул
Описание
5
WHEEL BRAKE CYLINDER TRISTOP CYLINDER BOSCH
5
WHEEL BRAKE CYLINDER TRISTOP CYLINDER KNORR
5
WHEEL BRAKE CYLINDER TRISTOP CYLINDER WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
SEAL RINGKNORR
11
SEAL RINGKNORR
14
DIAPHRAGMTO 008 420 61 18,009 420 22 18
14
DIAPHRAGMTO 008 420 95 18,008 420 97 18,BOSCH
14
DIAPHRAGM , Replaced By: A0004314128
17
CUPWABCO
17
CUPTO 008 420 97 18, 008 420 90 18, BOSCH
17
PROTECTIVE CAPTO 008 420 62 18,KNORR
20
SEAL RINGKNORR
23
YOKETO 008 420 95 18,008 420 97 18,BOSCH
26
PLUGTO 009 420 22 18,008 420 20 18
29
REPAIR KIT SPRING LOAD ACCUMULATOR CYLINDER TO 008 420 20 18,KNORR
29
REPAIR KIT TRISTOP CYLINDER TO 008 420 95 18, 008 420 97 18, BOSCH
29
REPAIR KIT TRISTOP CYLINDER TO 006 420 25 18,WABCO
29
REPAIR KIT SPRING LOAD ACCUMULATOR PART TO 007 420 68 18,007 420 70 18,WABCO
29
REPAIR KIT DIAPHRAGM CYLINDER KNORR
32
BEARING BRACKET WHEEL CYLINDER,5 197195
35
SCREW BRACKET TO FRAME M 16X1.5X45
35
SCREW BEARING BRACKET AND PLATE TO FRAME M 16X1.5X40
38
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
41
FITTING DIAPHRAGM CYLINDER,CONNECTION:
44
UNION NUT LINE CONNECTION, Replaced By: N000000006239
47
GLAND , Replaced By: A0019901967
47
SEAL CONE LINE CONNECTION
50
FITTING DIAPHRAGM CYLINDER,CONNECTION:
53
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
53
CLAMP HOSE TO FITTING AND TO OIL TANK
56
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
59
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
62
WASHER , Replaced By: N000433015005
65
COTTER PIN STRAP TO SUPPORT
68
T-FITTING AIR RESERVOIR,CONNECTION: "31"
71
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
74
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
77
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
80
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
83
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
86
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
89
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
92
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
92
TEST CONNECTION
92
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
95
PLUG
