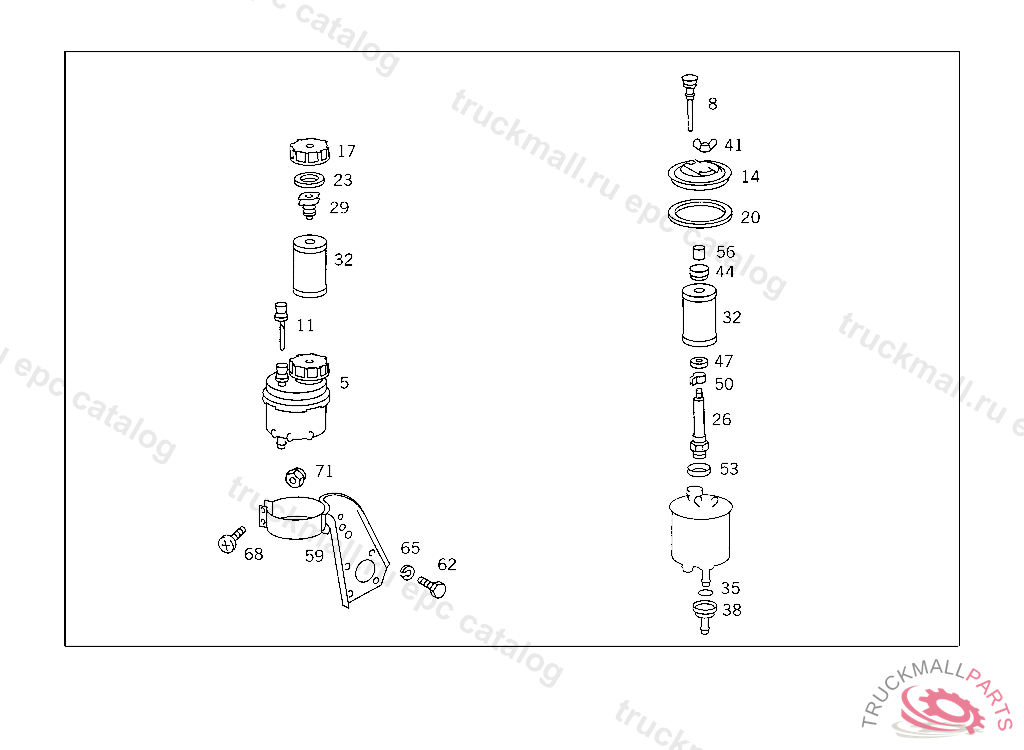

Поз.
Артикул
Описание
5
TANK OIL
5
TANK , Replaced By: A0004664502
8
PIPETO 000 466 38 02
11
OIL DIPSTICK , Replaced By: A0004660867
14
COVERTO 000 466 38 02
17
FILLER CAP
20
SEAL RINGTO 000 466 38 02
23
SEAL RING
26
FILTER CARRIERTO 000 466 38 02
29
BRACKET
32
FILTER
35
SEAL RINGTO 000 466 38 02
38
CONNECTORTO 000 466 38 02
41
NUTTO 000 466 38 02
44
CENTERING RINGTO 000 466 38 02
47
WASHER , Replaced By: A9402680552
50
SPACER TUBETO 000 466 38 02
53
COVER PLATETO 000 466 38 02
56
RUBBER SLEEVETO 000 466 38 02
59
BRACKET OIL TANK
62
SCREW , Replaced By: N910105010009
62
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
65
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
68
SCREW ROCKER PANEL TO STEP M 6X35
71
NUT AT FILTER BRACKET
71
NUT , Replaced By: N913002006009
