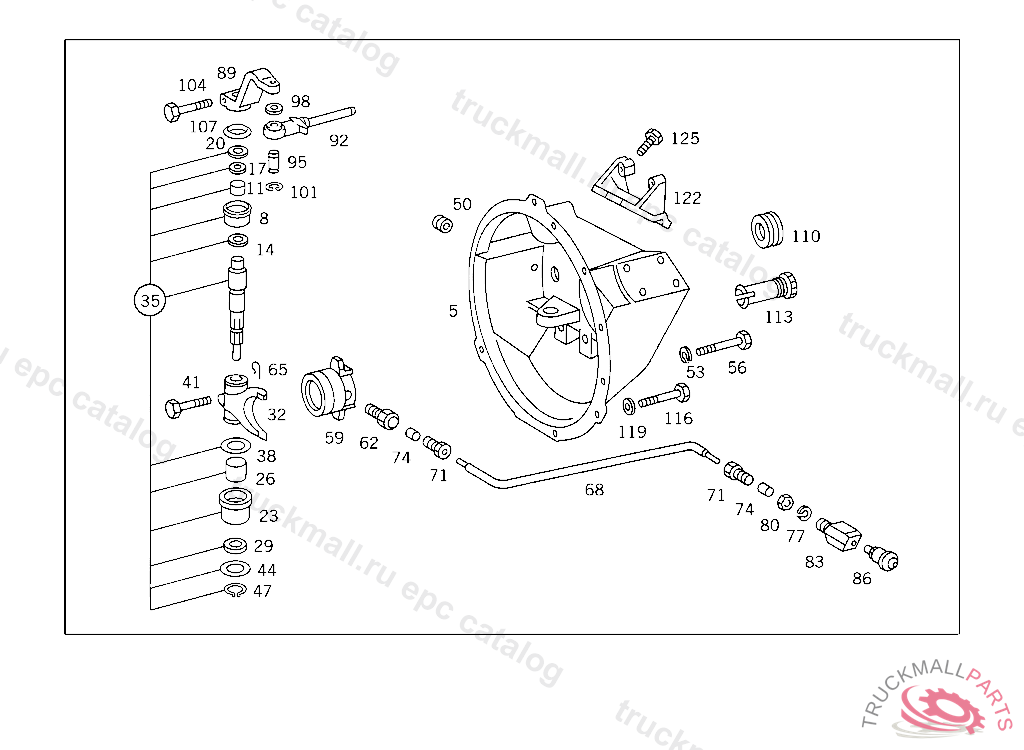

Поз.
Артикул
Описание
5
8
BUSHING RELEASE SHAFT,TOP
11
BUSHING RELEASE SHAFT,TOP 35X39 MM
14
SEAL RING RELEASE SHAFT,TOP
17
COVER PLATE RELEASE SHAFT,TOP
20
SEAL RING RELEASE SHAFT,BOTTOM 40X52X11 MM
23
BUSHING RELEASE SHAFT,BOTTOM
26
BUSHING RELEASE SHAFT,BOTTOM 24X27 MM
29
SEAL RING BOTTOM
32
RELEASE LEVER CLUTCH ACTUATION
35
SHAFT (PARTS KIT),RELEASE SHAFT
38
WASHER AS REQUIRED 1.00 MM
38
WASHER AS REQUIRED 1.3 MM
38
WASHER AS REQUIRED 0.80 MM
38
WASHER AS REQUIRED 1.20 MM
41
SCREW RELEASE LEVER TO SHAFT
41
SCREW , Replaced By: N000933012102
44
SPACER WASHER RELEASE SHAFT,BOTTOM
47
LOCK RING RELEASE SHAFT,BOTTOM
50
PLUG BELL HOUSING
53
LOCK WASHER BELL HOUSING TO TRANSMISSION
56
SCREW SHOCK ABSORBER TO RAIL M 18X70
59
RELEASE BEARING
62
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
65
SPRING RELEASE BEARING TO RELEASE LEVER
68
HOSE RELEASE COLLAR LUBRICATION 220 MM
71
UNION SCREW RELEASE COLLAR LUBRICATION
74
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
77
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
80
NUT
80
NUT RELEASE BEARING LUBRICATION
83
GREASE NIPPLE RELEASE COLLAR LUBRICATION
86
CAP RELEASE BEARING LUBRICATION
89
LEVER
92
ROD END CLUTCH ACTUATION
95
PIN CLUTCH ACTUATION
98
SEAL RING CLUTCH ACTUATION
101
LOCK RINGTO 000 553 37 01,000 553 39 01,
104
SCREW PIPE ELBOW TO BRACKET M 10X50
104
SCREW (ARTICULATED ROD)
107
COVER RELEASE SHAFT,TOP
110
PLUG BELL HOUSING
113
PLUG BELL HOUSING
116
SCREW BRACKET TO FRAME M 10X45
119
WASHER , Replaced By: N000125010532
122
BRACKET CLUTCH ACTUATION
122
BRACKET , Replaced By: A3072950840
125
SCREW BRACKET TO SIDE MEMBER M10X30
