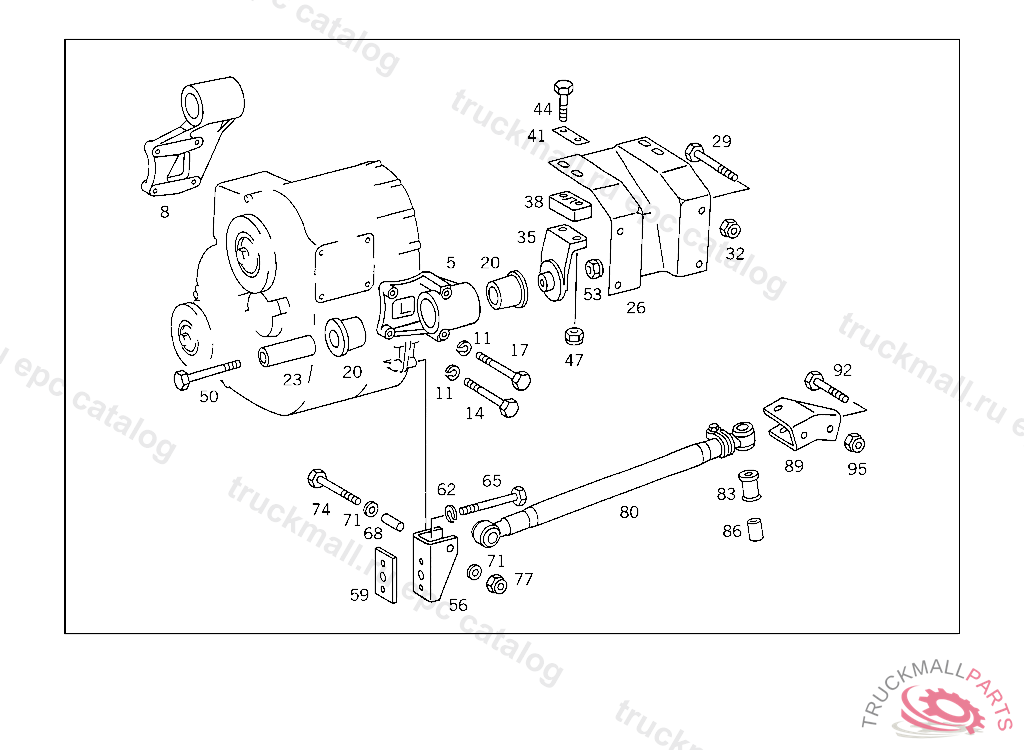

Поз.
Артикул
Описание
5
CONSOLE LEFT
8
CONSOLE RIGHT
11
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
14
SCREW FRONT SPRING REAR BRACKET TO SIDE MEMBER M 14X70
14
SCREW , Replaced By: N000961014158
17
SCREW BEARING TO TRANSFER CASE M 14X140
17
20
BEARING RUBBER MOUNT
23
SPACER TUBE RUBBER MOUNT
26
BRACKET TRANSFER CASE TO FRAME,RIGHT
26
BRACKET TRANSFER CASE TO FRAME,LEFT
29
SCREW BRACKET TO FRAME M 16X1.5X45
29
SCREW BEARING BRACKET AND PLATE TO FRAME M 16X1.5X40
32
NUT , Replaced By: N910113016001
32
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
35
35
35
BEARING TRANSFER CASE CONSOLE
38
38
SHIM BRACKET TO FRAME
41
SHIM BEARING BRACKET TO BRACKET
44
SCREW ENGINE TO ENGINE FRONT SUPPORT M16X135,5 548534
44
SCREW ROD TO BRACKET
44
SCREW RIGHT FRONT RUBBER MOUNTING M16X1,5X55
44
SCREW , Replaced By: N308765016004
44
SCREW ,5 903513, Replaced By: N308765016011
44
SCREW , Replaced By: N308676016007
47
NUT , Replaced By: N910113016001
47
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
50
SCREW , Replaced By: N910105016027
50
SCREW THRUST ARM TO SUPPORT M 16X195
53
NUT , Replaced By: N910113016001
53
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
56
59
SHIM ROD TO TRANSFER CASE
62
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
65
SCREW FRONT SPRING REAR BRACKET TO SIDE MEMBER M 14X70
65
SCREW ROD TO TRANSFER CASE M 14X75
68
SPACER TUBE PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER
71
WASHER , Replaced By: N007349013005
74
SCREW RUBBER BUFFER TO SUPPORT M 12X1.5X95
74
SCREW , Replaced By: N308765012003
77
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
77
NUT STRAP TO SUPPORT
80
ROD TRANSFER CASE TO FRAME
83
BUSHING
86
BUSHING
89
BRACKET ROD TO SIDE MEMBER
89
BRACKET ROD TO SIDE MEMBER
92
SCREW SUPPORT TO SIDE MEMBER M14X40
92
SCREW BRACKET TO SIDE MEMBER,5 597425
92
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
92
SCREW , Replaced By: A9429901304
95
NUT , Replaced By: N910113014000
95
NUT PARTICLE FILTER M14
