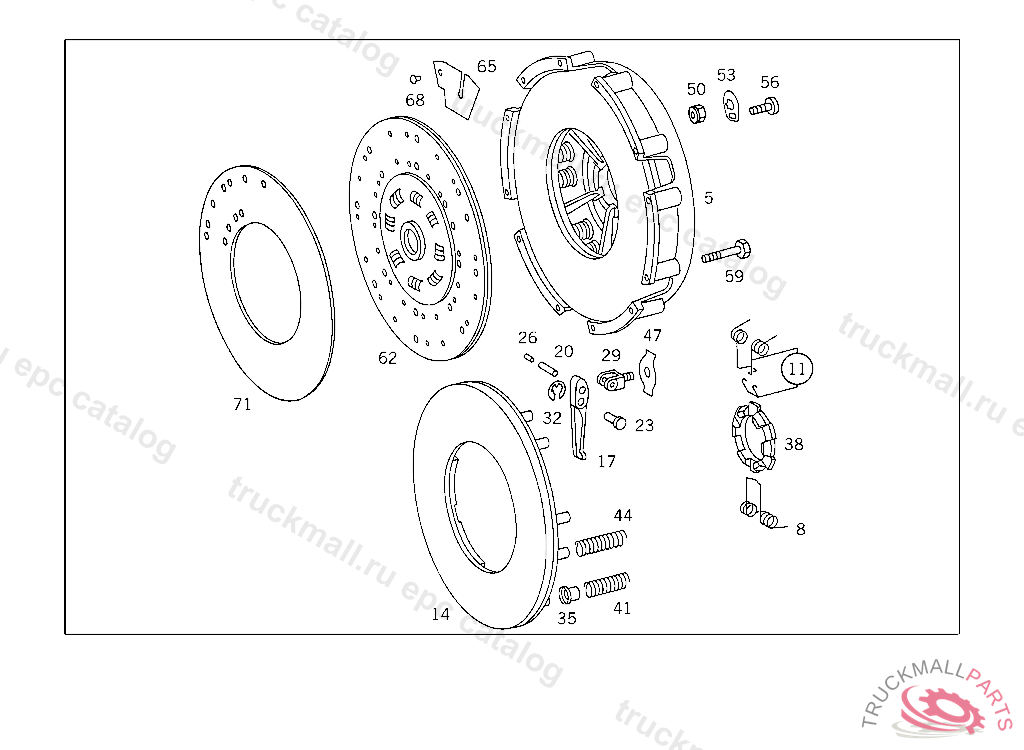

Поз.
Артикул
Описание
5
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
SPRING SUSPENDED BELOW LEAF SPRING
11
SPRING SUSPENDED BELOW LEAF SPRING
14
PRESSURE PLATE CLUTCH PRESSURE PLATE
17
RELEASE LEVER CLUTCH ACTUATION
20
SPINDLE RELEASE LEVER,CLUTCH PRESSURE PLATE
23
SPINDLE FOR BRACKETS
26
ROLLER FOR BEDDING THE LEVERS IN BRACKETS
29
BRACKET FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
32
LOCK PLATE RELEASE LEVER TO SHAFT
35
SLEEVE CLUTCH PRESSURE PLATE
38
FLANGE CLUTCH PRESSURE PLATE
41
PRESSURE SPRING SPRING STEEL WIRE DIA., 3.75 MM
44
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.00 MM
47
LEAF SPRING THIGH SPRING SUSPENDED BELOW LEAF SPRING
50
NUT , Replaced By: A0002523072
53
LOCK FOR BRACKETS
56
SCREW RELEASE LEVER,BRACKET
59
HEXAGON HEAD BOLT. SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING
62
CLUTCH DISC ASBESTOS-FREE LINING
62
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
65
LEAF SPRING
68
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
68
RIVET LEAF SPRING TO CLUTCH DISC
68
RIVET , Replaced By: A0002524875
71
CLUTCH LINING , Replaced By: A0012528310
71
CLUTCH LINING , Replaced By: A0022520010
