Поз.
Артикул
Описание
5

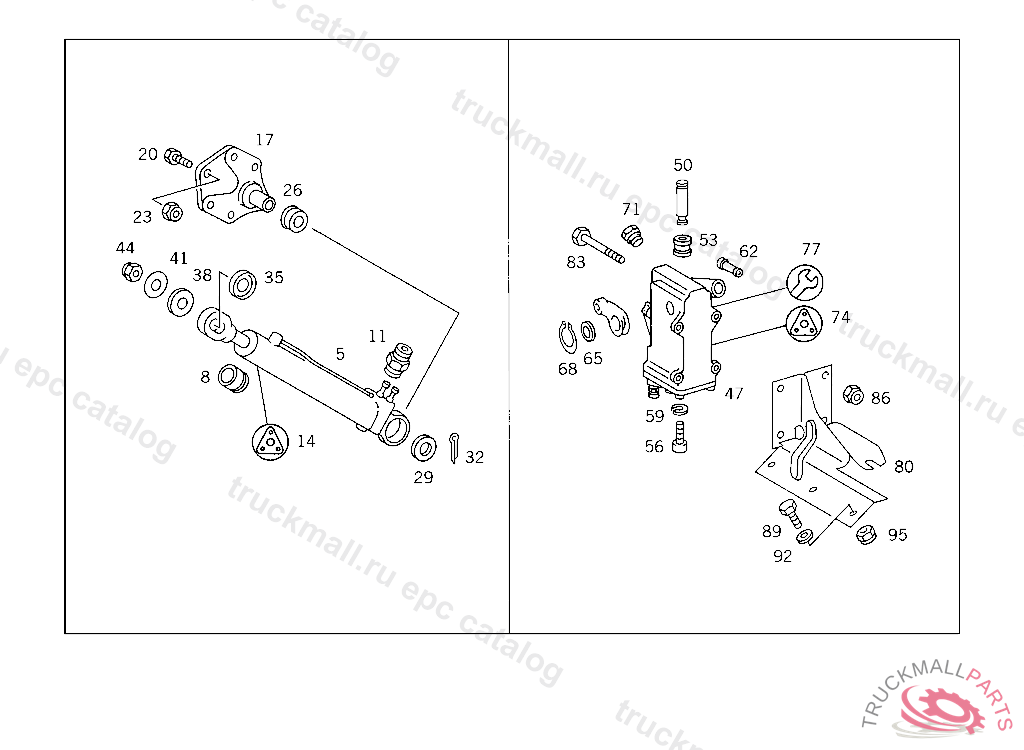

CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
5
CYLINDER , Replaced By: A0015533505
5
CYLINDER , Replaced By: A0015539505
8
GUIDEWEBER
11
FITTINGWEBER,TO 001 553 35 05
14
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
14
GASKET KIT HYDRAULIC CYLINDER WEBER
17
BEARING BRACKET HYDRAULIC CYLINDER
20
SCREW TORSION BAR TO CONSOLE
20
SCREW RIGHT FRONT RUBBER MOUNTING M16X1,5X50
20
SCREW BEARING BRACKET TO FRAME M 14X20, MODEL 415/416/417 FOR USE WITH SHORT CAB MERCEDES BENZ
20
SCREW BRACKET TO FRAME M 16X45
23
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
23
NUT , Replaced By: N910113016001
26
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
29
WASHER HYDRAULIC CYLINDER TO CAB
32
COTTER PIN6,3X36 MM
35
WASHER HYDRAULIC CYLINDER TO CAB
38
WASHER HYDRAULIC CYLINDER TO CAB
41
WASHER HYDRAULIC CYLINDER TO CAB
44
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
44
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
47
PUMP (HAND PUMP) POWER PACKER
47
PUMP (HAND PUMP) WEBER
50
PISTONTO 000 553 79 01,WEBER
53
VALVETO 000 553 79 01,WEBER
56
SCREW , Replaced By: N000000000190
59
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
62
FILTER
65
FITTED WASHER
68
LOCK RING
71
SCREW
71
SCREWTO 000 553 65 01,000 553 69 01,
74
GASKET KIT HAND PUMP
77
REPAIR KIT HAND PUMP TO 000 553 65 01,000 553 69 01,
80
BRACKET HAND PUMP
83
SCREW EXHAUST PIPE TO SIDE MEMBER
83
SCREW , Replaced By: N304017010002
86
NUT , Replaced By: N910113010000
86
NUT EXHAUST PIPE TO SIDE MEMBER
89
SCREW EXHAUST PIPE TO BRACKET
89
SCREW MOUNTING TO CONSOLE
89
SCREW BRACKET TO CAB CONSOLE,K 035197
89
SCREW CONSOLE TO SIDE MEMBER
92
WASHER
92
WASHER , Replaced By: N000125015019
95
NUT STRAP TO SUPPORT
95
NUT PARTICLE FILTER M14
95
NUT , Replaced By: N910113014001
95
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
999
SCREW-IN FITTING , Replaced By: A0029978472
