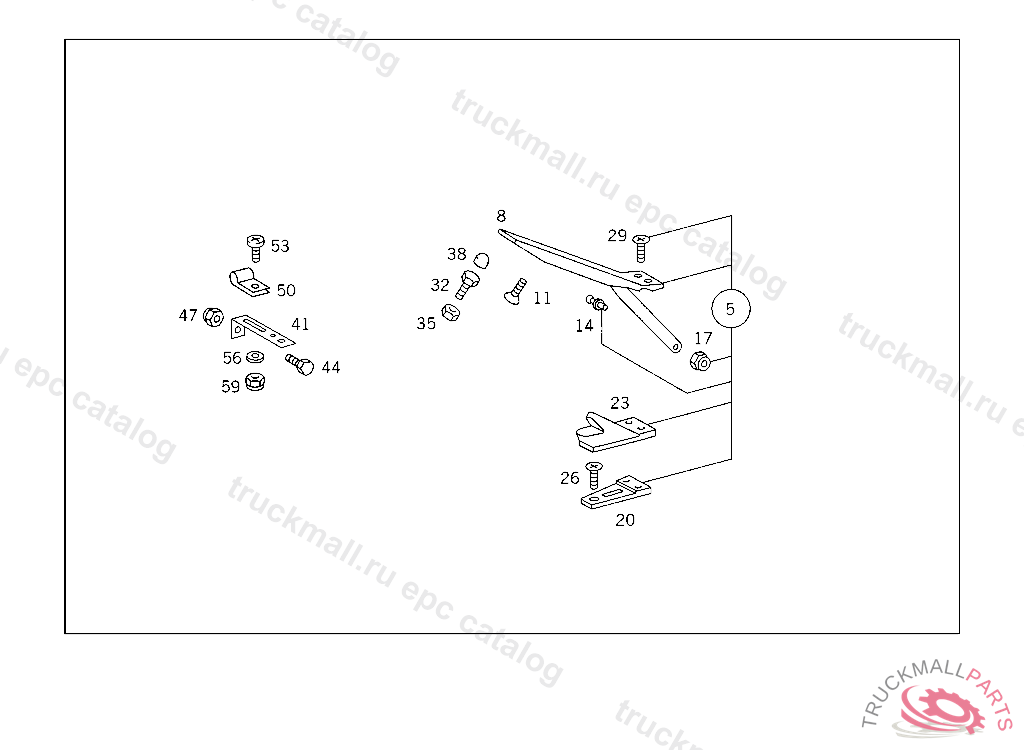

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
BALL PIVOT LOAD SENSOR
17
NUT AT FILTER BRACKET
17
NUT , Replaced By: N913004006001
20
SHIM ACCELERATOR PEDAL
23
BOOT ACCELERATOR PEDAL
26
SCREW ACCELERATOR PEDAL TO CAB M 6X25
29
SCREW ACCELERATOR PEDAL TO FLOOR PLATE M 6X20
32
SCREW. HEXAGON HEAD BOLT , Replaced By: A0019905504
35
NUT , Replaced By: N304032008006
38
STOP ACCELERATOR PEDAL
41
BRACKET LINE MOUNTING
44
SCREW , Replaced By: N910142008001
44
SCREW , Replaced By: N304017008021
47
NUT , Replaced By: N913004008001
47
NUT BRACKET TO BRACKET
50
CLAMP ,K 147121, Replaced By: N000000000319
53
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
56
WASHER , Replaced By: N009021006208
59
NUT AT FILTER BRACKET
59
NUT , Replaced By: N913004006001
