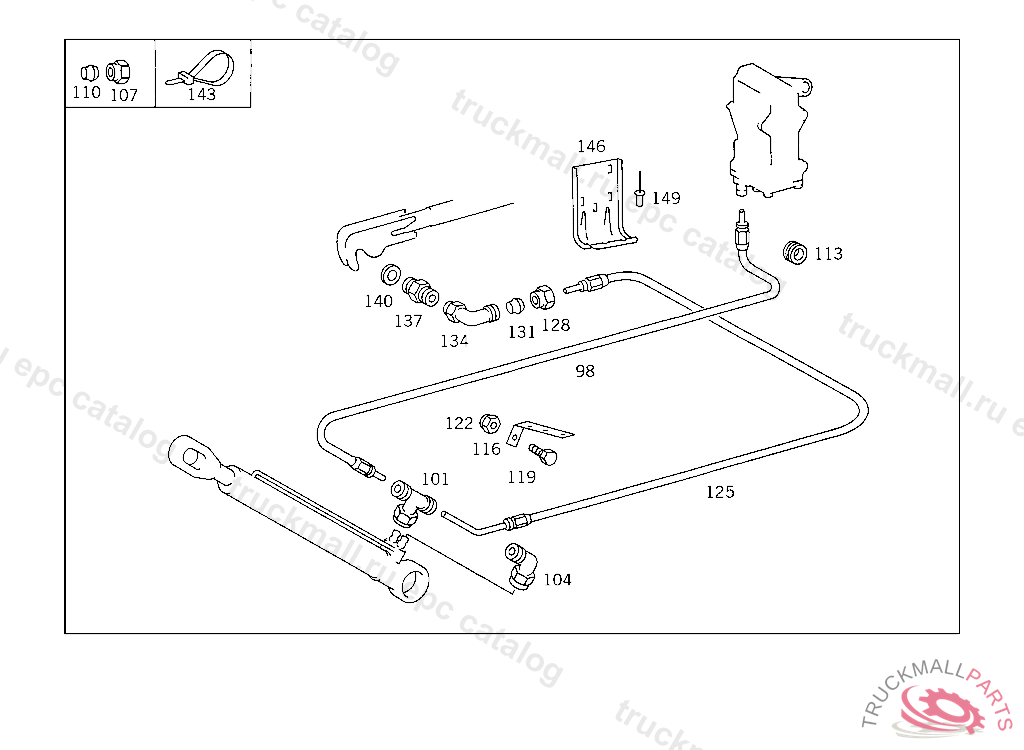

Поз.
Артикул
Описание
98
HOSE FROM CYLINDER TO PUMP
101
T-FITTING. FITTING AT INJECTION PUMP
104
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
107
UNION NUT
110
GLAND , Replaced By: A0019901667
113
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
116
BRACKET AT CAB SIDE MEMBER
119
SCREW END PIECE TO EXHAUST PIPE M 10X25
122
NUT , Replaced By: N910113010000
125
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL
128
UNION NUT
131
GLAND , Replaced By: A0019901667
134
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
137
FITTING 3/2-WAY VALVE,CONNECTION: "30"
140
SEAL RING LINE CONNECTION
143
LOOM TIE LINE MOUNTING
143
LOOM TIE LINE MOUNTING 280 MM
146
BRACKET HIGH PRESSURE HOSE TO CAB
149
RIVET , NOT USED
999
SCREW-IN FITTING , Replaced By: A0029978472
