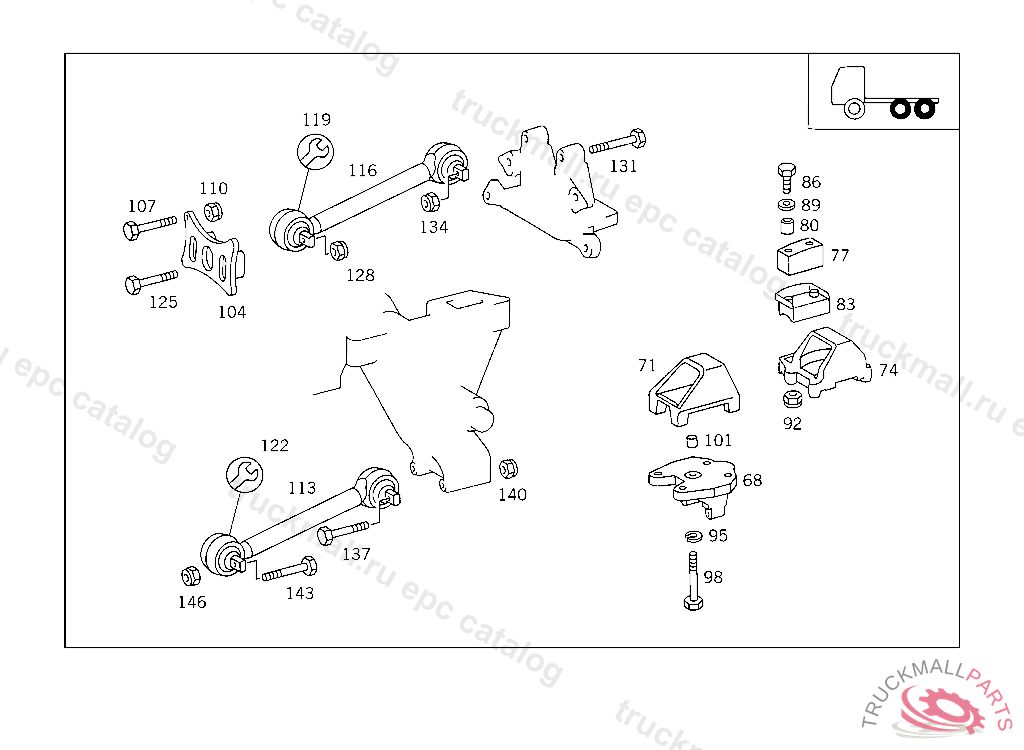

Поз.
Артикул
Описание
68
BEARING BRACKET REAR AXLES I AND II
68
BEARING BRACKET LOWER CONTROL ARM TO REAR AXLE
71
SPRING SEAT
74
SPRING SEAT REAR AXLE I,RIGHT, EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 921596
74
SPRING SEAT
74
SPRING SEAT REAR AXLE I,LEFT, EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 921596
77
RUBBER BUFFER SPRING SEAT AND BEARING BRACKET TO REAR AXLE
80
SPACER TUBE , Replaced By: A3805410053
86
SCREW REAR EXHAUST PIPE TO MUFFLER
89
WASHER , Replaced By: N007349010007
92
NUT EXHAUST PIPE TO SIDE MEMBER
92
NUT , Replaced By: N910113010000
95
LOCK WASHER DISC WHEELS TO FRONT AND REAR AXLES
95
WASHER CAST VERSION
98
SCREW BEARING TO STEERED AXLE
98
SCREW , Replaced By: A6599900001, +001A6599970126
101
PIN BEARING BRACKET
104
BEARING BRACKET
104
BEARING BRACKET
107
SCREW STABILIZER TO BEARING
107
SCREW TORSION BAR TO BEARING BRACKET M14X1.5X80
110
NUT , Replaced By: N910113014000
110
NUT PARTICLE FILTER M14
113
CONTROL ARM BOTTOM, INDIVIDUALLY EXCHANGEABLE ONLY IF MARKED WITH THE SAME TOLERANCE IN LENGTH, OTHERWISE BY PAIRS
113
CONTROL ARM BOTTOM, INDIVIDUALLY EXCHANGEABLE ONLY IF MARKED WITH THE SAME TOLERANCE IN LENGTH, OTHERWISE BY PAIRS
116
CONTROL ARM TOP
116
CONTROL ARM TOP
119
REPAIR KITTO 624 350 05 06
122
REPAIR KIT UPPER CONTROL ARM
125
SCREW LOWER CONTROL ARM TO CENTRAL BEARING BRACKET M 20X1,5X245
125
SCREW UPPER CONTROL ARM TO FRAME
128
NUT , Replaced By: N913004020003
128
NUT. HEXAGON NUT
131
SCREW UPPER CONTROL ARM TO REAR AXLE M 20X1,5X90
131
SCREW UPPER CONTROL ARM M20X1,5X85
134
NUT , Replaced By: N913004020003
134
NUT. HEXAGON NUT
137
SCREW UPPER CONTROL ARM TO FRAME
137
SCREW LOWER CONTROL ARM TO CENTRAL BEARING BRACKET M 20X1,5X245
140
NUT , Replaced By: N913004020003
140
NUT. HEXAGON NUT
143
SCREW , Replaced By: N308765020012
143
SCREW CONTROL ARM TO REAR AXLE
146
NUT , Replaced By: N913004020003
146
NUT. HEXAGON NUT
999
SPRING SEAT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 921596, Replaced By: A6593250119
999
SPRING SEAT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 921596, Replaced By: A6593250019
