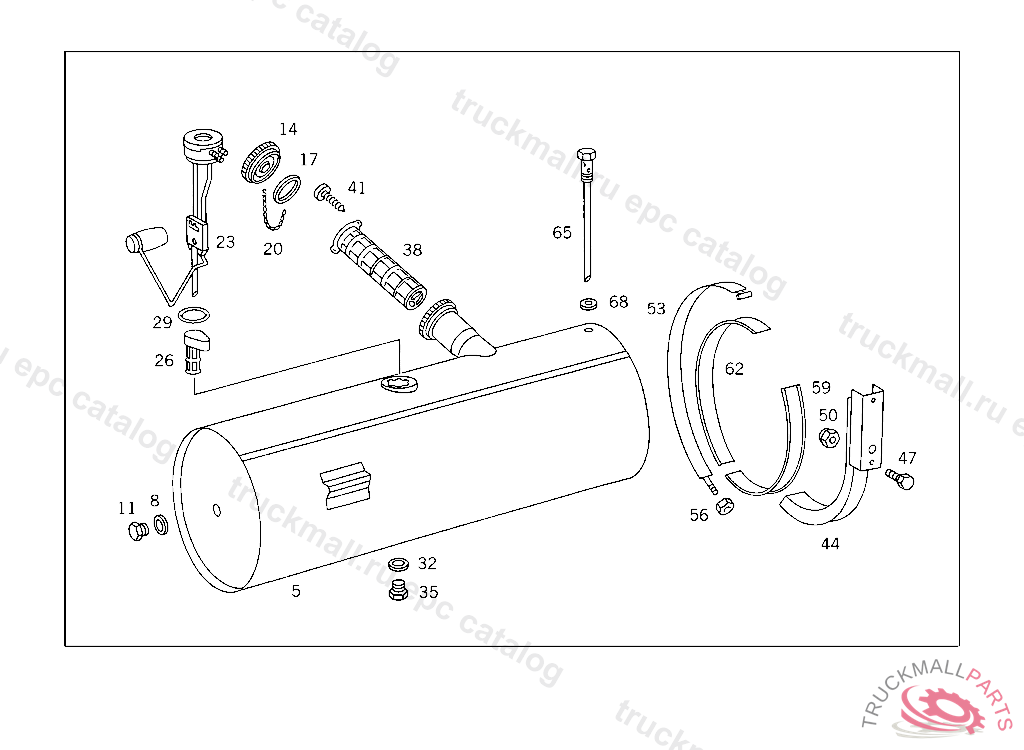

Поз.
Артикул
Описание
5
FUEL TANK200 L
8
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
11
SCREW PLUG AT TANK
14
FILLER CAP
17
SEAL RING
20
CHAIN FILLER CAP
23
SENDER UNIT FUEL GAUGE
26
FUEL STRAINER FUEL TANK,K 169122
29
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
32
SEAL RING FUEL LINE TO FEED PUMP
35
SCREW PLUG , Replaced By: N007604014110
38
FUEL STRAINER FILLER NECK,5 052323
38
FUEL STRAINER FILLER NECK,5 052323
41
SHEET METAL SCREW , Replaced By: N000000000459
41
SHEET METAL SCREW , Replaced By: N007981004339
44
SUPPORT FUEL TANK TO FRAME
47
SCREW , Replaced By: N000961014064
47
SCREW BRACKET TO SIDE MEMBER M 14X55,5 543914
47
SCREW BRACKET TO CAB CONSOLE,K 035197
50
NUT , Replaced By: N910113014001
50
NUT PARTICLE FILTER M14
53
STRAP FUEL TANK TO CONSOLE,5 149420
56
56
NUT STRAP TO SUPPORT,5 149419
59
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
62
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
65
68
SEAL RING FUEL LINE TO FEED PUMP
999
FILLER CAP , Replaced By: A0004700305
999
FUEL STRAINER FUEL TANK,K 169123
999
SENDER UNIT , NOT USED
