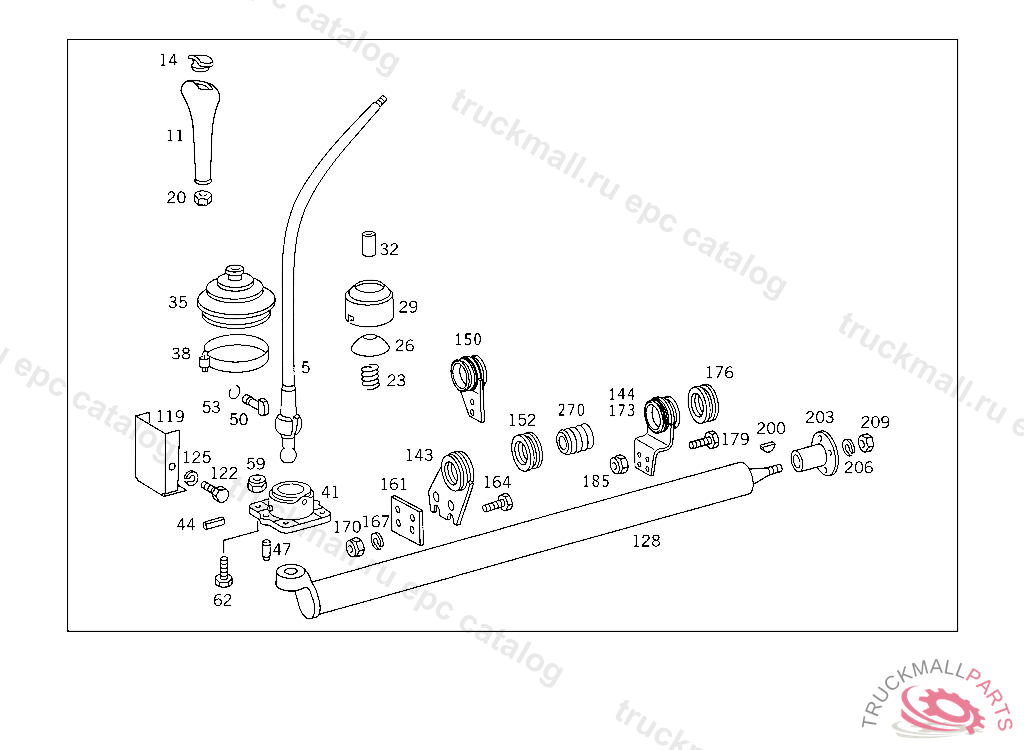

Поз.
Артикул
Описание
5
SHIFT LEVER
11
KNOB (SHIFT LEVER HANDLE), NO.8650I.......I I I II .......INO.9985I I I II I
14
COVER 1ST THRU 5TH SPEED,REVERSE SPEED
20
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
23
SPRING SHIFT CASE,BOTTOM
26
SPHERICAL PIECE GEARSHIFT LEVER LOWER PART,D 203092
29
COVER SHIFTING DOME TO TRANSMISSION CASE,TOP
29
COVER
32
HOSE
35
GUMMISCHUSSKAPPE. BOOT SHIFT LEVER
38
LOOM TIE500X8 MM
38
LOOM TIE ELECTRIC CABLE MOUNTING
38
LOOM TIE BOOT TO SHIFTING ROD 500MM
41
TRANSMISSION CASE COVER , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
44
GROOVED PIN SHIFTING DOME,4 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
47
CYLINDRICAL PIN ,A 057455, 341.023,027,032,034,036,038,041,042,043,044,045 FROM IDENT NO. A 057456 SEE SPARE PARTS LIST 713.0, MF 859A 077314, 341.116 FROM IDENT NO. A 077315 SEE SPARE PARTS LIST 713.0, MF 859
50
SLIDING BLOCK , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
50
SLIDING BLOCK
53
SNAP RING , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
59
NUT BRACKET TO SIDE MEMBER
62
SCREW LINES TO BRACKET
119
BEARING COVER
122
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
125
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
128
SHIFTING ROD
143
GUIDE SHIFTING TUBE
144
GUIDE SHIFTING TUBE
150
GUIDE
152
BUSHING
161
BRACKET SHIFTING TUBE
164
SCREW LINES TO BRACKET
164
SCREW POWER CYLINDER TO BEARING BRACKET
167
LOCK WASHER RAIL TO BATTERY SUPPORT
170
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
176
BUSHING
179
SCREW , Replaced By: A4609900601
185
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
200
WOODRUFF KEY FLANGE TO SHIFTING TUBE
203
CONNECTOR FLANGE TO SHIFTING TUBE
206
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
209
NUT FUEL TANK TO SUPPORT
270
BOOT SHIFTING ROD BEARING NO. 3+4
