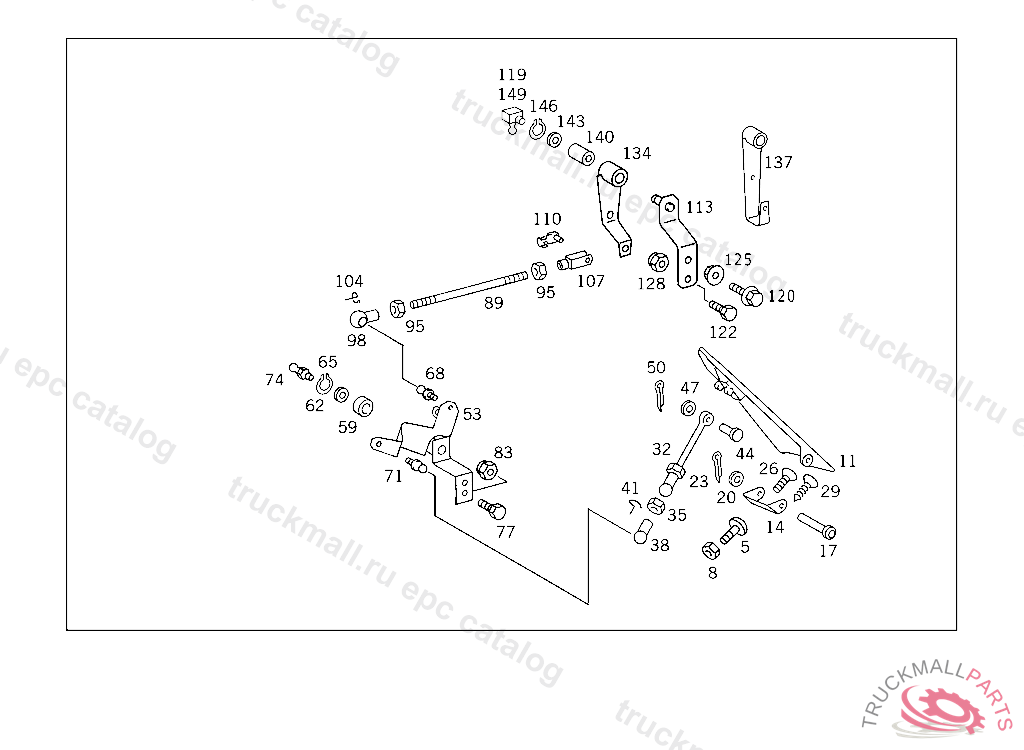

Поз.
Артикул
Описание
5
STOP
5
STOP
8
NUT ,B 884219
11
PEDAL PLATE ACCELERATOR PEDAL
14
ARTICULATION PIECE ACCELERATOR PEDAL
17
PIN ACCELERATOR PEDAL TO JOINT
20
WASHER GROUND CABLE
23
COTTER PIN STRAP TO BRACKET
26
SCREW ARTICULATION ELEMENT TO FLOOR M8X20,D 209703
32
ROD ACCELERATOR PEDAL TO LEVER 151 MM,D 351515
32
ROD FROM ACCELERATOR PEDAL TO CONTROL LEVER
35
NUT BATTERY CASE
38
BALL SOCKET ROD TO BALL PIVOT
41
SECURING CLIP. CIRCLIP
44
PIN ROD TO PEDAL PLATE
47
WASHER6,4
50
COTTER PIN ROLLER TO LEVER
53
LEVER BRACKET
59
BUSHING , USED WITH AIR BRAKE
62
FITTED WASHER , USED WITH AIR BRAKE
65
LOCK RING PIN TO BEARING BRACKET, 380.017,080,081,180,181 ONLY FOR SHORT CAB MERCEDES-BENZ
68
BALL PIVOT
71
BALL PIVOT
74
GREASE NIPPLE
74
GREASE NIPPLE PROTECTIVE TUBE
89
PULL ROD FROM REVERSING LEVER TO CONTROL LEVER 6X670X30/30
95
NUT
98
BALL SOCKET FROM REVERSING LEVER TO CONTROL LEVER
104
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
107
YOKE FROM REVERSING LEVER TO CONTROL LEVER
110
PIN OPERATING ROD TO BRACKET
113
BRACKET AT LEFT SIDE MEMBER
119
GREASE NIPPLE
120
HEXAGON HEAD BOLT. SCREW CABLE HARNESS TO BRACKET M8X40
122
SCREW BRACKET TO SIDE MEMBER M10X30
125
HEXAGON NUT. NUT , Replaced By: N913023008002
128
NUT BRACKET TO SIDE MEMBER,XB209706
137
LEVER ACCELERATOR PEDAL CONTROL
140
BUSHING , USED WITH AIR BRAKE
143
FITTED WASHER , USED WITH AIR BRAKE
146
LOCK RING PIN TO BEARING BRACKET, 380.017,080,081,180,181 ONLY FOR SHORT CAB MERCEDES-BENZ
