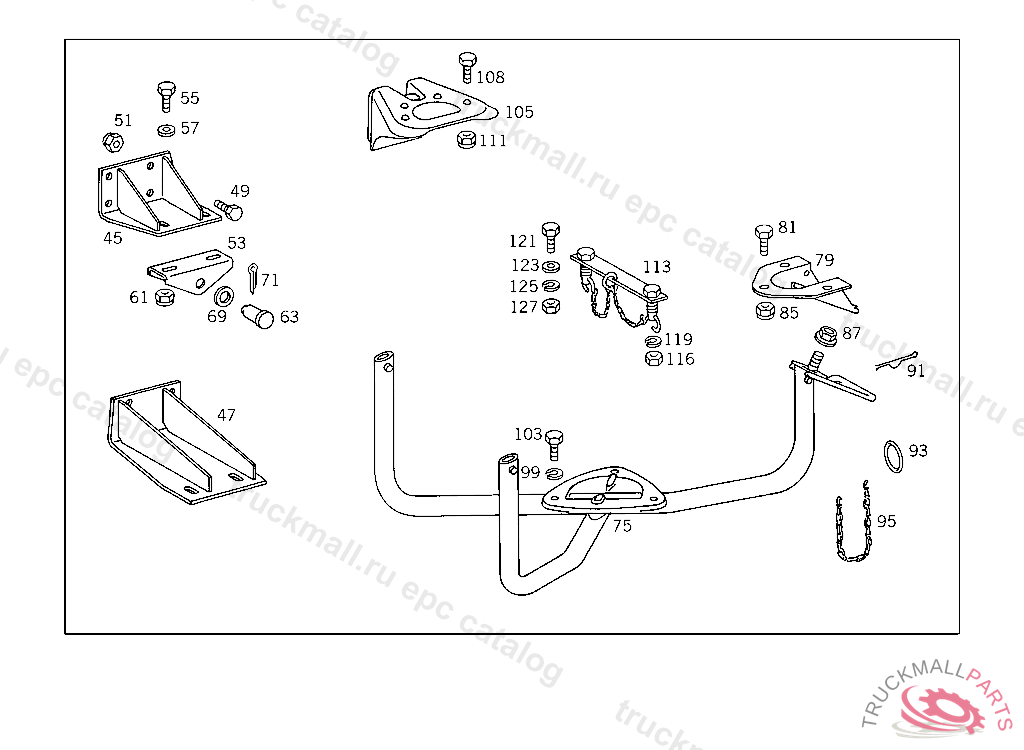

Поз.
Артикул
Описание
45
BRACKET SPARE WHEEL MOUNTING,869942
47
BRACKET SPARE WHEEL MOUNTING,869942
53
BEARING BRACKET ,869942
55
SCREW , Replaced By: N304017010002
55
SCREW BRACKET TO SIDE MEMBER
57
WASHER , Replaced By: N000125010532
57
WASHER RADIATOR TO RUBBER MOUNTING
61
NUT AIR CLEANER ELEMENT
63
PIN SPARE WHEEL CARRIER TO SUBSTRUCTURE, 314.051-060 695199-711613 FOR USE WITH MERCEDES-BENZ PLATFORM 314.081-083 695199-711613
63
PIN SPARE WHEEL TO BRACKET,869942
69
WASHER , Replaced By: N000125017016
69
WASHER BRACKET TO FRAME
71
COTTER PINROCKINGER TYP 260 G140
75
BRACKET SPARE WHEEL
79
BRACKET SPARE WHEEL,869942
81
SCREW END PIECE TO EXHAUST PIPE M 10X25
85
NUT AIR CLEANER ELEMENT
87
NUT BRACKET TO CONSOLE, 314.051-060 695199-869828 FOR USE WITH MERCEDES-BENZ PLATFORM 314.081-083 695199-869828
91
LOCK SPARE WHEEL MOUNTING,007586-179227
93
RING
95
CHAIN BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
99
LOCK WASHER. SPRING LOCK WASHER DISC WHEELS TO FRONT AND REAR AXLES, Replaced By: N000000006796
103
SCREW BEARING BRACKET TO AXLE
105
BRACKET SPARE WHEEL CARRIER,869829-869942
108
SCREW END PIECE TO EXHAUST PIPE M 10X25
111
NUT , Replaced By: N910113010000
111
NUT STRAP TO BRACKET
113
BRACKET SPARE WHEEL MOUNTING,869829-869942
116
NUT , Replaced By: N308673016001
116
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
119
LOCK WASHERROCKINGER TYP 59 G140,59 G150
999
BRACKET ,695199-711613, Replaced By: A3184000939, +001A3184030103, +004N000125010513, +002N000933010047, +002N913002010000
999
HUB CAP , PLASTIC VERSION, Replaced By: A3184000125
999
BALANCING WEIGHT150 G.,4 187708
999
BALANCING WEIGHT100GR.
999
BALANCING WEIGHT 50 DEGREES
