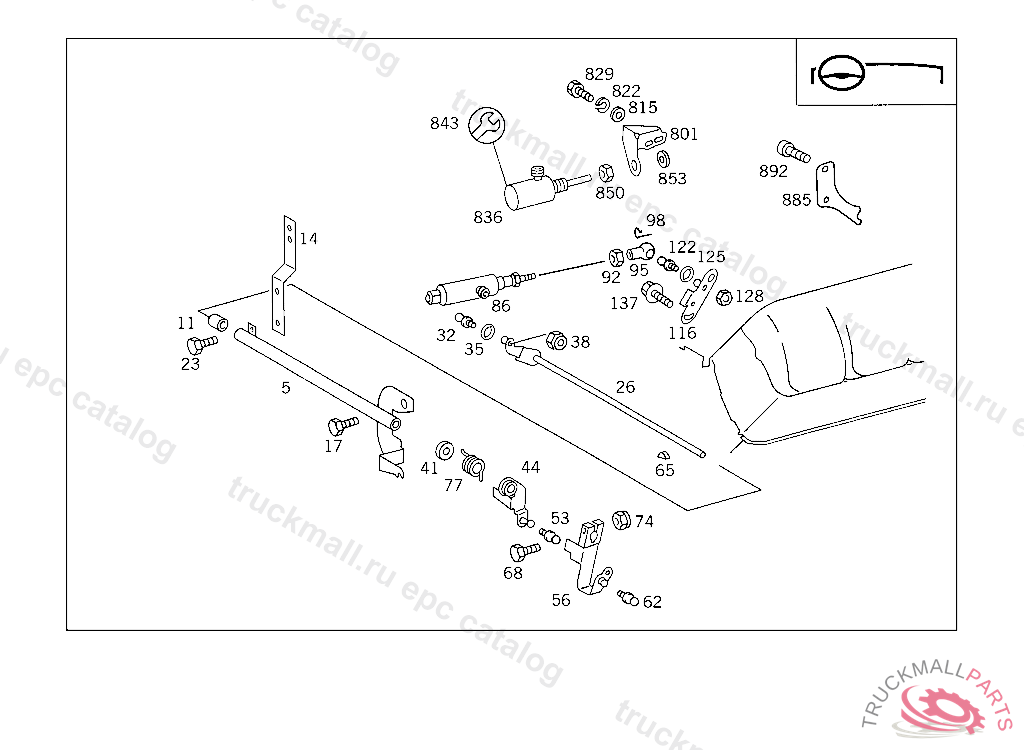

Поз.
Артикул
Описание
5
BEARING TUBE
11
BUSHING MOUNTING
14
BRACKET DELIVERY AND SUCTION LINES TO ENGINE
14
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 851054, Replaced By: A6554601335
17
SCREW BRACKET TO SUPPORT M 16X20
23
SCREWM 10X20
26
SHAFT ,460462
32
BALL PIVOT
35
SEAL RING MODULATION PRESSURE CONTROL
38
NUT HEATING PIPE TO BRACKET
41
COVERING
44
LEVER
53
BALL PIVOT LEVER
53
BALL PIVOT , Replaced By: A3129910120
56
LEVER CONTROL SHAFT
62
BALL PIVOT
65
WOODRUFF KEY
68
HEXAGON HEAD BOLT. SCREW STARTER SWITCH TO STEERING COLUMN JACKET TUBE
74
NUT HEATING PIPE TO BRACKET
77
SPRING CONTROL SHAFT LEVER ASSEMBLY TO CONTROL SHAFT
86
CYLINDER INJECTION PUMP CONTROL
86
CYLINDER , Replaced By: A0000721512
92
NUT , Replaced By: A0009900851
92
NUT
95
BALL SOCKET
98
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
116
LEVER LOAD CONTROL, TO BE ADAPTED DURING ASSEMBLY
122
BALL PIVOT
125
SEAL RING MODULATION PRESSURE CONTROL
128
NUT HEATING PIPE TO BRACKET
137
HEXAGON HEAD BOLT
801
BRACKET CYLINDER,734141
815
WASHER COMPRESSED AIR LINE TO BRACKET
815
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
829
SCREW WIPER BEARING
829
SCREW BRACKET ON LOAD SENSOR
836
CYLINDER TORQUE REDUCER BOSCH
843
REPAIR KITTO 000 070 17 83
850
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
